NSN 5355-00-538-7548 KB55911365, KB55-9113-65, KB55911365RAC
Product Details | DIAL WINDOW
5355-00-538-7548 A piece of transparent material specifically designed to be placed directly in front of a dial or scale to protect it from foreign matter. It is cut to size and may include a frame. It may have an index line or other marking. See also WINDOW, OBSERVATION; and DIAL, SCALE.
Part Alternates: KB55911365, KB55-9113-65, KB55911365RAC, KB55-9113-65RAC, KF55911350REVBPC21, KF55-9113-50REVBPC21, 3277344REVBPC21, 5355-00-538-7548, 00-538-7548, 5355005387548, 005387548
Hardware and Abrasives | Knobs and Pointers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-538-7548 | 08194 ( WINDOW, DIAL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5355-00-538-7548
Related Products | NSN 5355-00-538-7548
Technical Data | NSN 5355-00-538-7548
Characteristic | Specifications |
---|---|
MATERIAL | GLASS |

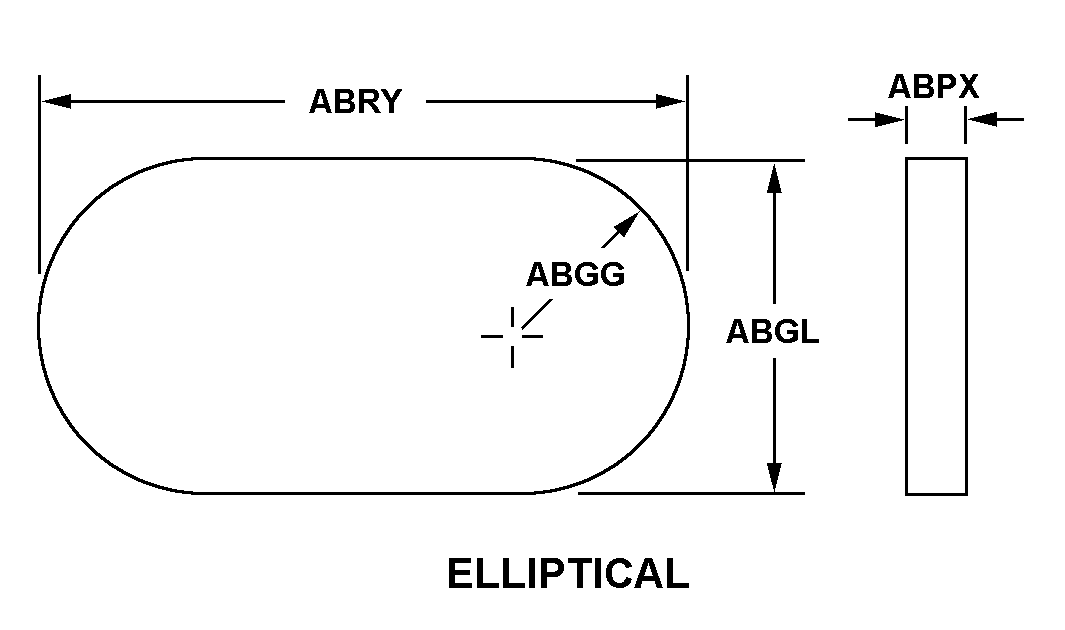

STYLE DESIGNATOR | A174 ELLIPTICAL |
RADIUS | 0.719 INCHES MINIMUM AND 0.781 INCHES MAXIMUM |
WIDTH | 2.719 INCHES MINIMUM AND 2.781 INCHES MAXIMUM |
MATERIAL THICKNESS | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
LENGTH | 4.969 INCHES MINIMUM AND 5.031 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5355-00-538-7548
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 5355-00-538-7548
Category | Code | Description |
---|---|---|
Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
