NSN 5355-00-532-1507 5321507, 00-532-1507, 005321507
Product Details | SCALE DIAL
5355-00-532-1507 A dial designed to be read in conjunction with a vernier indicator, pointer(s) or like instruments, which device is not an integral part of the item. The item does not have facilities for connection to a tuning or selection mechanism to position the mechanism. However, it may be designed to be mounted on a knob used to position the mechanism. Excludes SCALEPLATE, ELECTRICAL METER. See also DIAL, CONTROL.
Part Alternates: 5321507, 5355-00-532-1507, 00-532-1507, 5355005321507, 005321507
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-532-1507 | 03264 ( DIAL, SCALE ) |
Drawings & Photos | NSN 5355-00-532-1507
Cross Reference | NSN 5355-00-532-1507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5321507 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-532-1507
Technical Data | NSN 5355-00-532-1507
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY DIAL |

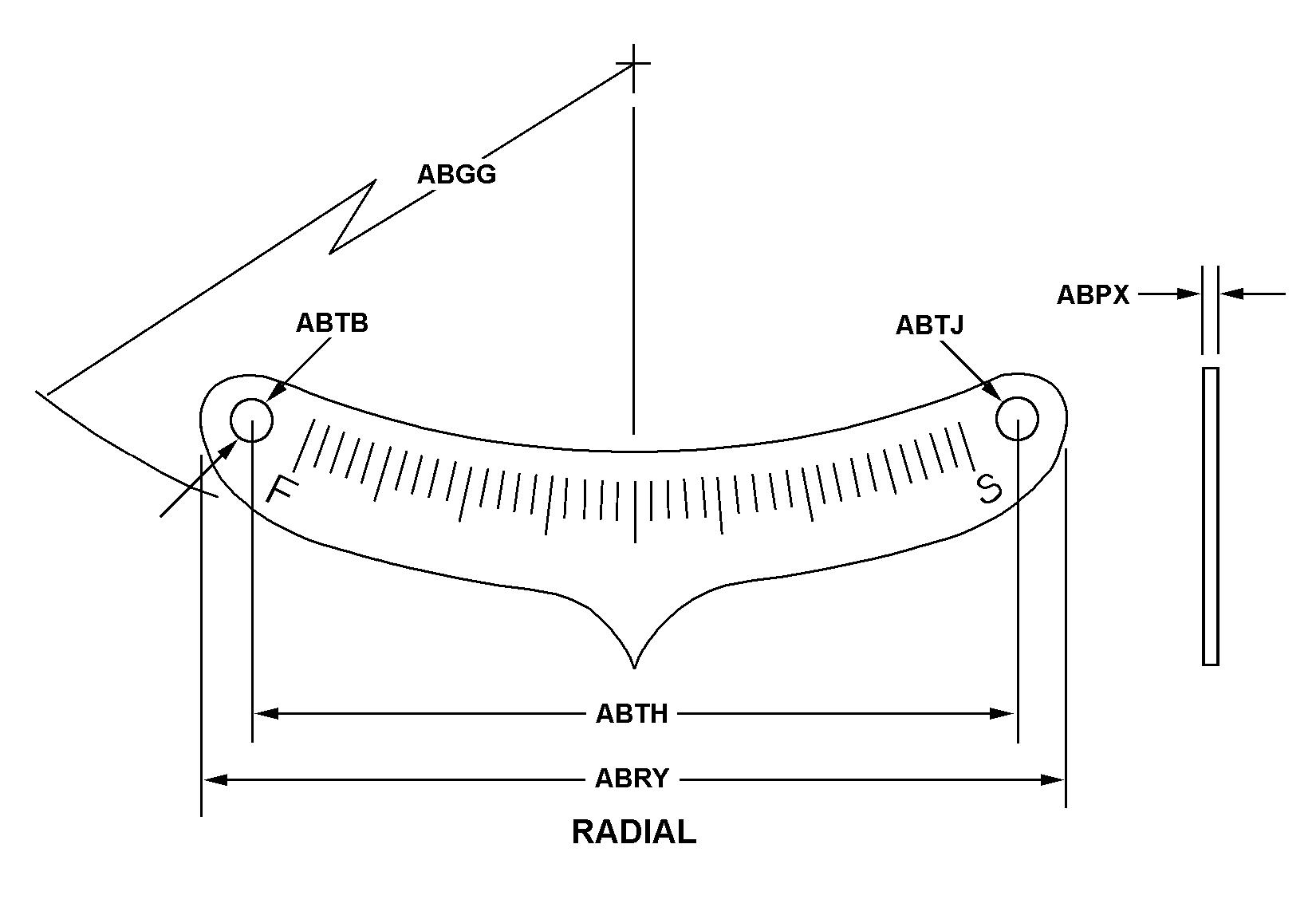

| STYLE DESIGNATOR | A97 RADIAL |
| MATERIAL THICKNESS | 0.064 INCHES NOMINAL |
| LENGTH | 1.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.625 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| SCALE DIRECTION AND RANGE | 20 TO 0 LEFT TO RIGHT AND 0 TO 20 LEFT TO RIGHT SINGLE SCALE |
| SCALE TYPE | LINEAR SINGLE SCALE |
| SCALE DIVISION QUANTITY | 9 SINGLE SCALE |
| SPECIAL FEATURES | MTG HOLES SLOTTED 0.140 IN. W X 0.250 IN. LONG; ATTACHMENT METHOD: SLOT |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 5321507 |
Restrictions/Controls & Freight Information | NSN 5355-00-532-1507
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5355-00-532-1507
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
