NSN 5355-00-526-1663 NAS1553B3D4SG, 00-526-1663, 005261663
Product Details | KNOB
5355-00-526-1663 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: NAS1553B3D4SG, 5355-00-526-1663, 00-526-1663, 5355005261663, 005261663
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 AUG 1974 | 00-526-1663 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-00-526-1663
Demand History | NSN 5355-00-526-1663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-00-526-1663 | 2023-04-103 | 2 | DIBBS |
Cross Reference | NSN 5355-00-526-1663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1553B3D4SG | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-526-1663
Technical Data | NSN 5355-00-526-1663
| Characteristic | Specifications |
|---|---|

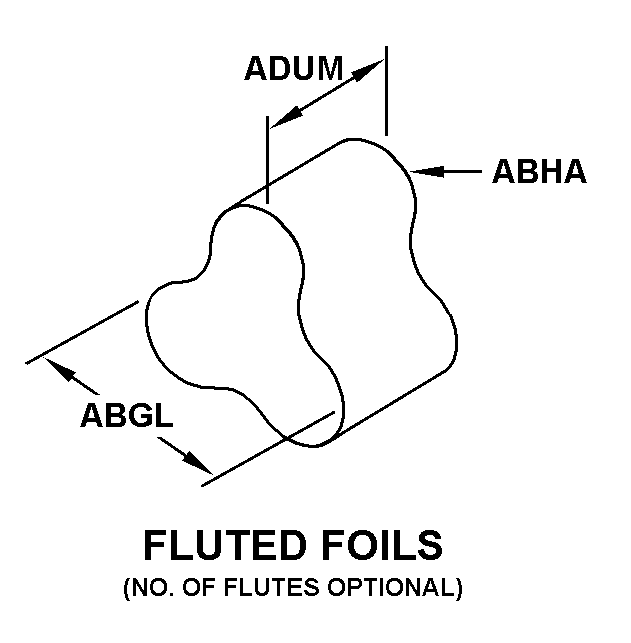

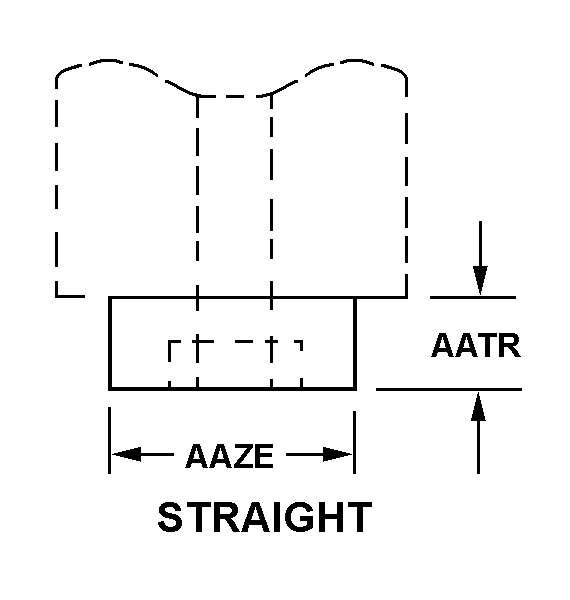

| STYLE DESIGNATOR | A16 FLUTED FOILS |
| WIDTH | 1.375 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| OVERALL THICKNESS | 1.125 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| FLUTED FOIL QUANTITY | 6 |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 1 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.293 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF SCREW HOLE |
| NOMINAL THREAD SIZE | 0.190 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E9 ROUND |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL DEPTH | 0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| SHANK STYLE | G1 STRAIGHT |
| SHANK LENGTH | 0.750 INCHES NOMINAL |
| SHANK DIAMETER | 0.563 INCHES MINIMUM AND 0.813 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 356.0 |
| SPECIAL FEATURES | THREADED BORE 0.250-28 UNF |
| SPECIFICATION/STANDARD DATA | 80205-NAS1553 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) SURFACE LUSTER | MATTE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601,CLASS 3M,T6 FED SPEC SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) SURFACE TREATMENT | ANODIZE |
Restrictions/Controls & Freight Information | NSN 5355-00-526-1663
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
