Product Details | PANEL BUSHING-SHAFT

5355-00-392-0343 A straight fitting with wrenching facilities on one end, external machine threads on the other end and a through hole bearing surface into which is assembled a Shaft (1), designed to transmit motion through a panel to items such as variable resistors, variable capacitors, and the like, mounted away from the panel. May include coupling devices.

Part Alternates: 52772, 5355-00-392-0343, 00-392-0343, 5355003920343, 003920343

Hardware and Abrasives | Knobs and Pointers

Supply Group (FSG) NSN Assign. NIIN
53 28 MAR 1974 00-392-0343

Drawings & Photos | NSN 5355-00-392-0343


Cross Reference | NSN 5355-00-392-0343

Part Number Cage Code Manufacturer
52772 09017 EDO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5355-00-392-0343

Technical Data | NSN 5355-00-392-0343

Characteristic Specifications

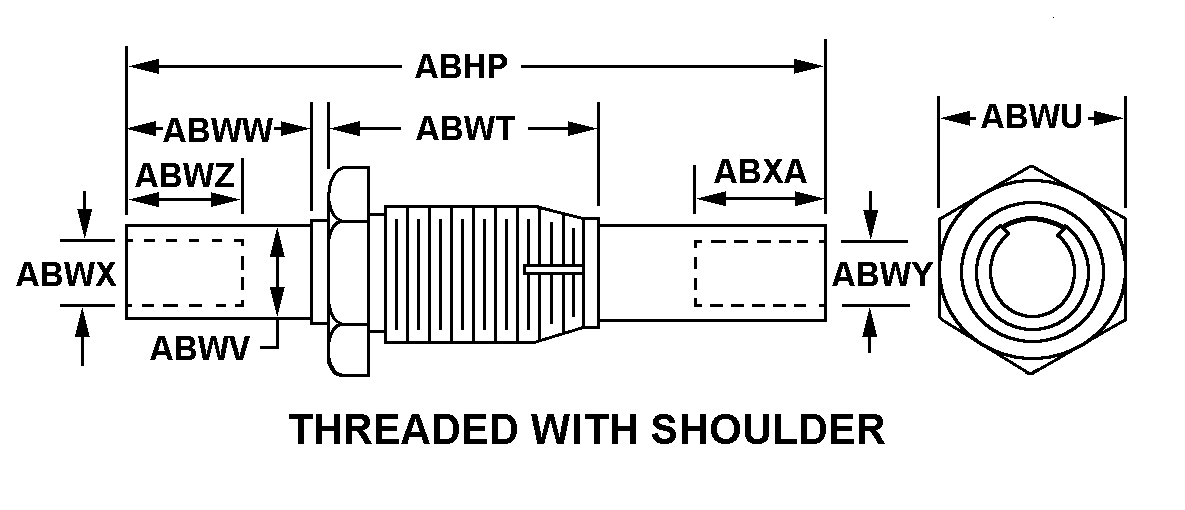

STYLE DESIGNATOR A181 THREADED WITH SHOULDER
OVERALL LENGTH 1.312 INCHES NOMINAL
SHAFT DIAMETER 0.250 INCHES NOMINAL
REAR SHAFT EXTENSION LENGTH 0.453 INCHES NOMINAL
MANUFACTURERS CODE 09017
DESIGN CONTROL REFERENCE 52772

Restrictions/Controls & Freight Information | NSN 5355-00-392-0343

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 115620 BUSHINGS NOI I/S
Less than car load rating
Less than truck load rating R 65.0
Water commodity Code 713 unknown
Originating Activity Code HD Naval Inventory Control Point
Mechanicsburg, PA 17055-0788
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5355-00-392-0343

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
