Product Details | SCALE DIAL

5355-00-376-9379 A dial designed to be read in conjunction with a vernier indicator, pointer(s) or like instruments, which device is not an integral part of the item. The item does not have facilities for connection to a tuning or selection mechanism to position the mechanism. However, it may be designed to be mounted on a knob used to position the mechanism. Excludes SCALEPLATE, ELECTRICAL METER. See also DIAL, CONTROL.

Part Alternates: SMC152742, 847712, 5355-00-376-9379, 00-376-9379, 5355003769379, 003769379

Hardware and Abrasives | Knobs and Pointers

Supply Group (FSG) NSN Assign. NIIN
53 00-376-9379

Drawings & Photos | NSN 5355-00-376-9379


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5355-00-376-9379

Technical Data | NSN 5355-00-376-9379

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2024 DIAL
SURFACE TREATMENT PAINT DIAL

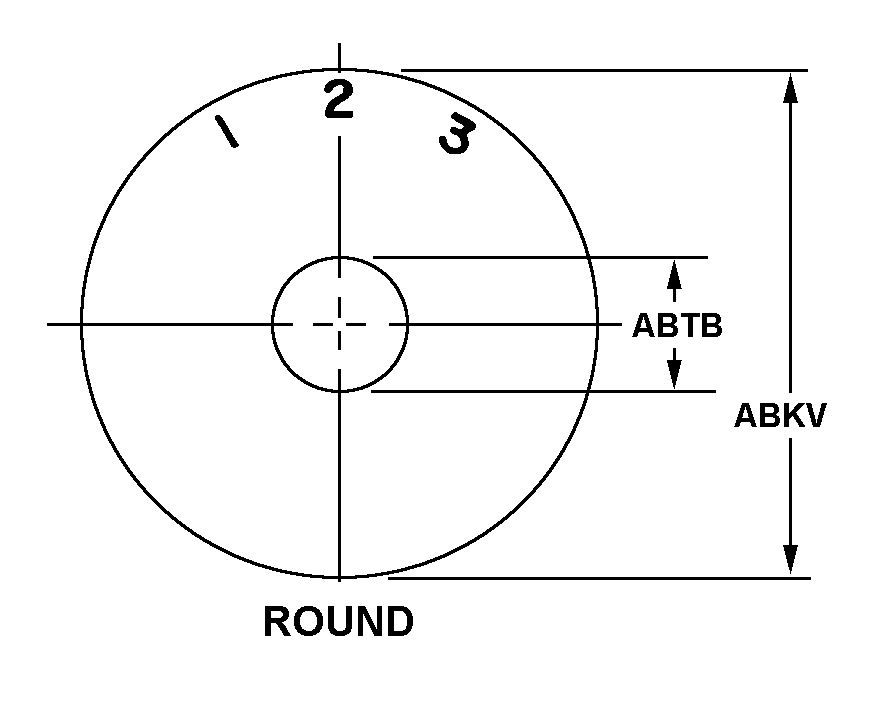

STYLE DESIGNATOR A94 ROUND
OUTSIDE DIAMETER 2.500 INCHES NOMINAL
MOUNTING HOLE DIAMETER 0.875 INCHES NOMINAL
ATTACHMENT METHOD HOLE
SCALE DIRECTION AND RANGE 0 TO 48 CLOCKWISE SINGLE SCALE
SCALE TYPE LINEAR SINGLE SCALE
SCALE DIVISION QUANTITY 50 SINGLE SCALE
(NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-V-173 MIL SPEC SINGLE TREATMENT RESPONSE
(NON-CORE DATA) SCALE DISTANCE AND TYPE 7.854 INCHES CIRCULAR
MANUFACTURERS CODE 56232
DESIGN CONTROL REFERENCE 847712

Restrictions/Controls & Freight Information | NSN 5355-00-376-9379

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
