NSN 5355-00-001-2403 5400090025, 54000-90025, 00-001-2403
Product Details | DIAL WINDOW
5355-00-001-2403 A piece of transparent material specifically designed to be placed directly in front of a dial or scale to protect it from foreign matter. It is cut to size and may include a frame. It may have an index line or other marking. See also WINDOW, OBSERVATION; and DIAL, SCALE.
Part Alternates: 5400090025, 54000-90025, 5355-00-001-2403, 00-001-2403, 5355000012403, 000012403
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 SEP 1972 | 00-001-2403 | 08194 ( WINDOW, DIAL ) |
Drawings & Photos | NSN 5355-00-001-2403
Cross Reference | NSN 5355-00-001-2403
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54000-90025 | 97384 | AAI CORPORATION DBA TEXTRON SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5355-00-001-2403
Related Products | NSN 5355-00-001-2403
Technical Data | NSN 5355-00-001-2403
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC ACRYLIC |

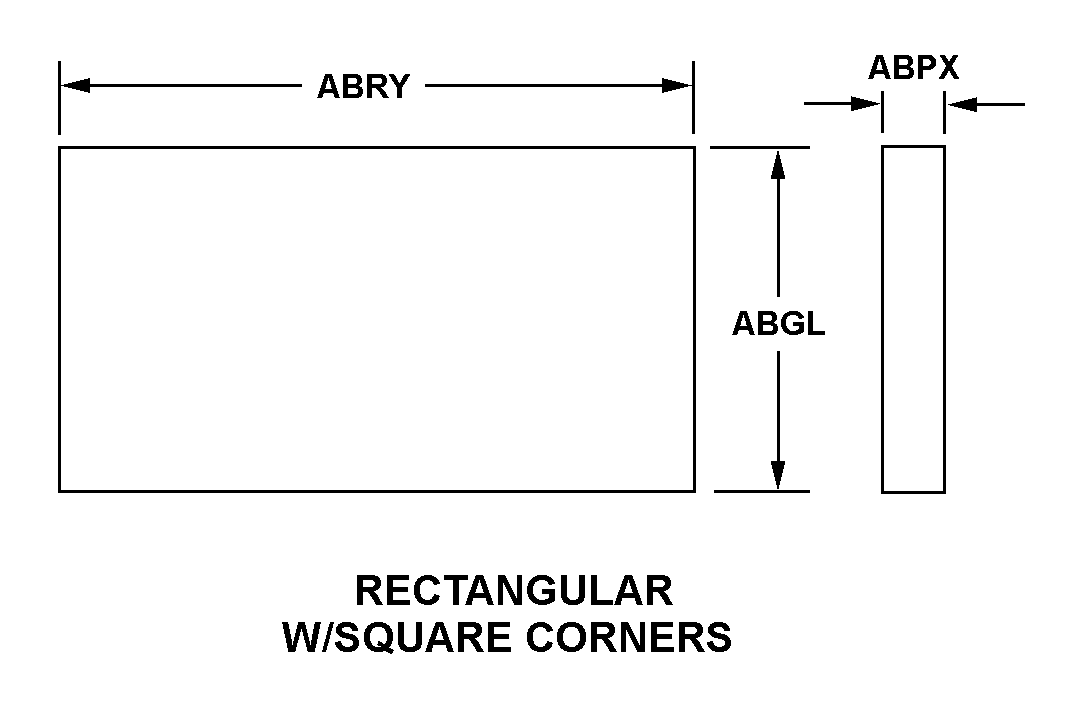

| STYLE DESIGNATOR | A178 RECTANGULAR W/SQUARE CORNERS |
| WIDTH | 1.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| LENGTH | 4.000 INCHES NOMINAL |
| COLOR | RED |
| ATTACHMENT METHOD | CENTER HOLE |
| MATERIAL TRANSPARENCY | CLEAR |
| SPECIAL FEATURES | COVERS A DIGITAL READOUT; AN ELECTRICALLY CONDUCTIVE FILM IS DEPOSITED ON VIEWING PORTION OF WINDOW FOR EMI/RFI SHIELDING; OPERATING TEMPERATURE RANGE: MINUS 40.0 DEG C MINIMUM AND PLUS 71.0 DEG C MAXIMUM |
| END ITEM IDENTIFICATION | 6625004022995 TEST SET,RADAR |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-5425 MIL SPEC SINGLE MATERIAL RESPONSE |
| MANUFACTURERS CODE | 97384 |
| DESIGN CONTROL REFERENCE | 54000-90025 |
Restrictions/Controls & Freight Information | NSN 5355-00-001-2403
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 086700 | GLASS,FLAT,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-001-2403
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QC | TG:ELECTRICAL AND ELECTRONIC PROPERTIES MEASURING AND TESTING |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
