NSN 5345-01-013-9040 AA1016, A-A-1016, ANSI B74.18
Product Details | ABRASIVE DISK
5345-01-013-9040 A flat, circular, flexible or semiflexible abrasive coated material, with or without center hole.20253450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies
Part Alternates: AA1016, A-A-1016, ANSI B74.18, ANSIB7418, PD455, P-D-455, 5345-01-013-9040, 01-013-9040, 5345010139040, 010139040
Hardware and Abrasives | Disks and Stones, Abrasive
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 DEC 1975 | 01-013-9040 | 02612 ( DISK, ABRASIVE ) |
Drawings & Photos | NSN 5345-01-013-9040
Demand History | NSN 5345-01-013-9040
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ANSIB7418 | 2021-04-104 | 1 | AE |
| ANSIB7418 | 2020-11-316 | 1 | United States |
| ANSIB7418 | 2020-08-244 | 3 | US |
| ANSIB7418 | 2020-05-135 | 1 | BN |
| ANSIB7418 | 2020-05-134 | 1 | United States |
| ANSIB7418 | 2020-03-91 | 3 | MX |
| ANSIB7418 | 2020-01-22 | 2 | AE |
| ANSIB7418 | 2018-05-134 | 1 | United States |
| PD455 | 2017-10-276 | 110 | SA |
| AA1016 | 2017-09-264 | 20 | Saudi Arabia |
| ANSIB7418 | 2017-07-188 | 1 | US |
| ANSIB7418 | 2017-05-137 | 100 | Singapore |
| ANSIB7418 | 2015-08-231 | 1 | Malaysia |
| ANSIB7418 | 2014-08-227 | 1 | CH |
| ANSIB7418 | 2013-11-329 | 1 | MX |
| ANSI B74.18 | 2013-07-190 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5345-01-013-9040
Related Products | NSN 5345-01-013-9040
Technical Data | NSN 5345-01-013-9040
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| SCREEN GRIT SIZE DESIGNATOR | 24 |
| ABRASIVE DISK TYPE | PLAIN SLOTTED |
| ABRASIVE DISK SLOT QUANTITY | 4 |
| ABRASIVE DISK SLOT LENGTH | 0.500 INCHES NOMINAL |
| USAGE DESIGN | METAL WORKING |
| BACKING MATERIAL | FIBER, VULCANIZED |
| WATERPROOF FEATURE | NOT INCLUDED |
| ADHESIVE BACKING | NOT INCLUDED |
| BACKING ABRASIVE COATING TYPE | CLOSED |
| MOUNTING METHOD | ARBOR HOLE |

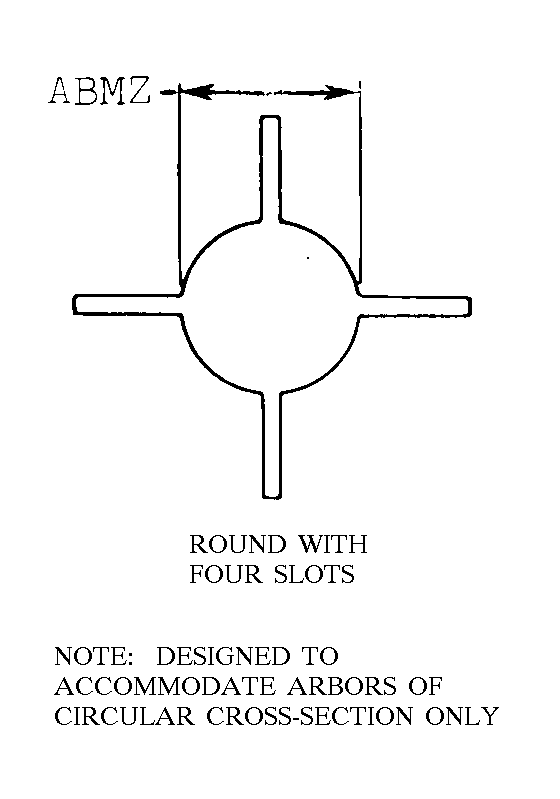

| MOUNTING OPENING SHAPE STYLE | 9 ROUND WITH FOUR SLOTS |
| DIAMETER | 0.625 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY 1/2 IN. SLOTS |
Restrictions/Controls & Freight Information | NSN 5345-01-013-9040
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5345-01-013-9040
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q BX : Box |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q BX : Box |
