NSN 5345-00-881-3998 PD455, 00-881-3998, 008813998
Product Details | ABRASIVE DISK
5345-00-881-3998 A flat, circular, flexible or semiflexible abrasive coated material, with or without center hole.20253450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies
Part Alternates: PD455, 5345-00-881-3998, 00-881-3998, 5345008813998, 008813998
Hardware and Abrasives | Disks and Stones, Abrasive
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-881-3998 | 02612 ( DISK, ABRASIVE ) |
Drawings & Photos | NSN 5345-00-881-3998
Demand History | NSN 5345-00-881-3998
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PD455 | 2017-10-276 | 110 | SA |
Cross Reference | NSN 5345-00-881-3998
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PD455 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5345-00-881-3998
Technical Data | NSN 5345-00-881-3998
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| SCREEN GRIT SIZE DESIGNATOR | 180 |
| ABRASIVE DISK TYPE | PLAIN FLAT |
| USAGE DESIGN | METAL WORKING |
| BACKING MATERIAL | FIBER, VULCANIZED AND DRILL CLOTH |
| WATERPROOF FEATURE | NOT INCLUDED |
| ADHESIVE BACKING | INCLUDED |
| BACKING ABRASIVE COATING TYPE | CLOSED |
| MOUNTING METHOD | ARBOR HOLE |

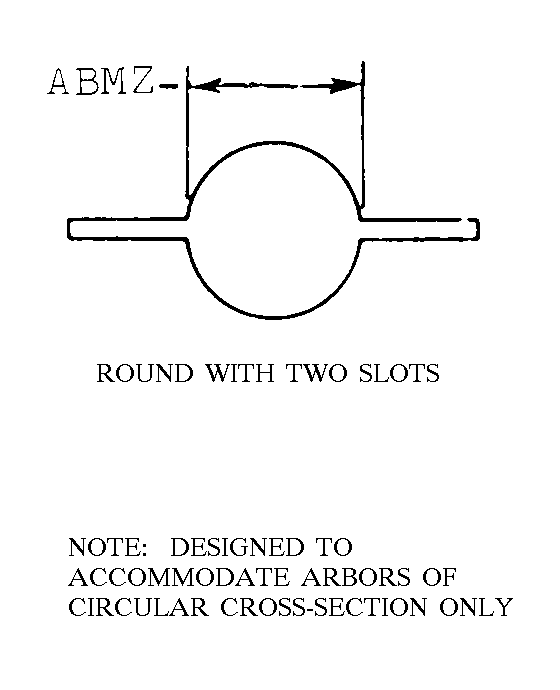

| MOUNTING OPENING SHAPE STYLE | 10 ROUND WITH TWO SLOTS |
| DIAMETER | 0.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 CLASS |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY OUTSIDE DIA AND ARBOR HOLE DIA |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | PD455 |
Restrictions/Controls & Freight Information | NSN 5345-00-881-3998
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
