NSN 5345-00-685-4347 80315C, 80-315C, 00-685-4347
Product Details | COMMUTATOR SURFACING STONE
5345-00-685-4347 A shaped piece of synthetic nonconducting abrasive, designed for cleaning and truing up slip ring and commutator surfaces. May be mounted on a nonmetallic handle. Excludes STONE, ELECTRICAL CONTACT BRUSH SEATER.
Part Alternates: 80315C, 80-315C, 5345-00-685-4347, 00-685-4347, 5345006854347, 006854347
Hardware and Abrasives | Disks and Stones, Abrasive
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-685-4347 | 16918 ( STONE, COMMUTATOR SURFACING ) |
Drawings & Photos | NSN 5345-00-685-4347
Cross Reference | NSN 5345-00-685-4347
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80-315C | 30119 | IDEAL INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5345-00-685-4347
Technical Data | NSN 5345-00-685-4347
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ANY ACCEPTABLE |
| FLINT/EMERY SIMPLIFIED GRADE DESIGNATOR | COARSE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |

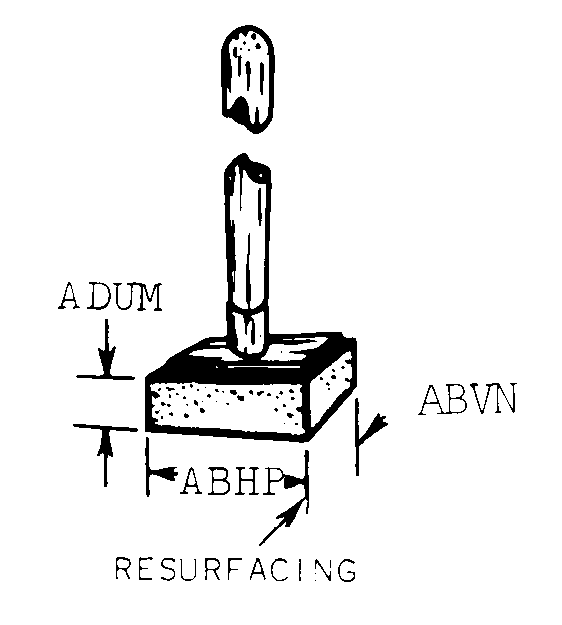

| STONE STYLE | 65 RESURFACING |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| OVERALL THICKNESS | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5345-00-685-4347
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
