Product Details | SHARPENING STONE

5345-00-584-4696 A piece of abrasive of any shape designed to be held in the hand or to remain stationary while the item to be sharpened is moved against it or the piece of abrasive is moved against the item.20353450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies

Part Alternates: A255M0, SSS736, SS-S-736, SS-S-736 TY2ST12CLA-1, SSS736TY2ST12CLA1, MIL24, 5345-00-584-4696, 00-584-4696, 5345005844696, 005844696

Hardware and Abrasives | Disks and Stones, Abrasive

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-584-4696

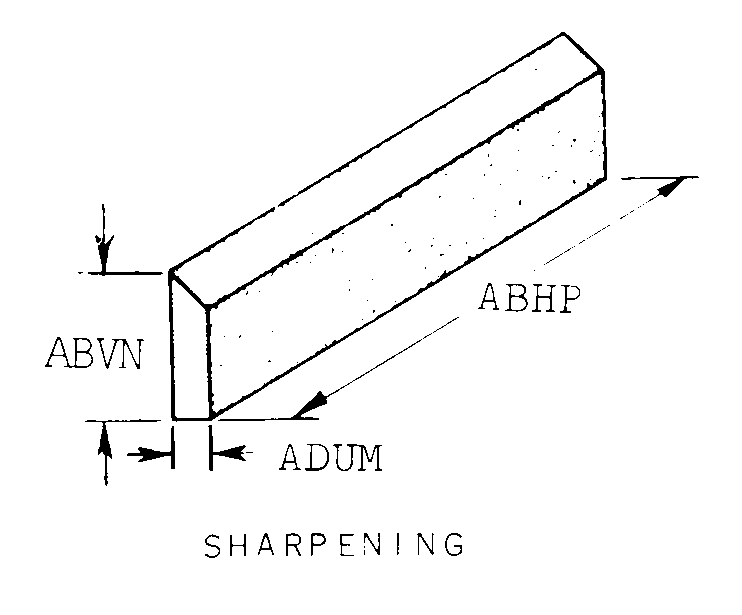

Drawings & Photos | NSN 5345-00-584-4696


Demand History | NSN 5345-00-584-4696

Part Number Request Date QTY Origin
SSS736 2014-01-29 1 UK

Cross Reference | NSN 5345-00-584-4696

Part Number Cage Code Manufacturer
A255M0 70752 TYROLIT WICKMAN INC
MIL24 06565 NORTON CO COATED ABRASIVE DIV
SS-S-736 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
SS-S-736 TY2ST12CLA-1 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5345-00-584-4696

Technical Data | NSN 5345-00-584-4696

Characteristic Specifications
ABRASIVE MATERIAL ALUMINUM OXIDE
FLINT/EMERY SIMPLIFIED GRADE DESIGNATOR MEDIUM
OVERALL LENGTH 4.500 INCHES NOMINAL
STONE STYLE 25 SHARPENING
OVERALL WIDTH 1.000 INCHES NOMINAL
OVERALL THICKNESS 0.312 INCHES NOMINAL
OIL IMPREGNATION FEATURE INCLUDED
CASE MOUNTED NOT INCLUDED

Restrictions/Controls & Freight Information | NSN 5345-00-584-4696

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186840 TOOLS:WHETSTONES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5345-00-584-4696

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
