NSN 5345-00-270-6920 MILS17243CLASSFSTYLEF8, 00-270-6920, 002706920
Product Details | COMMUTATOR SURFACING STONE
5345-00-270-6920 A shaped piece of synthetic nonconducting abrasive, designed for cleaning and truing up slip ring and commutator surfaces. May be mounted on a nonmetallic handle. Excludes STONE, ELECTRICAL CONTACT BRUSH SEATER.
Part Alternates: MILS17243CLASSFSTYLEF8, 5345-00-270-6920, 00-270-6920, 5345002706920, 002706920
Hardware and Abrasives | Disks and Stones, Abrasive
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-270-6920 | 16918 ( STONE, COMMUTATOR SURFACING ) |

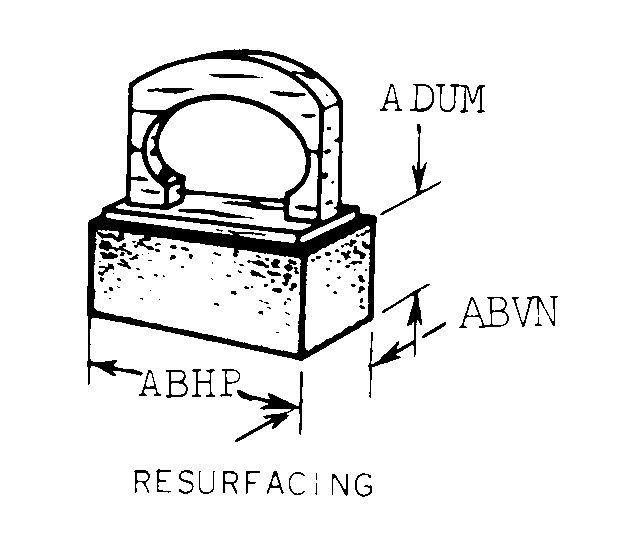

Drawings & Photos | NSN 5345-00-270-6920
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5345-00-270-6920
Technical Data | NSN 5345-00-270-6920
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| FLINT/EMERY SIMPLIFIED GRADE DESIGNATOR | FINE |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| STONE STYLE | 70 RESURFACING |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| OVERALL THICKNESS | 3.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | F3 STYLE AND F CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS17243CLASSFSTYLEF8 |
Restrictions/Controls & Freight Information | NSN 5345-00-270-6920
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186630 | TOOLS:NOI O/T PLSTC IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5345-00-270-6920
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
