NSN 5342-01-542-7554 14C2328C, 14C23-28C, 74580080275
Product Details | GROOVED CLAMP COUPLING
5342-01-542-7554 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 14C2328C, 14C23-28C, 74580080275, 74-580080-275, 5342-01-542-7554, 01-542-7554, 5342015427554, 015427554
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 2006 | 01-542-7554 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-01-542-7554
Demand History | NSN 5342-01-542-7554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14C23-28C | 2020-01-12 | 85 | DIBBS |
| 74-580080-275 | 2020-01-12 | 85 | DIBBS |
| 5342-01-542-7554 | 2019-09-255 | 44 | US |
| 14C23-28C | 2019-09-248 | 44 | DIBBS |
| 74-580080-275 | 2019-09-248 | 44 | DIBBS |
| 5342-01-542-7554 | 2018-12-345 | 35 | DIBBS |
| 5342-01-542-7554 | 2018-11-310 | 10 | DIBBS |
| 5342-01-542-7554 | 2018-08-231 | 5 | DIBBS |
| 5342-01-542-7554 | 2018-08-230 | 5 | DIBBS |
| 5342-01-542-7554 | 2016-05-138 | 9 | DIBBS |
| 5342-01-542-7554 | 2012-12-338 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-542-7554
Technical Data | NSN 5342-01-542-7554
| Characteristic | Specifications |
|---|---|

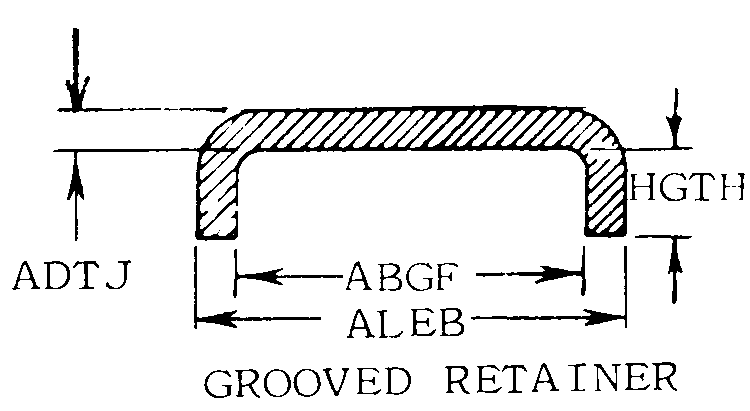

| CROSS-SECTIONAL SHAPE STYLE | 8A GROOVED RETAINER |
