NSN 5342-01-539-5233 GATD6, GA-TD6, 01-539-5233
Product Details | CORROSION PREVENTIVE ANODE
5342-01-539-5233 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: GATD6, GA-TD6, 5342-01-539-5233, 01-539-5233, 5342015395233, 015395233
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 APR 2006 | 01-539-5233 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5342-01-539-5233
Demand History | NSN 5342-01-539-5233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-539-5233 | 2017-05-129 | 70 | DIBBS |
| 5342-01-539-5233 | 2017-02-38 | 10 | DIBBS |
| 5342-01-539-5233 | 2016-12-341 | 10 | DIBBS |
| 5342-01-539-5233 | 2016-07-188 | 6 | DIBBS |
Cross Reference | NSN 5342-01-539-5233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GA-TD6 | 0SNJ9 | GALVOTEC ALLOYS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-539-5233
Related Products | NSN 5342-01-539-5233
Technical Data | NSN 5342-01-539-5233
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ZINC, MIL-A-18001 ANODE AND STEEL CORE |

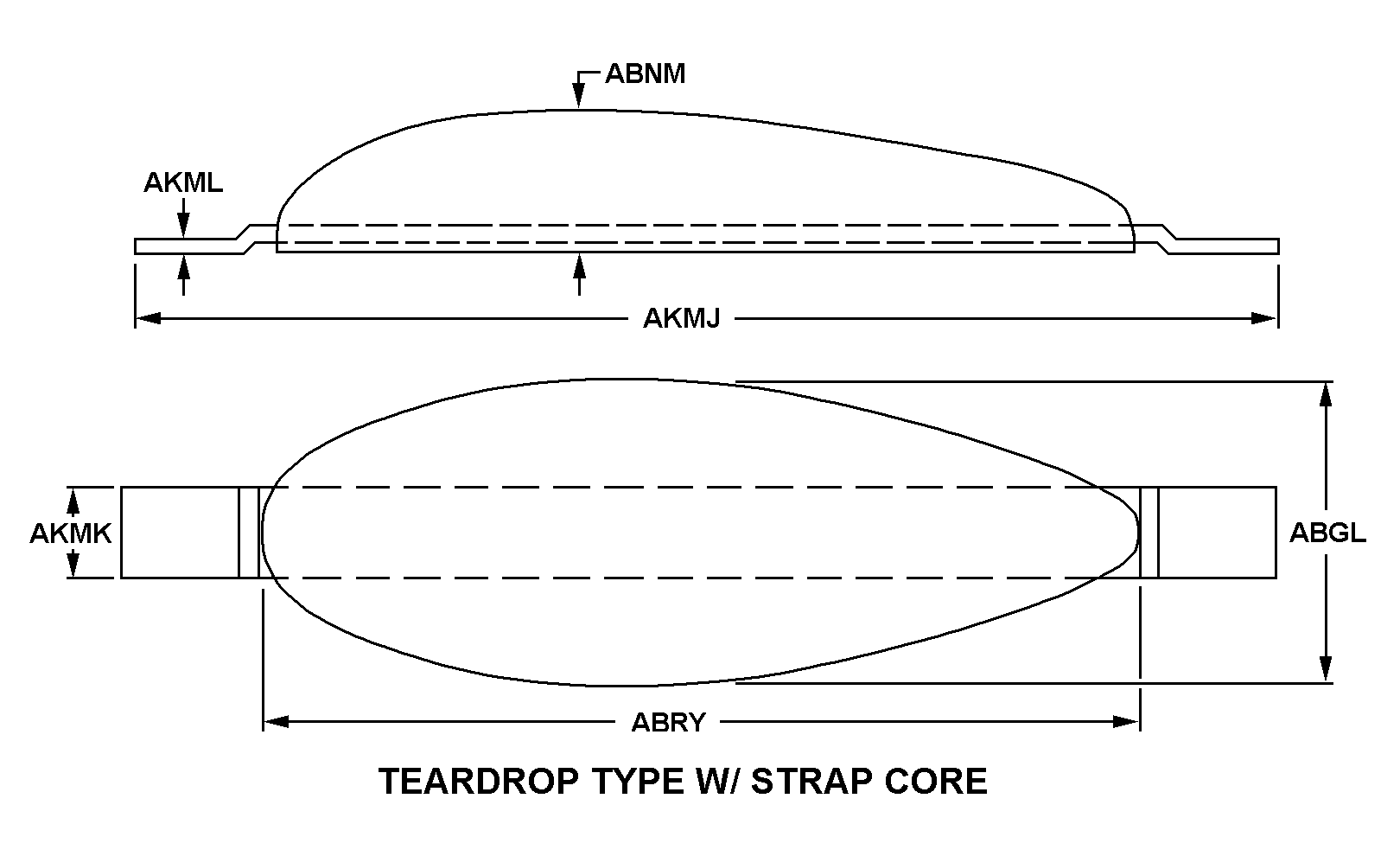

| STYLE DESIGNATOR | 24 TEARDROP TYPE WITH STRAP CORE |
| WIDTH | 3.000 INCHES NOMINAL |
| THICKNESS | 1.250 INCHES NOMINAL |
| LENGTH | 9.000 INCHES NOMINAL |
| CORE LENGTH | 12.000 INCHES NOMINAL |
| CORE WIDTH | 0.750 INCHES NOMINAL |
| CORE THICKNESS | 0.250 INCHES NOMINAL |
| CONSTRUCTION | SOLID |
| WEIGHT | 5.0 POUNDS |
| III END ITEM IDENTIFICATION | BOAT, LINE HANDLING, 9 METER, 9MLH0301/9MLH0302 |
Restrictions/Controls & Freight Information | NSN 5342-01-539-5233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 200500 | ZINC:ANODES |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-539-5233
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
