NSN 5342-01-535-0558 55611, 01-535-0558, 015350558
Product Details | FILLER OPENING CAP
5342-01-535-0558 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 55611, 5342-01-535-0558, 01-535-0558, 5342015350558, 015350558
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 NOV 2005 | 01-535-0558 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 5342-01-535-0558
Cross Reference | NSN 5342-01-535-0558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55611 | 01943 | MOELLER MFG CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-535-0558
Technical Data | NSN 5342-01-535-0558
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |

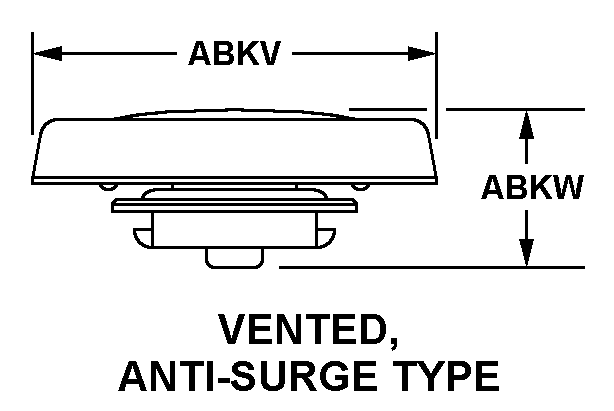

| STYLE DESIGNATOR | B18 VENTED, ANTI-SURGE TYPE |
| OUTSIDE DIAMETER | 4.800 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.150 INCHES MAXIMUM |
| GRIPPING ACCOMMODATION TYPE | STUD |
| RETAINING DEVICE TYPE | CHAIN |
| RETAINING DEVICE LENGTH | 12.000 INCHES NOMINAL |
| SPECIAL FEATURES | DUROMETER 30-40 RUBBER; CHAIN END ID 0.193 INCH; CHAIN NAS 1201B10-24; RIVET MS20470 AD4; WASHER AN 960 D4; CAP WALL THICKNESS 0.22 INCH; STUD LENGTH 0.71; BOTTOM OF CAP 4.300 INCH DIA; VENT HOLE 0.120 INCH; ALL METAL PARTS BRASS, NICKEL-PLATED |
| III END ITEM IDENTIFICATION | P3C ORION FUSELAGE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CAP |
Restrictions/Controls & Freight Information | NSN 5342-01-535-0558
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
