Product Details | GROOVED CLAMP COUPLING
5342-01-488-3046 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 8087200, 8087-200, 5342-01-488-3046, 01-488-3046, 5342014883046, 014883046
Hardware and Abrasives | Hardware, Weapon System
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 23 AUG 2001 | 01-488-3046 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Demand History | NSN 5342-01-488-3046
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5342-01-488-3046 | 2020-11-30 | 5 | US |
5342-01-488-3046 | 2013-03-21 | 3 | United States |
Cross Reference | NSN 5342-01-488-3046
Part Number | Cage Code | Manufacturer |
---|---|---|
8087-200 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-488-3046
Related Products | NSN 5342-01-488-3046
Technical Data | NSN 5342-01-488-3046
Characteristic | Specifications |
---|---|
MATERIAL AND LOCATION | TITANIUM, MIL-T-9046, TYPE 1, COMP A BAND |
SHAPE | ROUND |
INSIDE DIAMETER | 2.100 INCHES MINIMUM |

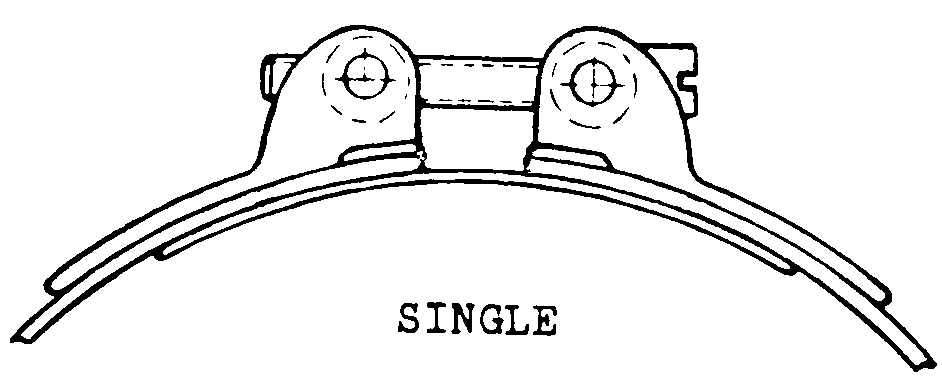

LATCH STYLE | 39 SINGLE |
SEGMENT QUANTITY | 2 |
SEALING INNER LINER | NOT INCLUDED |
SPECIAL FEATURES | NAME ON DRAWING IS 40 DEGRESS V-COUPLING ASSEMBLY HEIGHT IS 0.930 INCHES NOMINAL AND WIDTH IS 0.780 INCHES NOMINAL |
III END ITEM IDENTIFICATION | F-22 RAPTOR |
Restrictions/Controls & Freight Information | NSN 5342-01-488-3046
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
