NSN 5342-01-487-4553 4B6757, 01-487-4553, 014874553
Product Details | FILLER OPENING CAP
5342-01-487-4553 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 4B6757, 5342-01-487-4553, 01-487-4553, 5342014874553, 014874553
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 2001 | 01-487-4553 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 5342-01-487-4553
Demand History | NSN 5342-01-487-4553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4B6757 | 2019-09-19 | 12 | DIBBS |
| 5342-01-487-4553 | 2017-02-10 | 10 | DIBBS |
| 5342-01-487-4553 | 2016-12-11 | 10 | DIBBS |
| 5342-01-487-4553 | 2012-02-14 | 25 | DIBBS |
| 5342-01-487-4553 | 2011-07-29 | 12 | DIBBS |
| 5342-01-487-4553 | 2011-06-17 | 2 | DIBBS |
| 5342-01-487-4553 | 2011-04-18 | 5 | DIBBS |
| 5342-01-487-4553 | 2011-03-21 | 4 | DIBBS |
| 5342-01-487-4553 | 2011-01-31 | 2 | DIBBS |
| 5342-01-487-4553 | 2010-11-30 | 10 | DIBBS |
| 5342-01-487-4553 | 2010-10-12 | 2 | DIBBS |
| 4B6757 | 2010-03-27 | 1 | US |
Cross Reference | NSN 5342-01-487-4553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4B6757 | 97484 | EATON AEROSPACE LLC DIV FUEL AND ELECTRICAL DISTRIBUTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-487-4553
Technical Data | NSN 5342-01-487-4553
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |

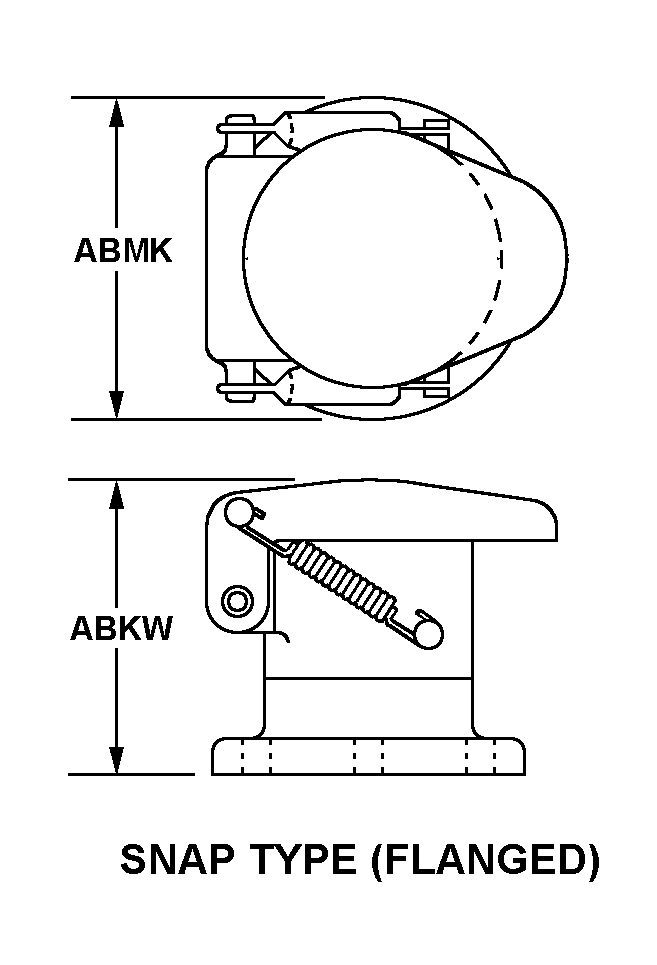

| STYLE DESIGNATOR | C22 SNAP TYPE |
| OVERALL HEIGHT | 335.0 MILLIMETERS NOMINAL |
| (NON-CORE DATA) FLANGE DIAMETER | 225.0 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5342-01-487-4553
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-487-4553
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
