NSN 5342-01-483-3454 23072-1128, 01-483-3454, 230721128
Product Details | GROOVED CLAMP COUPLING
5342-01-483-3454 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 23072-1128, 5342-01-483-3454, 01-483-3454, 5342014833454, 230721128, 014833454
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 2001 | 01-483-3454 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-01-483-3454
Demand History | NSN 5342-01-483-3454
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-483-3454 | 2019-11-312 | 3 | United States |
| 5342-01-483-3454 | 2019-06-168 | 1 | US |
| 23072-1128 | 2011-08-237 | 5 | |
| 230721128 | 2010-07-189 | 1 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-483-3454
Technical Data | NSN 5342-01-483-3454
| Characteristic | Specifications |
|---|---|

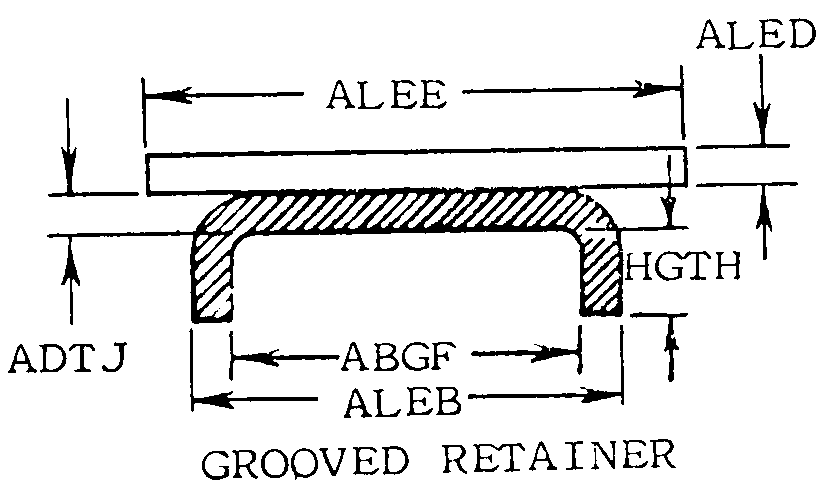

| CROSS-SECTIONAL SHAPE STYLE | 8 GROOVED RETAINER |
| SHAPE | ROUND |
| LATCH STYLE | 30 SINGLE |
| III END ITEM IDENTIFICATION | C-295 AIRCRAFT ALTERNATING CURRENT GENERATOR P/N 31342-001 |
Restrictions/Controls & Freight Information | NSN 5342-01-483-3454
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
