NSN 5342-01-437-5844 11473237, 3098-61000, 01-437-5844
Product Details | QUICK RELEASE PIN RECEPTACLE
5342-01-437-5844 An item, usually cylindrical and spring loaded, furnished with a mounting flange used to secure a PIN, QUICK RELEASE by engaging the ball detents of the PIN, QUICK RELEASE, and securing it by means of its spring action.
Part Alternates: 11473237, 3098-61000, 5342-01-437-5844, 01-437-5844, 5342014375844, 014375844, 309861000
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 OCT 1996 | 01-437-5844 | 61432 ( RECEPTACLE, QUICK RELEASE PIN ) |
Drawings & Photos | NSN 5342-01-437-5844
Demand History | NSN 5342-01-437-5844
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-437-5844 | 2014-12-353 | 5 | DIBBS |
| 5342-01-437-5844 | 2014-12-345 | 5 | DIBBS |
| 5342-01-437-5844 | 2010-07-203 | 3 | DIBBS |
| 5342-01-437-5844 | 2009-12-362 | 2 | DIBBS |
| 5342-01-437-5844 | 2009-07-194 | 1 | DIBBS |
| 11473237 | 2007-06-176 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-437-5844
Related Products | NSN 5342-01-437-5844
Technical Data | NSN 5342-01-437-5844
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 BARREL |
| SURFACE TREATMENT | PASSIVATE BARREL |
| BODY LENGTH | 1.910 INCHES NOMINAL |
| PLATE WIDTH | 1.060 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.042 INCHES NOMINAL |
| BODY DIAMETER | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.500 INCHES NOMINAL |

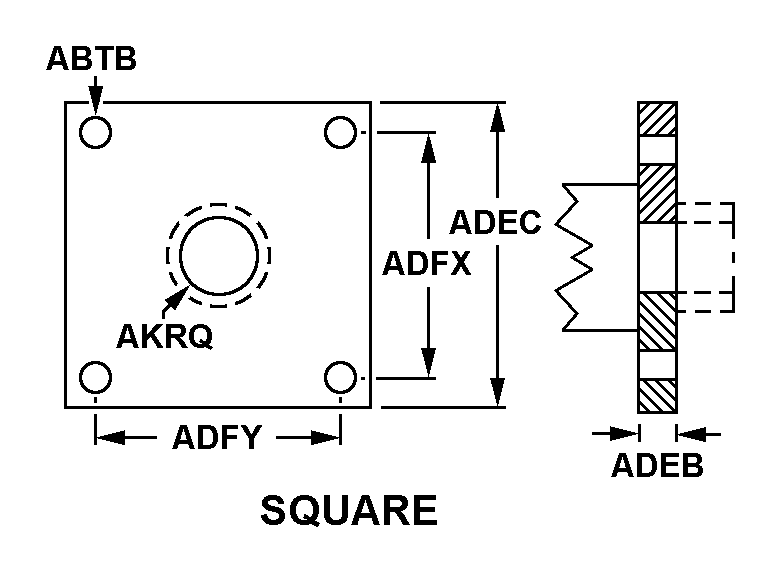

| MOUNTING PLATE STYLE | 5 SQUARE |
| PIN ACCOMMODATION DIAMETER | 0.164 INCHES NOMINAL |
| PLATE THICKNESS | 0.750 INCHES NOMINAL |
| MOUNTING PLATE TYPE | STUD |
Restrictions/Controls & Freight Information | NSN 5342-01-437-5844
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-437-5844
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
