NSN 5342-01-366-2594 LW1764AC1210, LW1764AC1-210, 13QPR104C1210
Product Details | QUICK RELEASE PIN RECEPTACLE
5342-01-366-2594 An item, usually cylindrical and spring loaded, furnished with a mounting flange used to secure a PIN, QUICK RELEASE by engaging the ball detents of the PIN, QUICK RELEASE, and securing it by means of its spring action.
Part Alternates: LW1764AC1210, LW1764AC1-210, 13QPR104C1210, 13QPR10-4C1-210 , 3M9754C1210, 3M975-4C1-210, 52171A4C1210, 52171A4C1-210, 5342-01-366-2594, 01-366-2594, 5342013662594, 013662594
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 OCT 1992 | 01-366-2594 | 61432 ( RECEPTACLE, QUICK RELEASE PIN ) |
Drawings & Photos | NSN 5342-01-366-2594
Demand History | NSN 5342-01-366-2594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 13QPR10-4C1-210 | 2020-10-288 | 8 | DIBBS |
| 52171A4C1-210 | 2020-10-288 | 8 | DIBBS |
| 13QPR10-4C1-210 | 2020-08-243 | 2 | DIBBS |
| 52171A4C1-210 | 2020-08-243 | 2 | DIBBS |
| 13QPR10-4C1-210 | 2020-07-203 | 1 | DIBBS |
| 52171A4C1-210 | 2020-07-203 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-366-2594
Related Products | NSN 5342-01-366-2594
Technical Data | NSN 5342-01-366-2594
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING RECEPTACLE STEEL CORROSION RESISTING RECEPTACLE MECHANISM STEEL CORROSION RESISTING RECEPTACLE PLATE STEEL CORROSION RESISTING RETAINER STEEL CORROSION RESISTING HOUSING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC ALL MATERIAL RESPONSES RECEPTACLE AMS5673 ASSN STD 2ND MATERIAL RESPONSE RECEPTACLE MECHANISM QQ-S-766 FED SPEC ALL MATERIAL RESPONSES RECEPTACLE PLATE QQ-S-766 FED SPEC ALL MATERIAL RESPONSES RETAINER AMS5643 ASSN STD SINGLE MATERIAL RESPONSE HOUSING |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| PLATE WIDTH | 0.625 INCHES NOMINAL |
| PLATE LENGTH | 1.570 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.166 INCHES NOMINAL |
| BODY DIAMETER | 0.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.250 INCHES NOMINAL |

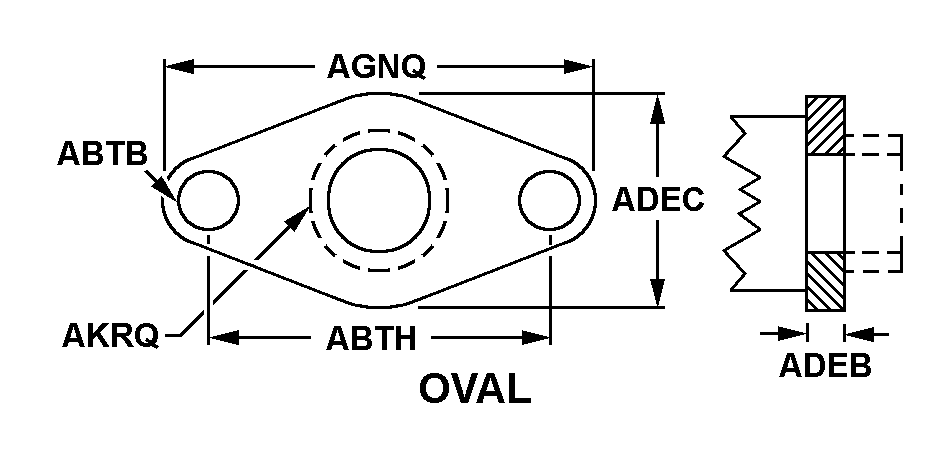

| MOUNTING PLATE STYLE | 2 OVAL |
| PIN ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL |
| PLATE THICKNESS | 0.062 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.210 INCHES NOMINAL |
| MOUNTING PLATE TYPE | FLUSH |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | 3M975-4C1-210 |
