NSN 5342-01-212-5293 U3356S1, U3356S1800, U3356S1-800
Product Details | GROOVED CLAMP COUPLING
5342-01-212-5293 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: U3356S1, U3356S1800, U3356S1-800 , 24540800, 24540-800, 5342-01-212-5293, 01-212-5293, 5342012125293, 012125293
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1985 | 01-212-5293 | 20319 ( COUPLING, CLAMP, GROOVED ) |

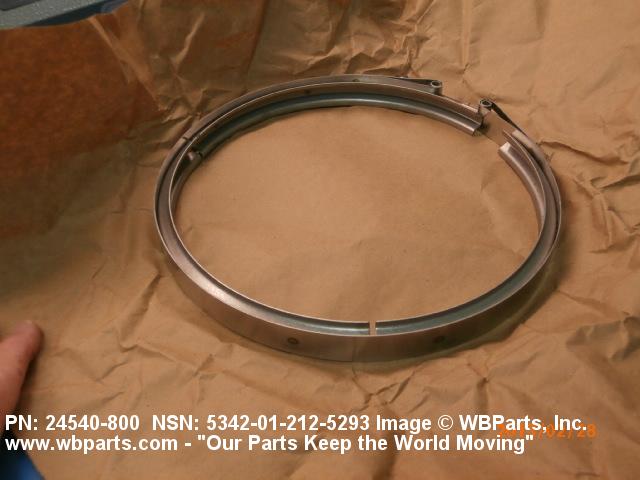

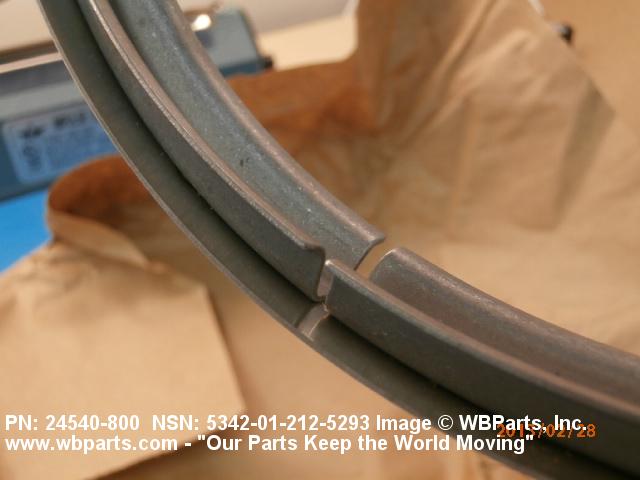

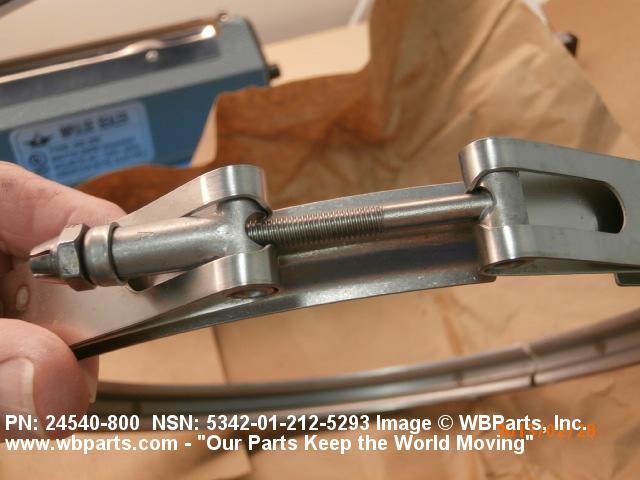

Drawings & Photos | NSN 5342-01-212-5293
Demand History | NSN 5342-01-212-5293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-212-5293 | 2017-02-07 | 59 | DIBBS |
| 5342-01-212-5293 | 2015-03-29 | 48 | DIBBS |
| 5342-01-212-5293 | 2014-08-03 | 9 | DIBBS |
| 5342-01-212-5293 | 2014-07-16 | 1 | DIBBS |
| 5342-01-212-5293 | 2014-07-09 | 1 | DIBBS |
| 5342-01-212-5293 | 2014-06-30 | 1 | DIBBS |
| 5342-01-212-5293 | 2014-06-21 | 1 | DIBBS |
| 5342-01-212-5293 | 2014-03-13 | 1 | DIBBS |
| 5342-01-212-5293 | 2014-03-04 | 1 | DIBBS |
| 24540800 | 2013-02-14 | 6 | United States |
| 5342-01-212-5293 | 2012-04-23 | 6 | DIBBS |
| 5342-01-212-5293 | 2012-03-30 | 1 | DIBBS |
| 5342-01-212-5293 | 2011-12-08 | 0 | DIBBS |
| 5342-01-212-5293 | 2011-10-02 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-212-5293
Technical Data | NSN 5342-01-212-5293
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED RETAINER |

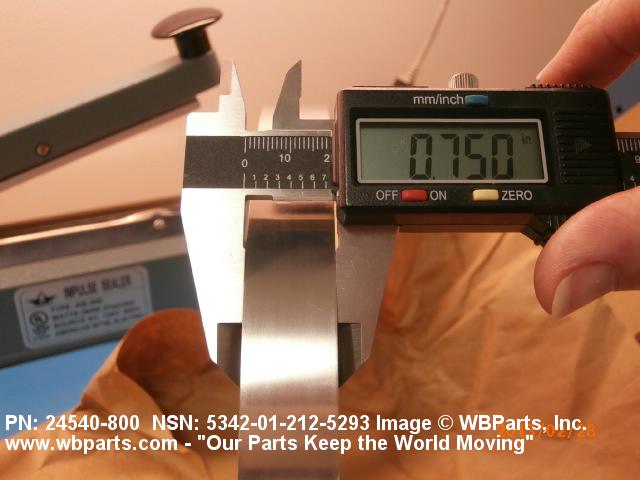

| RETAINER WIDTH | 0.750 INCHES NOMINAL |
| BAND WIDTH | 0.750 INCHES NOMINAL |
| SURFACE TREATMENT AND LOCATION | SILVER PLATED NUT |
| SHAPE | ROUND |

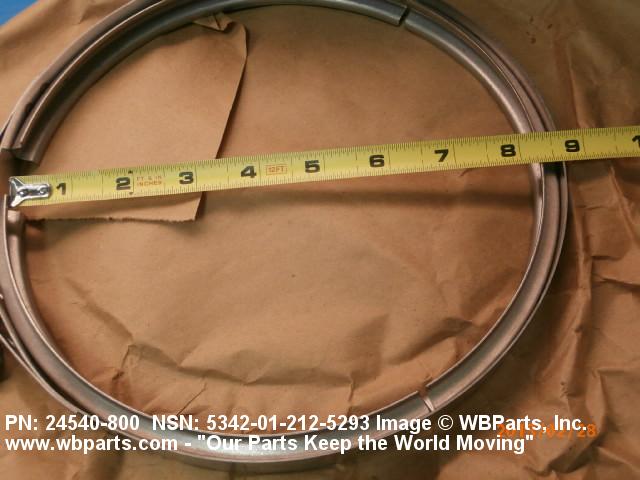

| INSIDE DIAMETER | 8.640 INCHES NOMINAL |
| LATCH STYLE | SINGLE |
| NUT TYPE | SELF-LOCKING HEXAGON |
| SEGMENT QUANTITY | 3 |
| SEALING INNER LINER | NOT INCLUDED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | NUT SILVER |

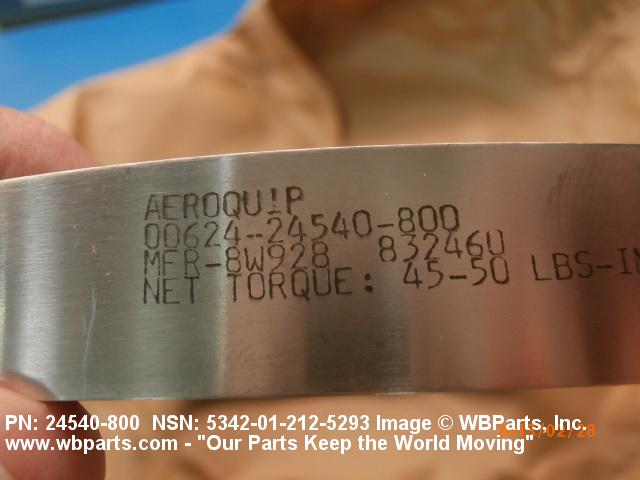

| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | 24540-800 |
Restrictions/Controls & Freight Information | NSN 5342-01-212-5293
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-212-5293
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
