NSN 5342-01-100-2362 MV83442KS472T, 01-100-2362, 011002362
Product Details | GROOVED CLAMP COUPLING
5342-01-100-2362 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: MV83442KS472T, 5342-01-100-2362, 01-100-2362, 5342011002362, 011002362
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 AUG 1980 | 01-100-2362 | 20319 ( COUPLING, CLAMP, GROOVED ) |

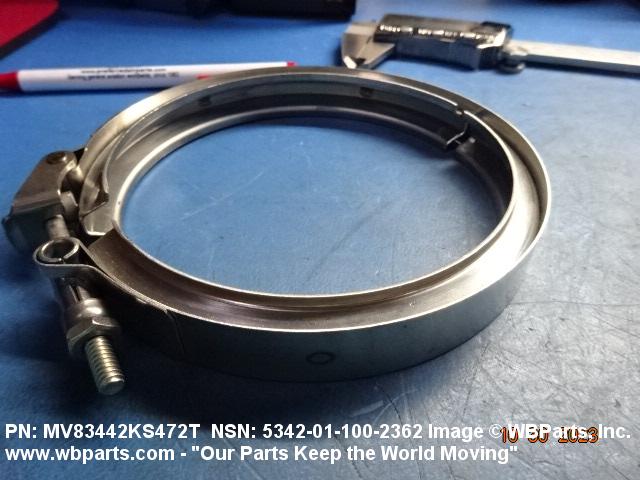

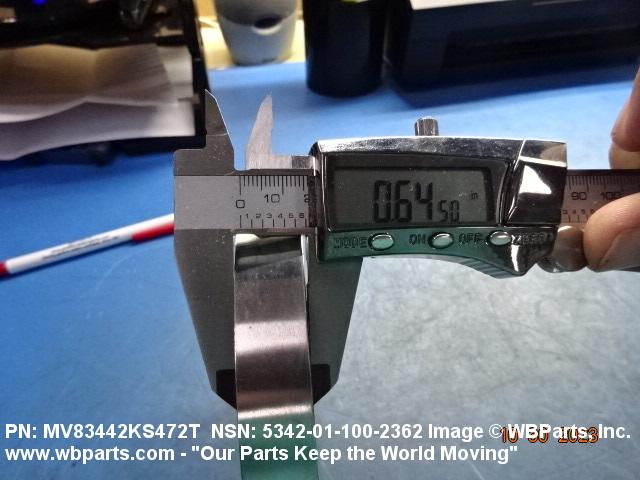

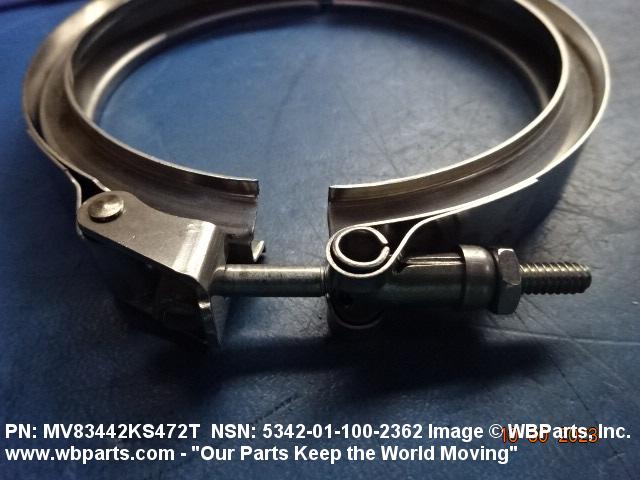

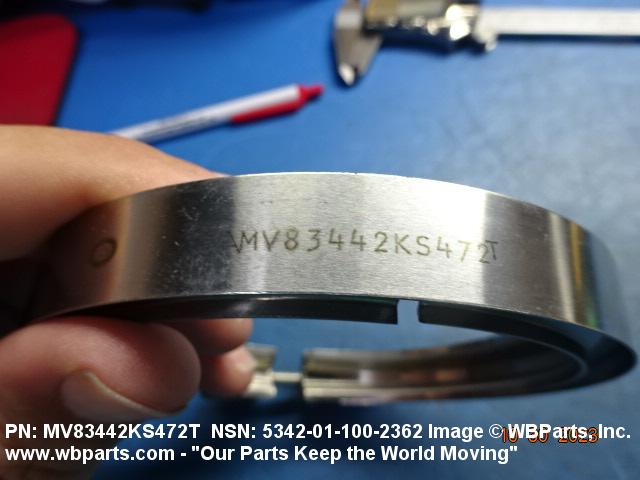

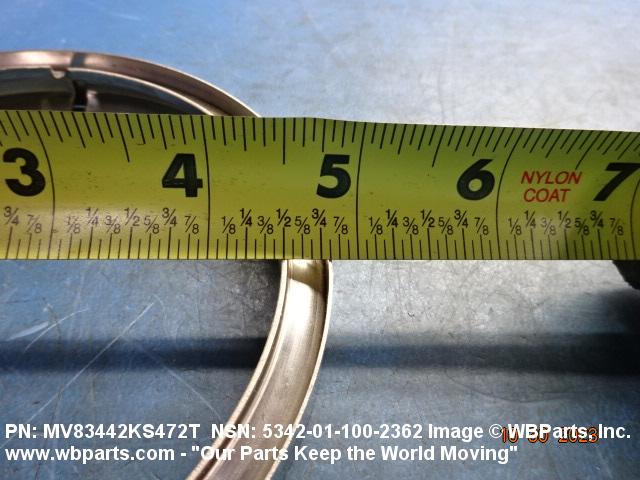

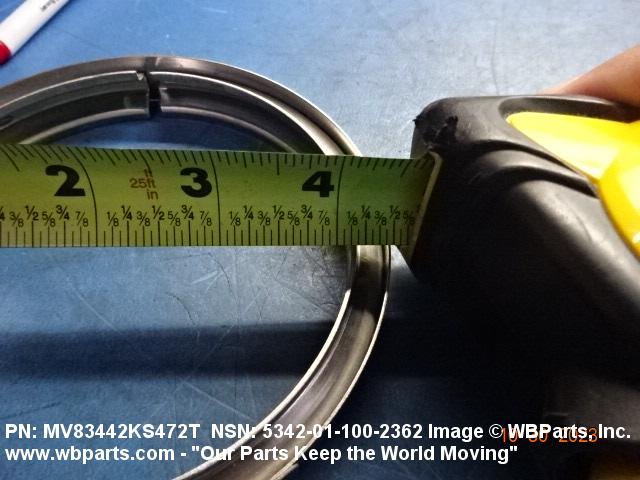

Drawings & Photos | NSN 5342-01-100-2362
Demand History | NSN 5342-01-100-2362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-100-2362 | 2024-05-151 | 3 | United States |
| 5342-01-100-2362 | 2024-05-151 | 50 | United States |
| 5342-01-100-2362 | 2023-10-291 | 2 | United States |
| 5342-01-100-2362 | 2023-08-214 | 2 | United States |
| MV83442KS472T | 2023-04-96 | 5 | DIBBS |
| 5342-01-100-2362 | 2022-09-256 | 5 | US |
| MV83442KS472T | 2022-05-139 | 5 | DIBBS |
| MV83442KS472T | 2022-04-104 | 5 | DIBBS |
| MV83442KS472T | 2020-04-111 | 5 | DIBBS |
| MV83442KS472T | 2020-04-100 | 5 | DIBBS |
| MV83442KS472T | 2020-03-63 | 1 | DIBBS |
| MV83442KS472T | 2020-03-61 | 1 | DIBBS |
| 5342-01-100-2362 | 2013-09-259 | 1 | TH |
| 5342-01-100-2362 | 2013-05-127 | 2 | MANUAL |
| 5342-01-100-2362 | 2011-01-23 | 1 | DIBBS |
| 5342-01-100-2362 | 2010-12-357 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-100-2362
Related Products | NSN 5342-01-100-2362
Technical Data | NSN 5342-01-100-2362
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER THICKNESS | 0.040 INCHES NOMINAL |
| RETAINER WIDTH | 0.620 INCHES NOMINAL |
| ROOT WIDTH | 0.227 INCHES NOMINAL |
| BAND THICKNESS | ANY ACCEPTABLE |
| BAND WIDTH | ANY ACCEPTABLE |
| HEIGHT | 0.281 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 40.0 |
| MATERIAL AND LOCATION | STEEL, AISI 301 BAND STEEL, CORROSION RESISTING NUT CRES 18-8 BOLT |
| SHAPE | ROUND |
| INSIDE DIAMETER | 4.158 INCHES NOMINAL |
| LATCH STYLE | 30 SINGLE |
| NUT TYPE | PLAIN HEXAGON |
| DRILLED LOCKWIRE HOLE | NOT INCLUDED |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5342-01-100-2362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-100-2362
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
