NSN 5342-01-060-2944 584R134H02, 01-060-2944, 010602944
Product Details | PROTECTION BELLOWS
5342-01-060-2944 A nonmetallic, accordian shaped protective covering designed to flex due to relative motion between parts to which its opposite ends are attached. It is primarily used to cover the opening around a movable push-pull rod or part passing through a hole in a bulkhead, partition or the like.20353400020Hardware, Commercial53420023Hardware, Weapon System93900046Miscellaneous Fabricated Nonmetallic Materials
Part Alternates: 584R134H02, 5342-01-060-2944, 01-060-2944, 5342010602944, 010602944
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1978 | 01-060-2944 | 35168 ( BELLOWS, PROTECTION ) |

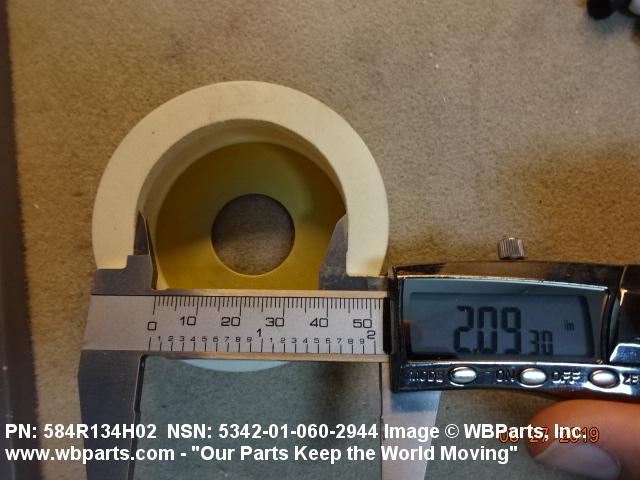

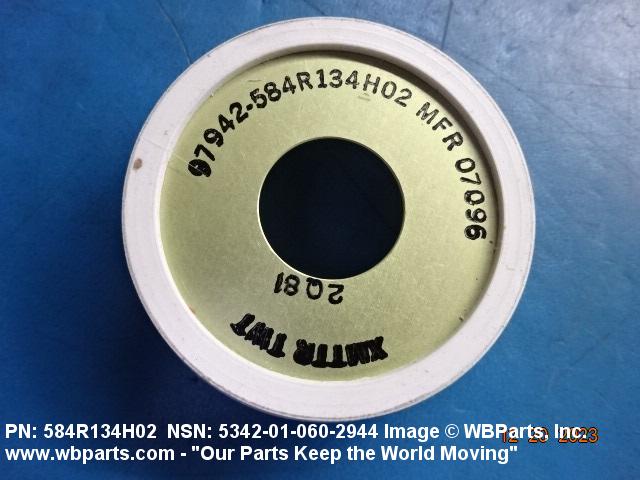

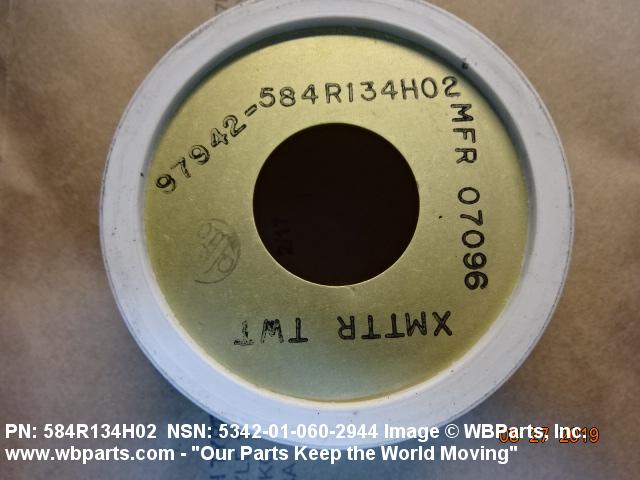

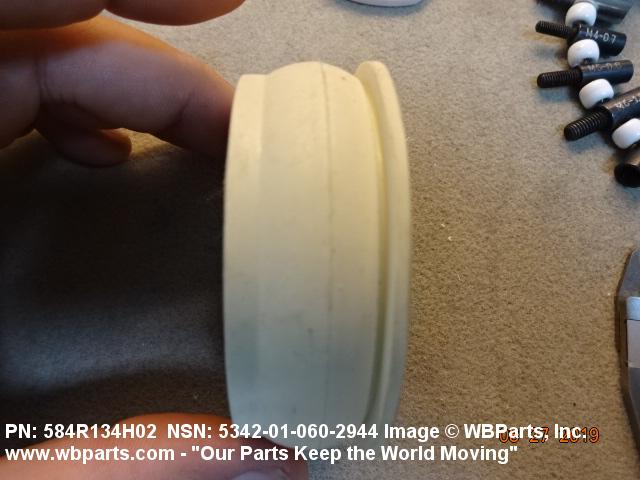

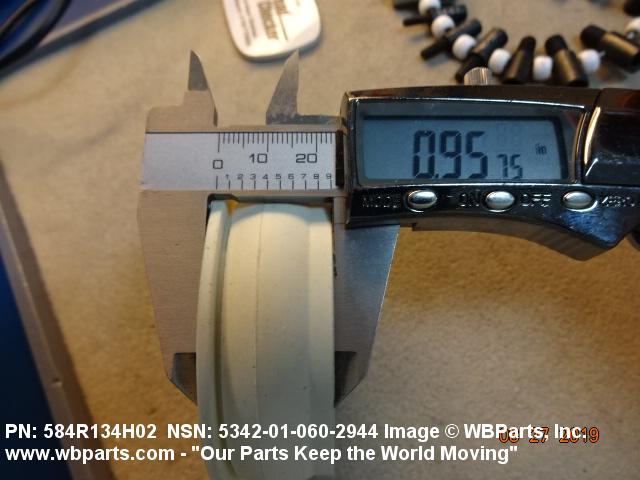

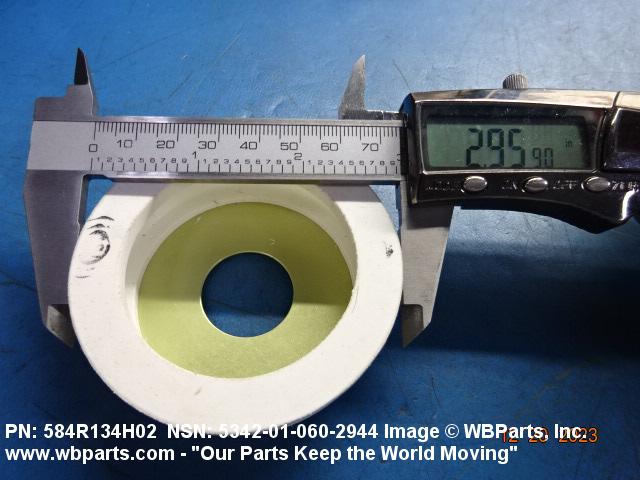

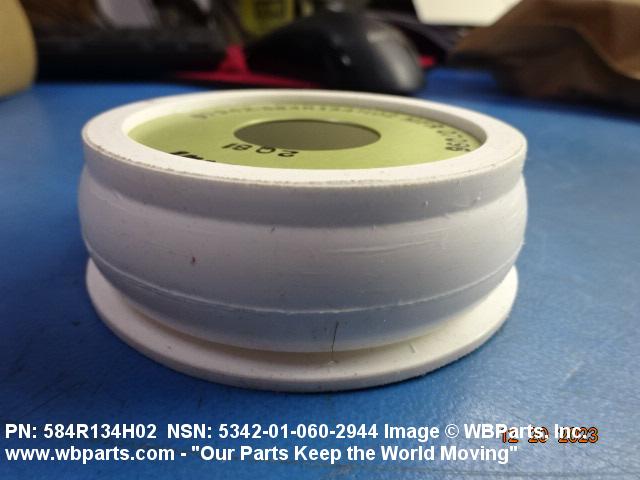

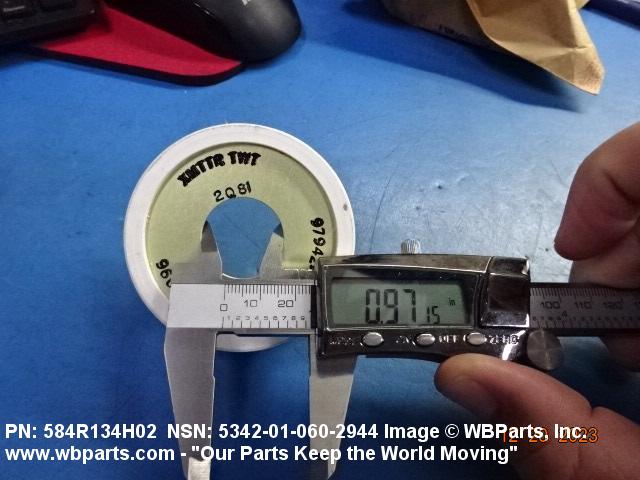

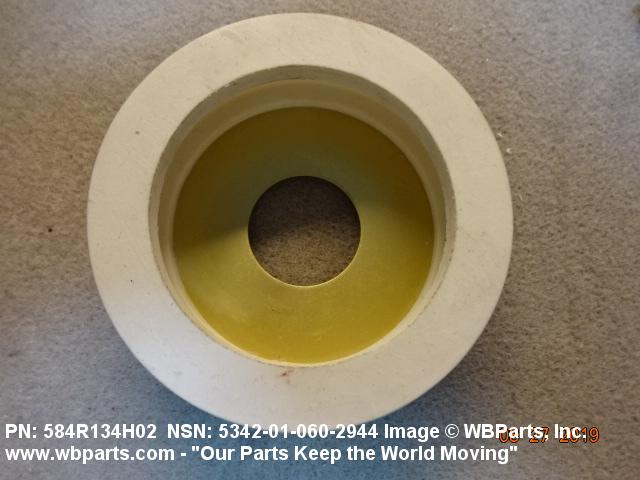

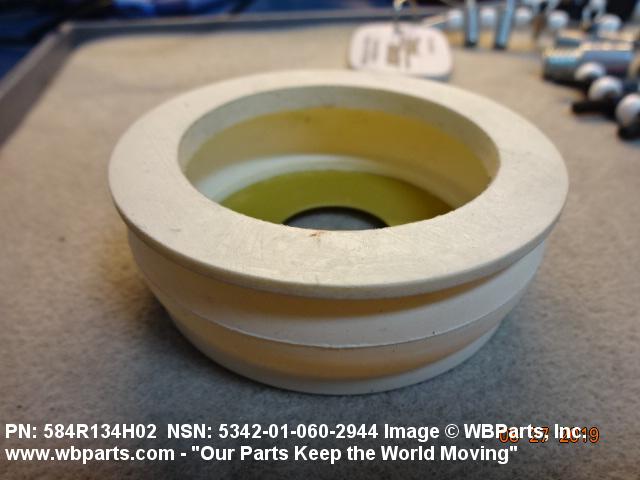

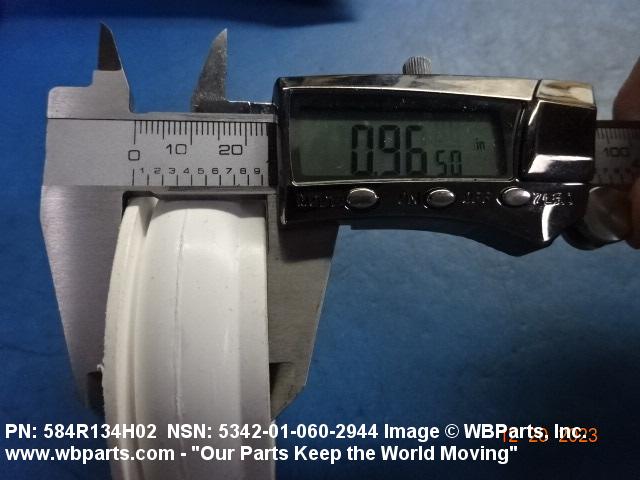

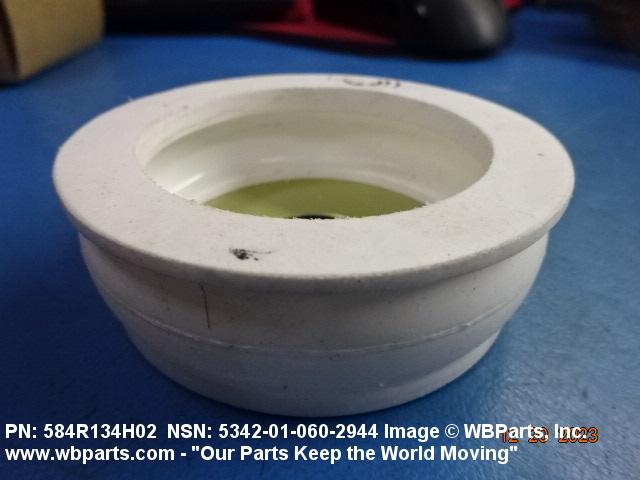

Drawings & Photos | NSN 5342-01-060-2944
Demand History | NSN 5342-01-060-2944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-060-2944 | 2023-12-352 | 3 | United States |
| 5342-01-060-2944 | 2023-12-349 | 3 | United States |
| 584R134H02 | 2021-05-139 | 5 | DIBBS |
| B-5719-H02 | 2021-05-139 | 5 | DIBBS |
| 584R134H02 | 2021-02-40 | 5 | DIBBS |
| B-5719-H02 | 2021-02-40 | 5 | DIBBS |
| 584R134H02 | 2020-03-68 | 5 | DIBBS |
| B-5719-H02 | 2020-03-68 | 5 | DIBBS |
| 584R134H02 | 2019-11-310 | 5 | DIBBS |
| B-5719-H02 | 2019-11-310 | 5 | DIBBS |
| 5342-01-060-2944 | 2019-08-226 | 1 | United States |
Cross Reference | NSN 5342-01-060-2944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 584R134H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-060-2944
Related Products | NSN 5342-01-060-2944
Technical Data | NSN 5342-01-060-2944
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICONE RUBBER |
| FLANGE BASE | NOT PROVIDED |
| MOUNTING HOLE QUANTITY | 8 |
| MOUNTING HOLE SPACING | HOLES PLACED 0.855 IN. APART |
| SMALL END INSIDE DIAMETER | 0.969 INCHES NOMINAL |
| III FSC APPLICATION DATA | F-16 ACFT FIRE CONTROL SYSTEM |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 584R134H02 |
Restrictions/Controls & Freight Information | NSN 5342-01-060-2944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 183780 | TOOLS:BELLOWS IN PKGS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-060-2944
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
