NSN 5342-01-015-7600 NH1032520350, NH103252-0350, VC371A415Z
Product Details | GROOVED CLAMP COUPLING
5342-01-015-7600 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: NH1032520350, NH103252-0350, VC371A415Z, VC371A-415-Z, 30313350, 30313-350, 34H40350, 34H40-350, 9014M79, 9014M79P156, 9014M79P256, 9014M79P356, 9014M79P56, 5342-01-015-7600, 01-015-7600, 5342010157600, 010157600
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JAN 1976 | 01-015-7600 | 20319 ( COUPLING, CLAMP, GROOVED ) |

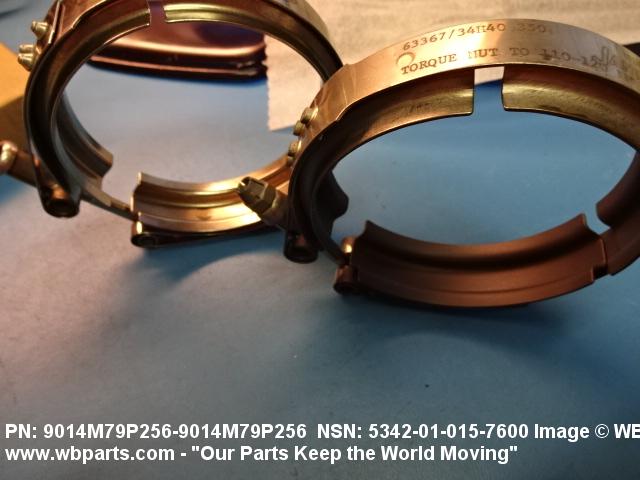

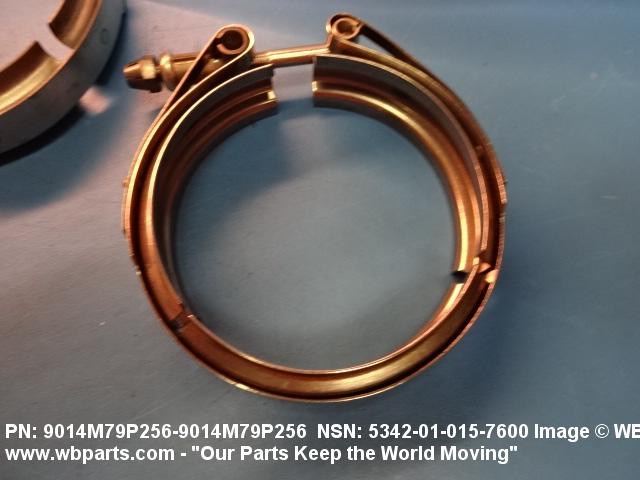

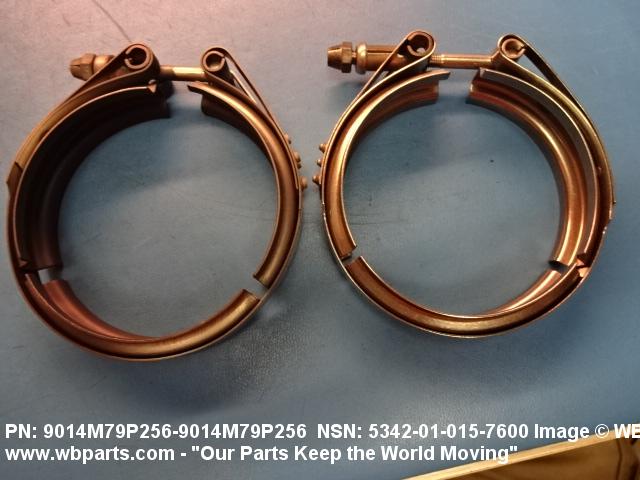

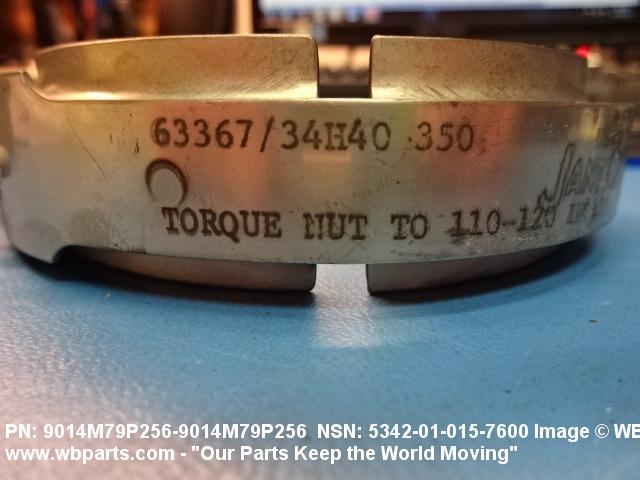

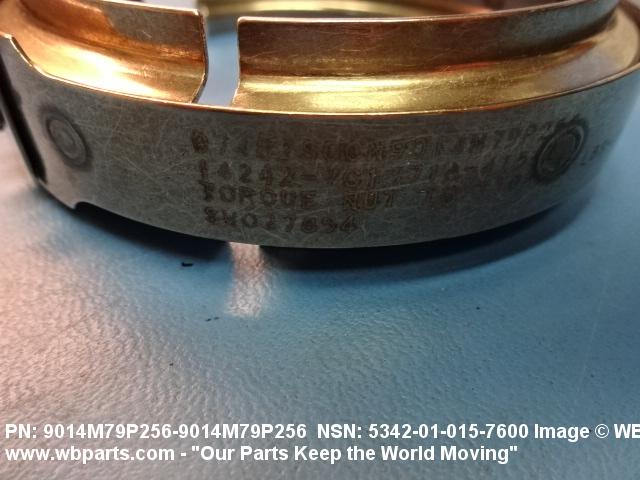

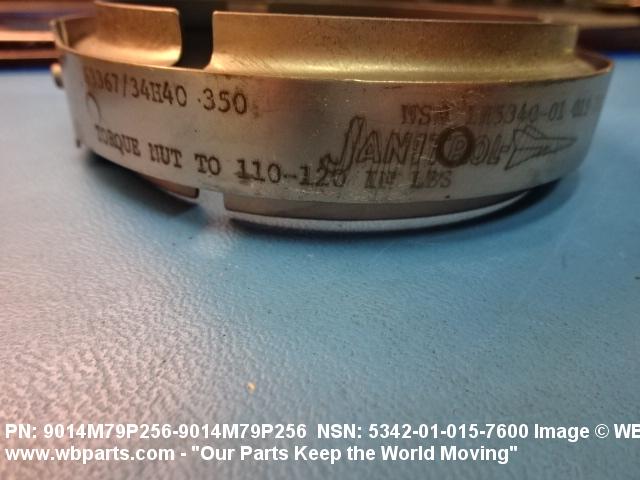

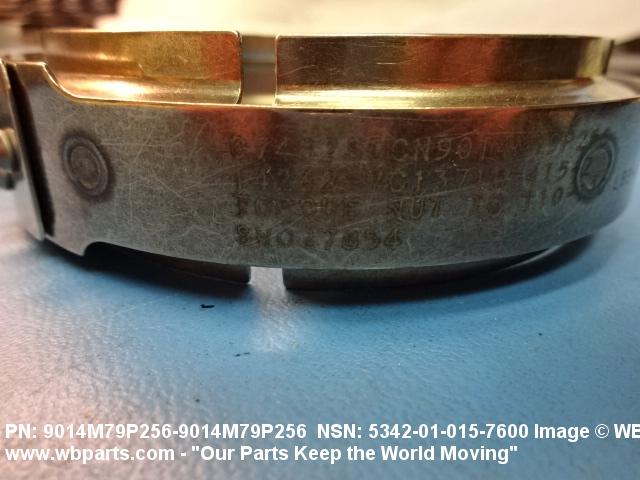

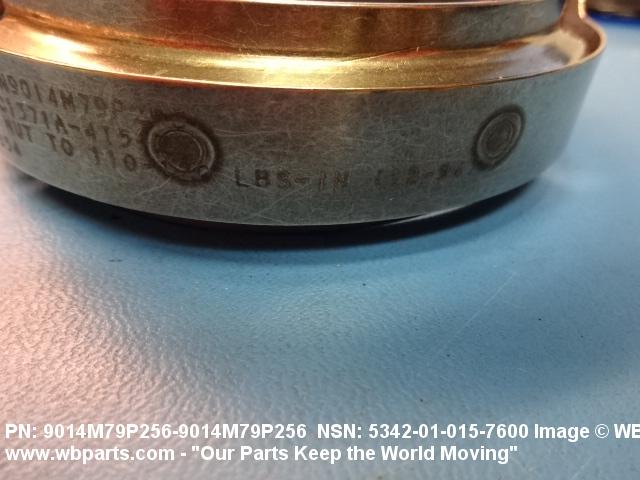

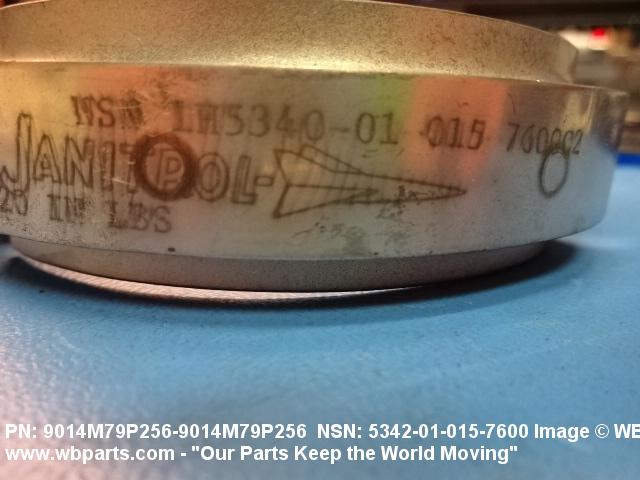

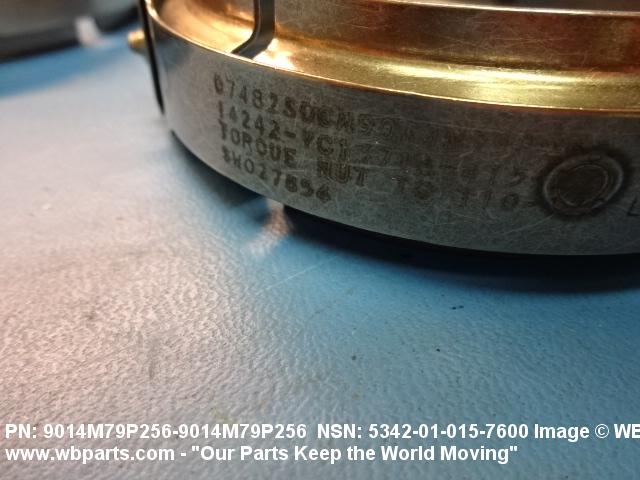

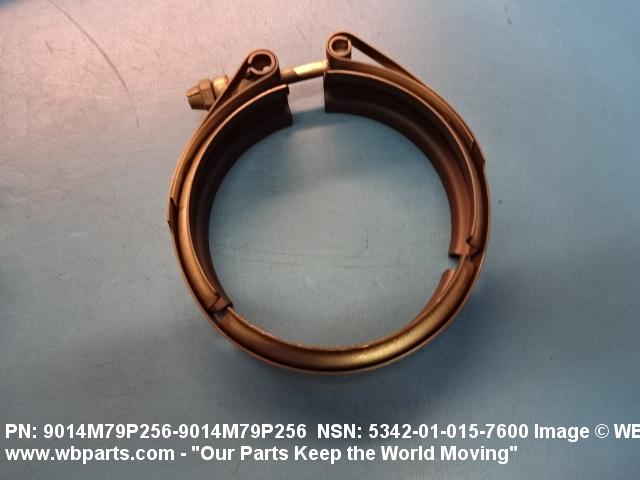

Drawings & Photos | NSN 5342-01-015-7600
Demand History | NSN 5342-01-015-7600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9014M79P56 | 2023-12-339 | 1 | United States |
| 9014M79P156 | 2021-07-199 | 71 | DIBBS |
| 9014M79P256 | 2021-07-199 | 71 | DIBBS |
| 9014M79P356 | 2021-07-199 | 71 | DIBBS |
| 9014M79P56 | 2021-07-199 | 71 | DIBBS |
| 9014M79P156 | 2021-05-126 | 24 | DIBBS |
| 9014M79P256 | 2021-05-126 | 24 | DIBBS |
| 9014M79P356 | 2021-05-126 | 24 | DIBBS |
| 9014M79P56 | 2021-05-126 | 24 | DIBBS |
| 9014M79P156 | 2020-10-294 | 25 | DIBBS |
| 9014M79P256 | 2020-10-294 | 25 | DIBBS |
| 9014M79P356 | 2020-10-294 | 25 | DIBBS |
| 9014M79P56 | 2020-10-294 | 25 | DIBBS |
| 9014M79P156 | 2020-10-287 | 25 | DIBBS |
| 9014M79P256 | 2020-10-287 | 25 | DIBBS |
| 9014M79P356 | 2020-10-287 | 25 | DIBBS |
| 9014M79P56 | 2020-10-287 | 25 | DIBBS |
| 9014M79P156 | 2019-03-88 | 39 | DIBBS |
| 9014M79P256 | 2019-03-88 | 39 | DIBBS |
| 9014M79P356 | 2019-03-88 | 39 | DIBBS |
| 9014M79P56 | 2019-03-88 | 39 | DIBBS |
| 9014M79P156 | 2019-03-80 | 39 | DIBBS |
| 9014M79P256 | 2019-03-80 | 39 | DIBBS |
| 9014M79P356 | 2019-03-80 | 39 | DIBBS |
| 9014M79P56 | 2019-03-80 | 39 | DIBBS |
| 5342-01-015-7600 | 2018-10-283 | 36 | DIBBS |
| 5342-01-015-7600 | 2017-12-339 | 25 | US |
| 5342-01-015-7600 | 2017-10-299 | 18 | United States |
| 5342-01-015-7600 | 2017-06-166 | 4 | DIBBS |
| 5342-01-015-7600 | 2017-06-157 | 18 | DIBBS |
| 9014M79P256 | 2016-09-256 | 2 | IT |
| 5342-01-015-7600 | 2016-03-83 | 17 | DIBBS |
Cross Reference | NSN 5342-01-015-7600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30313-350 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
| 34H40-350 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 9014M79 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9014M79P156 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9014M79P156 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
| 9014M79P256 | 14242 | VOSS INDUSTRIES, INC. |
| 9014M79P356 | 8W928 | EATON CORPORATION DBA EATON QUIP |
| 9014M79P56 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| NH103252-0350 | 8W928 | EATON CORPORATION DBA EATON QUIP |
| VC371A-415-Z | 14242 | VOSS INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-015-7600
Related Products | NSN 5342-01-015-7600
Technical Data | NSN 5342-01-015-7600
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER THICKNESS | 0.040 INCHES NOMINAL |
| RETAINER WIDTH | 1.070 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| ROOT WIDTH | 0.405 INCHES MINIMUM AND 0.425 INCHES MAXIMUM |
| BAND THICKNESS | 0.035 INCHES NOMINAL |
| BAND WIDTH | 0.595 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |
| HEIGHT | 0.230 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| INCLUDED ANGLE IN DEG | 37.0 |
| MATERIAL AND LOCATION | STEEL NUT STEEL, AMS 5596 RETAINER STEEL, AMS 5596 STRAP STEEL, AMS 5596 TRUNNION STEEL,AMS 5735,TYPE A286,T-BOLT |
| SHAPE | ROUND |
| INSIDE DIAMETER | 3.658 INCHES MINIMUM AND 3.678 INCHES MAXIMUM |
| LATCH STYLE | 31 SINGLE |
| NUT TYPE | TRUNNION NUT |
| SEGMENT QUANTITY | 3 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | 1050.0 DEG FAHRENHEIT |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 9014M79 |
Restrictions/Controls & Freight Information | NSN 5342-01-015-7600
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094110 | CLAMPS CONDUIT/MUFFLER/PIPE U-BOLT |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-015-7600
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
