NSN 5342-00-899-2868 5123500SH, 512-3-500SH, 00-899-2868
Product Details | GROOVED CLAMP COUPLING
5342-00-899-2868 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 5123500SH, 512-3-500SH, 5342-00-899-2868, 00-899-2868, 5342008992868, 008992868
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 FEB 1967 | 00-899-2868 | 20319 ( COUPLING, CLAMP, GROOVED ) |

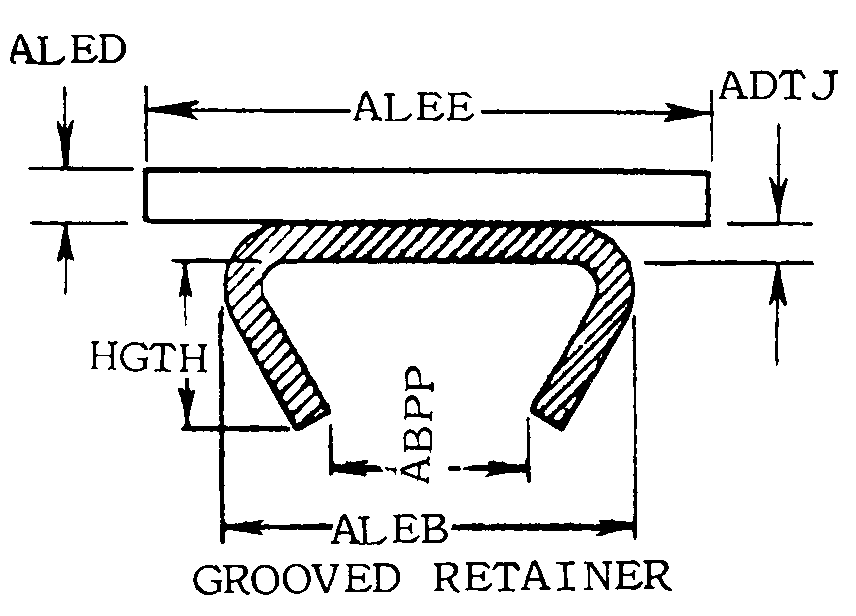

Drawings & Photos | NSN 5342-00-899-2868
Cross Reference | NSN 5342-00-899-2868
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 512-3-500SH | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-899-2868
Technical Data | NSN 5342-00-899-2868
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 GROOVED RETAINER |
| OPENING WIDTH | 0.330 INCHES NOMINAL |
| RETAINER THICKNESS | 0.040 INCHES NOMINAL |
| RETAINER WIDTH | 0.750 INCHES NOMINAL |
| BAND THICKNESS | 0.020 INCHES NOMINAL |
| BAND WIDTH | 0.750 INCHES NOMINAL |
| HEIGHT | 0.172 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, MIL-S-5059, TYPE 301, 1/4 HARD STRAP STEEL, MIL-S-6721 RETAINER |
| SHAPE | ROUND |
| INSIDE DIAMETER | 5.000 INCHES NOMINAL |
| LATCH STYLE | 31 SINGLE |
| NUT TYPE | SELF-LOCKING HEXAGON |
| SEGMENT QUANTITY | 1 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5342-00-899-2868
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
