Product Details | GROOVED CLAMP COUPLING HALF

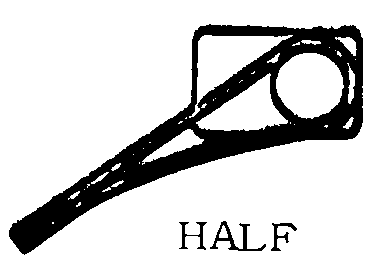

5342-00-818-4491 A half section of a COUPLING, CLAMP, GROOVED to which one-half of a latching assembly (coupler) is attached. The section is designed to mate with formed flanges of various sizes and shapes on tubing, piping, ducts, and containers.
Part Alternates: 428989, 5342-00-818-4491, 00-818-4491, 5342008184491, 008184491
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-818-4491 | 20320 ( COUPLING HALF, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-00-818-4491
Demand History | NSN 5342-00-818-4491
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-818-4491 | 2018-10-10 | 40 | DIBBS |
| 5342-00-818-4491 | 2018-06-13 | 16 | DIBBS |
| 5342-00-818-4491 | 2017-11-07 | 11 | DIBBS |
| 5342-00-818-4491 | 2016-09-07 | 12 | DIBBS |
| 5342-00-818-4491 | 2016-01-28 | 37 | DIBBS |
| 5342-00-818-4491 | 2016-01-06 | 26 | DIBBS |
| 5342-00-818-4491 | 2015-11-17 | 11 | DIBBS |
| 5342-00-818-4491 | 2015-07-07 | 11 | DIBBS |
| 5342-00-818-4491 | 2015-05-18 | 5 | DIBBS |
Cross Reference | NSN 5342-00-818-4491
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 428989 | 00285 | KWIK FILE STORAGE SYSTEMS LLC |
| 428989 | 09594 | NEWELL WINDOW FURNISHINGS CO |
| 428989 | 21128 | JDMC ENTERPRISES DBA HIGH SPEED MACHINE PRODUCTS |
| 428989 | 30264 | ELECTRIC COIL SERVICE INC |
| 428989 | 30483 | THE WILKINS CO INC |
| 428989 | 53333 | EAST GRANBY MACHINE CO INC |
| 428989 | 53375 | SSANFORD TOOL & DESIGN INC |
| 428989 | 57850 | TRIUMPH ACTUATION SYSTEMS - CONNECTICUT, LLC |
| 428989 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
