NSN 5342-00-809-1555 25-2328-801, 00-809-1555, 252328801
Product Details | GROOVED CLAMP COUPLING
5342-00-809-1555 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 25-2328-801, 5342-00-809-1555, 00-809-1555, 5342008091555, 252328801, 008091555
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-809-1555 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-00-809-1555
Demand History | NSN 5342-00-809-1555
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-809-1555 | 2019-11-325 | 62 | DIBBS |
| 5342-00-809-1555 | 2019-11-317 | 62 | DIBBS |
| 5342-00-809-1555 | 2018-05-136 | 5 | DIBBS |
| 5342-00-809-1555 | 2018-05-128 | 5 | DIBBS |
| 5342-00-809-1555 | 2017-12-339 | 4 | DIBBS |
| 5342-00-809-1555 | 2017-10-290 | 4 | DIBBS |
| 5342-00-809-1555 | 2010-11-308 | 6 | DIBBS |
| 5342-00-809-1555 | 2010-02-56 | 17 | DIBBS |
| 5342-00-809-1555 | 2009-10-295 | 27 | DIBBS |
| 5342-00-809-1555 | 2009-09-245 | 9 | DIBBS |
| 5342-00-809-1555 | 2009-04-112 | 5 | DIBBS |
| 5342-00-809-1555 | 2008-12-343 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-809-1555
Technical Data | NSN 5342-00-809-1555
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER THICKNESS | 0.080 INCHES NOMINAL |
| RETAINER WIDTH | 0.880 INCHES NOMINAL |
| ROOT WIDTH | 0.212 INCHES NOMINAL |
| BAND THICKNESS | 0.063 INCHES NOMINAL |
| BAND WIDTH | 0.880 INCHES NOMINAL |
| HEIGHT | 0.281 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 40.0 |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SHAPE | ROUND |
| INSIDE DIAMETER | 3.969 INCHES NOMINAL |

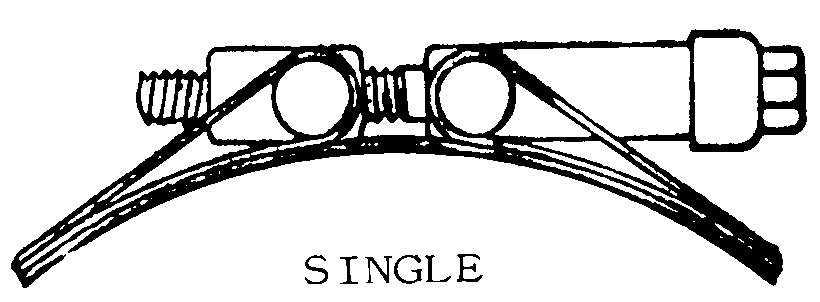

| LATCH STYLE | 32 SINGLE |
| NUT TYPE | SELF-LOCKING HEXAGON |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 25-2328-801 |
Restrictions/Controls & Freight Information | NSN 5342-00-809-1555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-809-1555
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
