NSN 5342-00-808-1022 428804, 00-808-1022, 008081022
Product Details | ENGINE ACCESSORY BRACKET
5342-00-808-1022 A bracket specifically designed for the purpose of mounting and supporting miscellaneous accessories. Excludes adjusting arms.
Part Alternates: 428804, 5342-00-808-1022, 00-808-1022, 5342008081022, 008081022
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-808-1022 | 37122 ( BRACKET, ENGINE ACCESSORY ) |

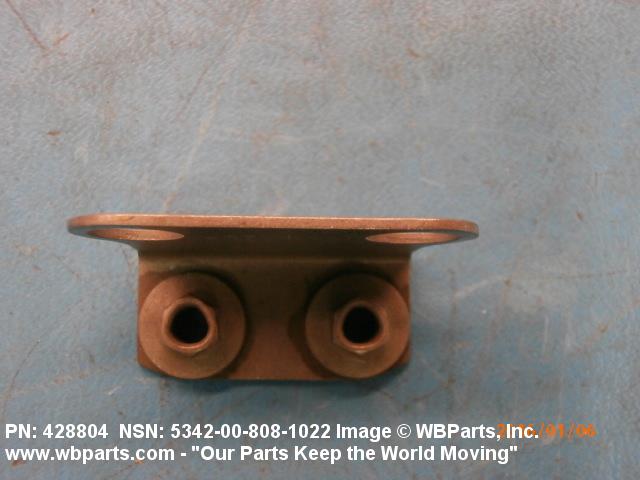

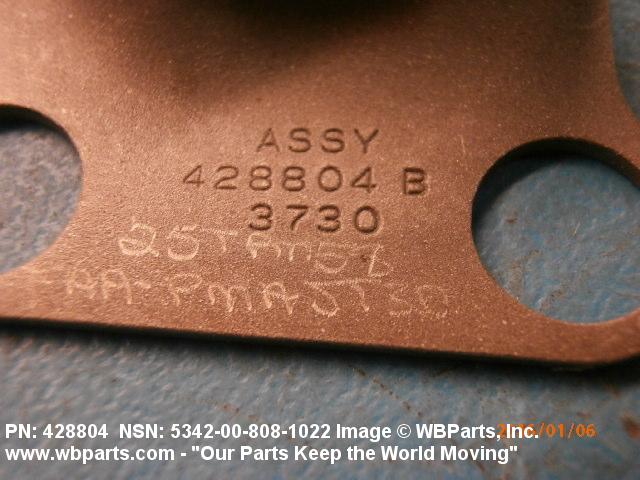

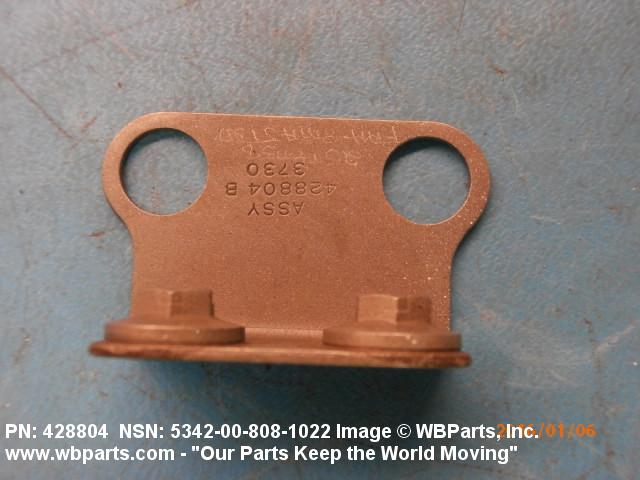

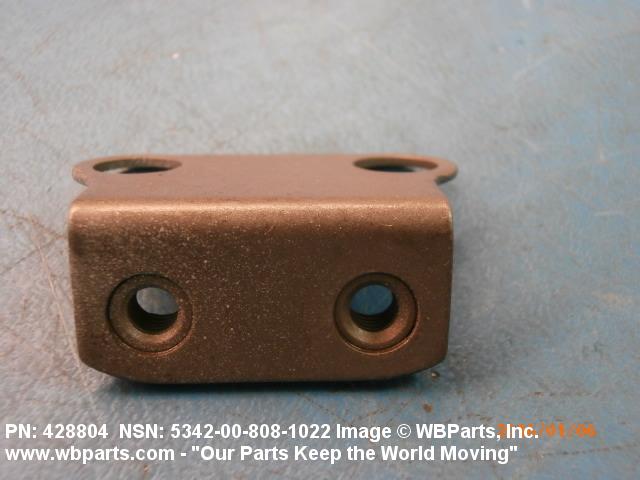

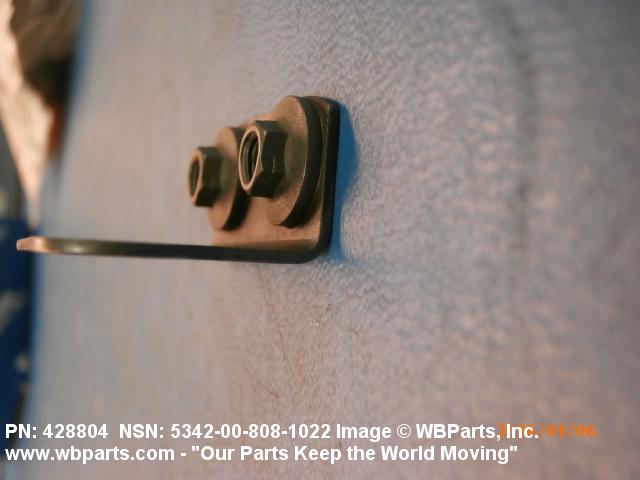

Drawings & Photos | NSN 5342-00-808-1022
Demand History | NSN 5342-00-808-1022
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 428804 | 2020-08-244 | 164 | DIBBS |
| 428804 | 2020-08-232 | 164 | DIBBS |
| 428804 | 2019-10-296 | 52 | DIBBS |
| 428804 | 2019-10-287 | 52 | DIBBS |
| 428804 | 2019-07-191 | 136 | DIBBS |
| 5342-00-808-1022 | 2018-03-85 | 158 | DIBBS |
| 5342-00-808-1022 | 2018-03-77 | 158 | DIBBS |
| 5342-00-808-1022 | 2018-01-10 | 322 | DIBBS |
| 5342-00-808-1022 | 2017-12-345 | 176 | DIBBS |
| 5342-00-808-1022 | 2017-01-18 | 1 | DIBBS-RFPs |
| 428804 | 2015-12-343 | 50 | us |
| 428804 | 2015-09-253 | 13 | us |
| 428804 | 2015-02-51 | 50 | us |
| 428804 | 2014-11-314 | 50 | Turkey |
| 5342-00-808-1022 | 2011-12-353 | 229 | DIBBS |
| 5342-00-808-1022 | 2010-10-286 | 112 | DIBBS |
| 5342-00-808-1022 | 2010-02-49 | 80 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-808-1022
Related Products | NSN 5342-00-808-1022
Technical Data | NSN 5342-00-808-1022
| Characteristic | Specifications |
|---|---|

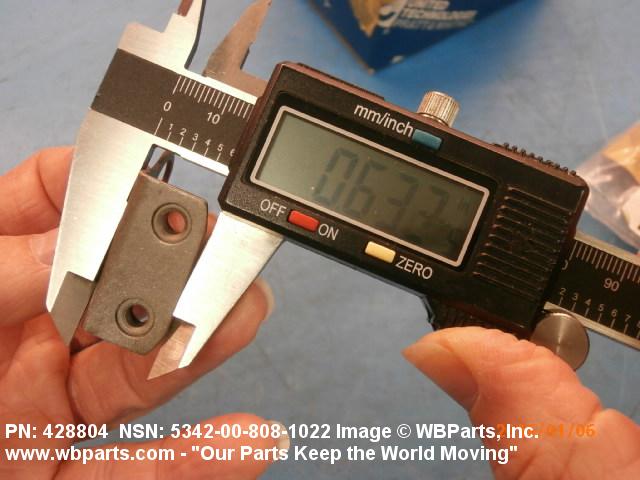

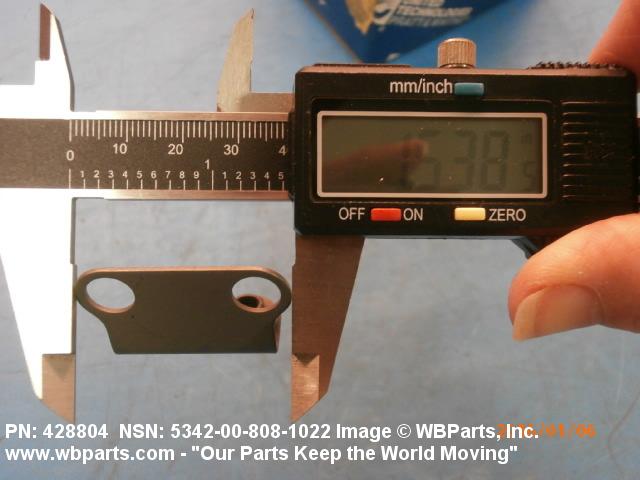

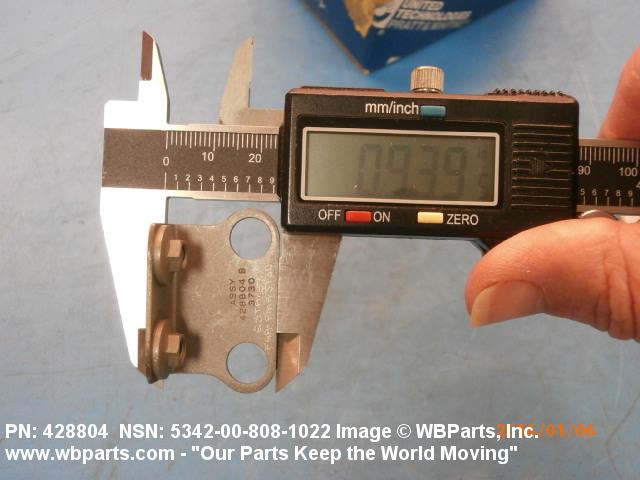

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | CRES,AMS 5504 BRACKET MATERIAL,ROCKWELL C30-38 HARDNESS90 DEG ANGLE,0.914-0.966 IN. LONG LEG LG,0.615-0.635 IN. SHORT LEGLG,1.498-1.582 IN. OVERALL W,CONSISTING OF 2 PART NO. 518107 NUTS,1 PART NO. 428809 BRACKET WITH DIM. 0.045-0.050 IN. THK |
| III END ITEM IDENTIFICATION | ENGINE MODEL TF33 |
| III FSC APPLICATION DATA | AIRCRAFT JET ENGINE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 428804 |
Restrictions/Controls & Freight Information | NSN 5342-00-808-1022
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-808-1022
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | RV | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS TF-33 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
