Product Details | GROOVED CLAMP COUPLING

5342-00-721-7987 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: U50250SH, U50-250SH, 43133250SH, 43133-250SH, 5342-00-721-7987, 00-721-7987, 5342007217987, 007217987

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-721-7987

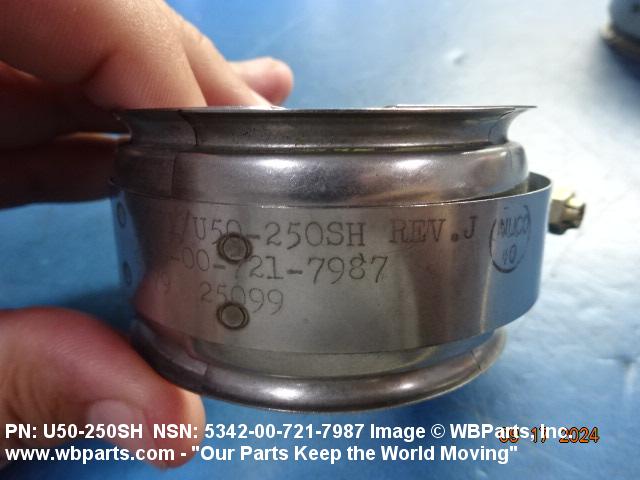

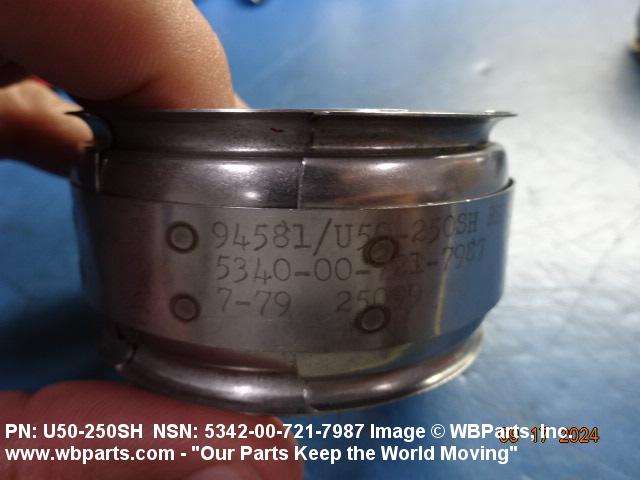

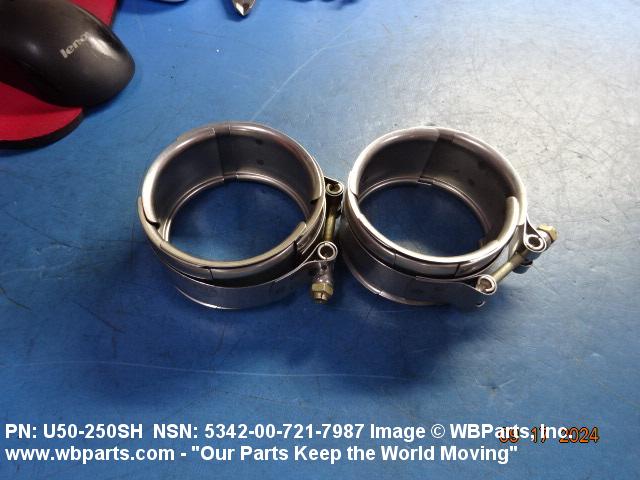

Drawings & Photos | NSN 5342-00-721-7987


Demand History | NSN 5342-00-721-7987

Part Number Request Date QTY Origin
5342-00-721-7987 2024-09-255 2 Canada
5342-00-721-7987 2024-09-255 2 Canada
43133-250SH 2019-11-317 101 DIBBS
U50-250SH 2019-11-317 101 DIBBS
43133250SH 2015-03-78 4 Malaysia
43133250SH 2014-05-149 3 Sri Lanka
5342-00-721-7987 2009-02-56 55 DIBBS

Cross Reference | NSN 5342-00-721-7987

Part Number Cage Code Manufacturer
43133-250SH 00624 EATON CORPORATION DBA AEROSPACE DIV
43133-250SH 8W928 EATON CORPORATION DBA EATON QUIP
U50-250SH 94581 V I J CORPORATION DBA NUCO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5342-00-721-7987

Technical Data | NSN 5342-00-721-7987

Characteristic Specifications
CROSS-SECTIONAL SHAPE STYLE 5 GROOVED RETAINER
RETAINER THICKNESS 0.020 INCHES NOMINAL
RETAINER WIDTH 1.625 INCHES NOMINAL
ROOT WIDTH 1.125 INCHES NOMINAL
BAND THICKNESS 0.020 INCHES NOMINAL
BAND WIDTH 0.750 INCHES NOMINAL
HEIGHT 0.156 INCHES NOMINAL
MATERIAL AND LOCATION STEEL NUT STEEL BOLT STEEL, MIL-S-5059, TYPE 302, 1/4 HARD BAND STEEL, MIL-S-5059, TYPE 302, 1/4 HARD SEGMENT
SHAPE ROUND
INSIDE DIAMETER 2.500 INCHES NOMINAL
LATCH STYLE 31 SINGLE
NUT TYPE SELF-LOCKING HEXAGON
SEGMENT QUANTITY 6
SEALING INNER LINER NOT INCLUDED
TEMP RATING NOT RATED
MAXIMUM LOAD RATING NOT RATED
MANUFACTURERS CODE 8W928
DESIGN CONTROL REFERENCE 43133-250SH

Restrictions/Controls & Freight Information | NSN 5342-00-721-7987

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5342-00-721-7987

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
