NSN 5342-00-702-1665 CLASS1TYPEZEPSTYLEC, MILA18001, MIL-A-18001
Product Details | CORROSION PREVENTIVE ANODE
5342-00-702-1665 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: CLASS1TYPEZEPSTYLEC, MILA18001, MIL-A-18001, MILA18001KCLASS1TYPEZEPC, MIL-A-18001KCLASS1TYPEZEPC, MILA18001LCLASS1TYPEZEPC, MIL-A-18001LCLASS1TYPEZEPC , 26011365PC6, 2601-1365PC6, 2CW2300MPC629, 5342-00-702-1665, 00-702-1665, 5342007021665, 007021665
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-702-1665 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5342-00-702-1665
Demand History | NSN 5342-00-702-1665
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-702-1665 | 2023-10-285 | 117 | DIBBS |
| 5342-00-702-1665 | 2023-06-170 | 982 | DIBBS |
| 5342-00-702-1665 | 2022-10-289 | 27 | DIBBS |
| 5342-00-702-1665 | 2022-06-168 | 411 | DIBBS |
| 5342-00-702-1665 | 2022-06-157 | 411 | DIBBS |
| 5342-00-702-1665 | 2022-04-110 | 92 | DIBBS |
| 5342-00-702-1665 | 2022-04-109 | 1208 | DIBBS |
| 5342-00-702-1665 | 2018-02-52 | 278 | DIBBS |
| 5342-00-702-1665 | 2017-03-85 | 370 | DIBBS |
| 5342-00-702-1665 | 2017-01-10 | 131 | DIBBS |
| 5342-00-702-1665 | 2016-12-358 | 1 | DIBBS-RFPs |
| 5342-00-702-1665 | 2016-11-335 | 103 | DIBBS |
| 5342-00-702-1665 | 2016-10-301 | 324 | DIBBS |
| 5342-00-702-1665 | 2016-09-272 | 293 | DIBBS |
| 5342-00-702-1665 | 2016-07-213 | 261 | DIBBS |
| 5342-00-702-1665 | 2016-04-111 | 137 | DIBBS |
| 5342-00-702-1665 | 2016-04-97 | 1040 | DIBBS |
| 5342-00-702-1665 | 2015-11-305 | 251 | DIBBS |
| 5342-00-702-1665 | 2015-07-182 | 317 | DIBBS |
| 5342-00-702-1665 | 2015-05-148 | 312 | DIBBS |
| 5342-00-702-1665 | 2015-04-92 | 175 | DIBBS |
| 5342-00-702-1665 | 2015-03-69 | 375 | DIBBS |
| 5342-00-702-1665 | 2014-09-264 | 175 | DIBBS |
| 5342-00-702-1665 | 2014-07-190 | 300 | DIBBS |
| 5342-00-702-1665 | 2014-06-169 | 196 | DIBBS |
| 5342-00-702-1665 | 2014-02-34 | 1590 | DIBBS |
| 5342-00-702-1665 | 2014-01-23 | 287 | DIBBS |
| 5342-00-702-1665 | 2014-01-02 | 95 | DIBBS |
| 5342-00-702-1665 | 2013-12-350 | 133 | DIBBS |
| 5342-00-702-1665 | 2013-10-295 | 497 | DIBBS |
| 5342-00-702-1665 | 2013-07-206 | 1 | DIBBS-RFPs |
| 5342-00-702-1665 | 2013-02-58 | 206 | DIBBS |
| 5342-00-702-1665 | 2013-01-30 | 492 | DIBBS |
| 5342-00-702-1665 | 2012-11-312 | 404 | DIBBS |
| 5342-00-702-1665 | 2012-11-311 | 404 | DIBBS |
| 5342-00-702-1665 | 2011-05-133 | 2600 | DIBBS |
| 5342-00-702-1665 | 2011-01-21 | 690 | DIBBS |
| 5342-00-702-1665 | 2010-03-74 | 612 | DIBBS |
| 5342-00-702-1665 | 2009-10-292 | 1027 | DIBBS |
| 5342-00-702-1665 | 2009-09-257 | 872 | DIBBS |
| 5342-00-702-1665 | 2009-08-215 | 659 | DIBBS |
| 5342-00-702-1665 | 2009-04-104 | 346 | DIBBS |
| 5342-00-702-1665 | 2008-11-323 | 281 | DIBBS |
| 5342-00-702-1665 | 2008-02-53 | 363 | DIBBS |
| 5342-00-702-1665 | 2008-02-53 | 1062 | DIBBS |
| 5342-00-702-1665 | 2008-01-16 | 1062 | DIBBS |
Cross Reference | NSN 5342-00-702-1665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2601-1365PC6 | 96169 | ELECTRIC BOAT CORPORATION |
| 2CW2300MPC629 | 61671 | FERNSTEN INDUSTRIES CO |
| CLASS1TYPEZEPSTYLEC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-A-18001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-A-18001KCLASS1TYPEZEPC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-702-1665
Related Products | NSN 5342-00-702-1665
Technical Data | NSN 5342-00-702-1665
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ZINC, MIL-A-18001, CLASS 1, TYPE ZEP, STYLE C ANODE AND STEEL CORE |
| CORE SURFACE TREATMENT | CADMIUM AND ZINC |

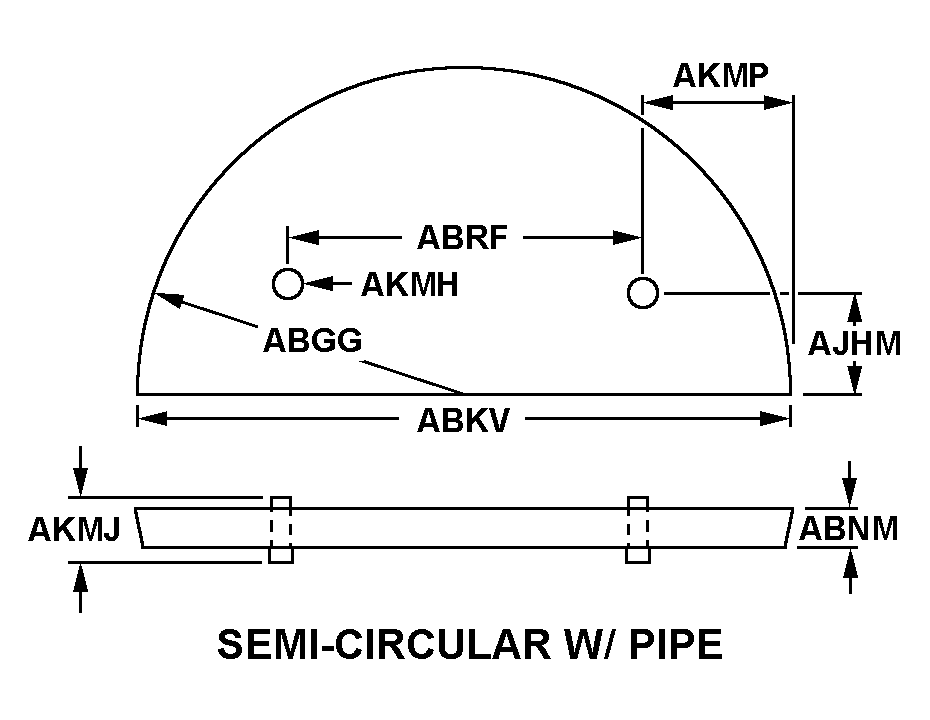

| STYLE DESIGNATOR | 30 SEMI-CIRCULAR WITH PIPE |
| RADIUS | 7.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 15.000 INCHES NOMINAL |
| THICKNESS | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 6.375 INCHES NOMINAL |
| HOLE CENTER TO BASE DISTANCE | 3.062 INCHES NOMINAL |
| CORE DIAMETER | 0.500 INCHES NOMINAL |
| CORE LENGTH | 1.125 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF CORE HOLE | 4.312 INCHES NOMINAL |
| MOUNTING METHOD | PIPE |
| INSERT QUANTITY | 2 |
| CONSTRUCTION | SOLID |
| WEIGHT | 23.0 POUNDS |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND ZEP TYPE AND C STYLE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-18001 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-18001KCLASS1TYPEZEPC |
Restrictions/Controls & Freight Information | NSN 5342-00-702-1665
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 110050 | LEAD: ANODES IN PKGS;TL LOOSE |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-702-1665
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
