NSN 5342-00-321-9551 AS1895/1, AS1895/1E250, AS18951

Product Details | GROOVED CLAMP COUPLING

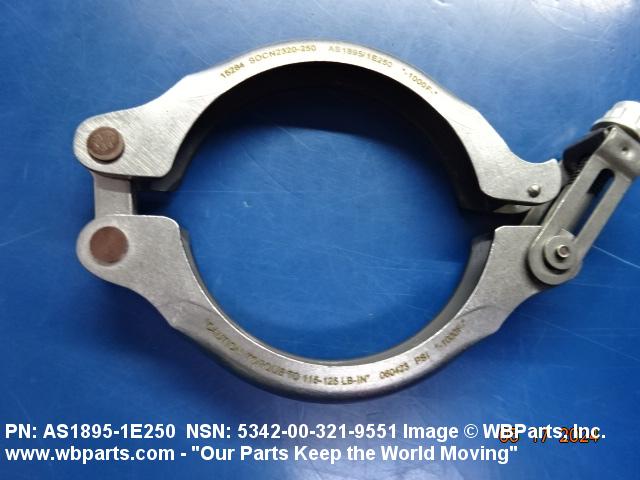

5342-00-321-9551 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: AS1895/1, AS1895/1E250, AS18951, AS18951E250, ST7M276250, ST7M276-250, VR1026250, VR1026-250, 10117783, 2320250, 2320-250, 52242AE250, 5342-00-321-9551, 00-321-9551, 5342003219551, 003219551

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	17 DEC 1991	00-321-9551	20319 ( COUPLING, CLAMP, GROOVED )

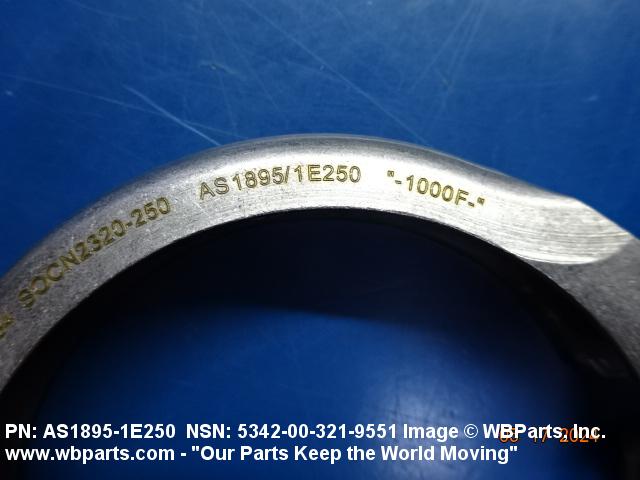

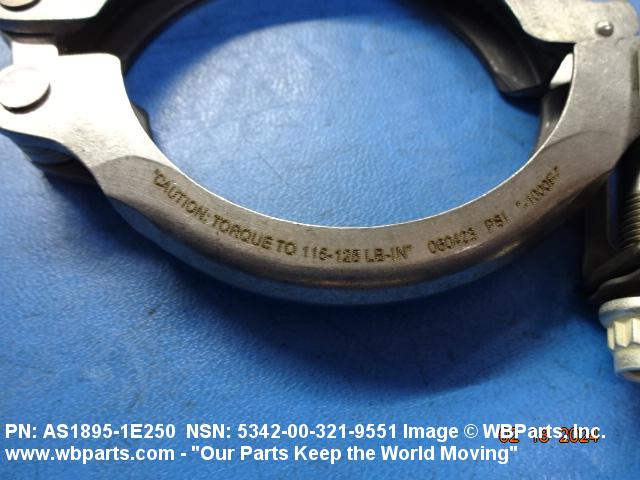

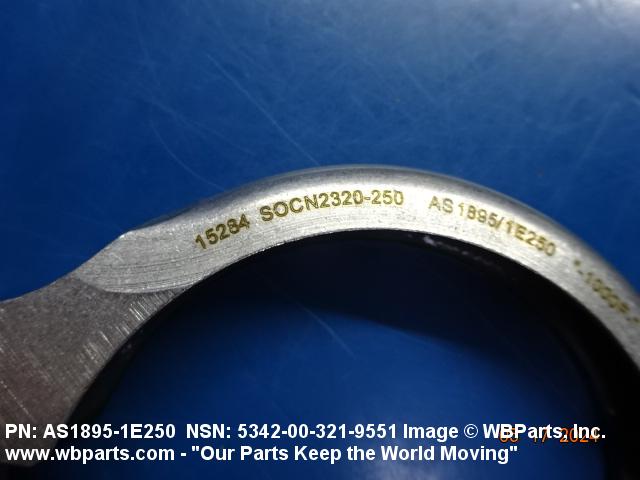

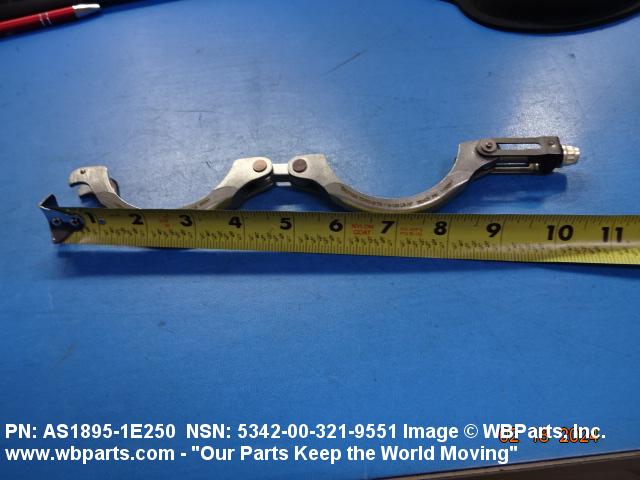

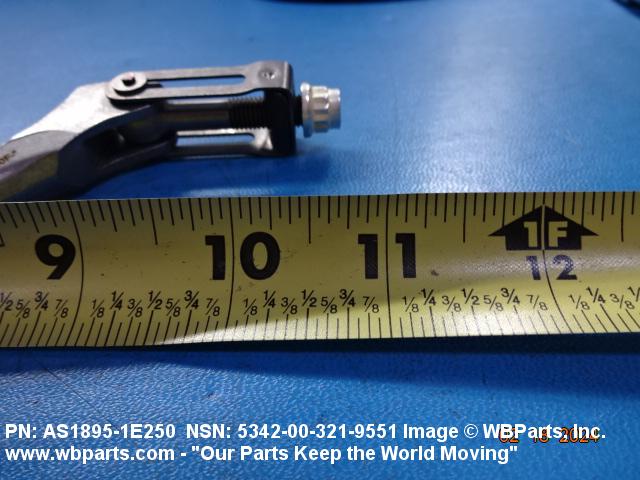

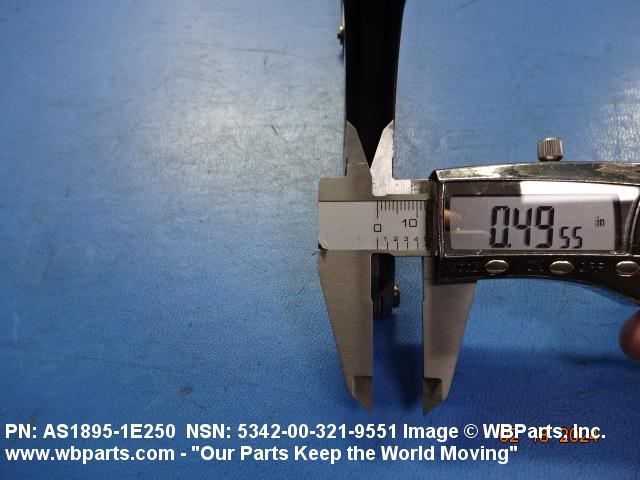

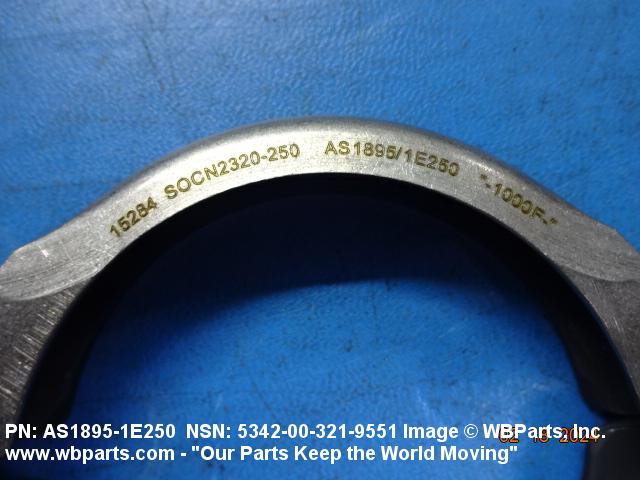

Drawings & Photos | NSN 5342-00-321-9551

Part Number	Request Date	QTY	Origin
AS18951E250	2025-02-49	6	United States
AS18951E250	2024-05-136	2	United States
AS18951E250	2024-02-45	1	United States
AS18951E250	2024-02-45	8	United States
AS18951E250	2024-02-45	15	United States
AS18951E250	2024-02-38	1	United States
2320250	2023-08-222	1	United States
AS18951E250	2023-05-121	1	United States
5342-00-321-9551	2023-04-116	1	DIBBS
5342-00-321-9551	2022-08-237	140	DIBBS
5342-00-321-9551	2022-03-75	11	US
5342-00-321-9551	2022-03-75	178	DIBBS
5342-00-321-9551	2021-12-354	220	DIBBS
5342-00-321-9551	2021-12-339	187	DIBBS
AS18951E250	2020-04-108	2	United States
AS18951E250	2020-04-104	2	CN
AS18951E250	2020-04-93	1	US
2320250	2019-11-323	6	TH
5342-00-321-9551	2018-06-175	111	DIBBS
5342-00-321-9551	2017-11-307	1	DIBBS-RFPs
5342-00-321-9551	2015-09-244	2	United States
AS18951E250	2015-08-236	2	United States
5342-00-321-9551	2015-04-96	1	DIBBS-RFPs
5342-00-321-9551	2015-03-60	160	DIBBS
5342-00-321-9551	2014-11-328	231	DIBBS
5342-00-321-9551	2014-11-307	74	DIBBS
5342-00-321-9551	2014-08-218	159	DIBBS
5342-00-321-9551	2014-06-161	205	DIBBS
5342-00-321-9551	2014-02-41	109	DIBBS
5342-00-321-9551	2013-10-282	122	DIBBS
5342-00-321-9551	2013-09-258	78	DIBBS
5342-00-321-9551	2013-07-185	90	DIBBS
5342-00-321-9551	2013-05-142	300	DIBBS
5342-00-321-9551	2013-05-140	300	DIBBS
5342-00-321-9551	2013-03-80	300	US
5342-00-321-9551	2013-03-72	300	DIBBS
5342-00-321-9551	2013-03-64	89	DIBBS
5342-00-321-9551	2012-07-199	80	DIBBS
5342-00-321-9551	2012-06-158	83	DIBBS
5342-00-321-9551	2012-03-74	75	DIBBS
5342-00-321-9551	2011-12-343	111	DIBBS
5342-00-321-9551	2011-12-342	111	DIBBS
5342-00-321-9551	2011-09-250	43	DIBBS
5342-00-321-9551	2011-07-211	64	DIBBS
5342-00-321-9551	2011-06-172	64	DIBBS
5342-00-321-9551	2011-05-147	66	DIBBS
AS18951E250	2011-03-84	3	us
5342-00-321-9551	2010-12-351	80	DIBBS
5342-00-321-9551	2010-09-272	55	DIBBS
5342-00-321-9551	2010-08-230	65	DIBBS
5342-00-321-9551	2010-08-228	103	DIBBS
ST7M276250	2009-08-222	4	South Korea
ST7M276250	2009-08-222	4	South Korea
ST7M276250	2009-08-222	10	South Korea
5342-00-321-9551	2008-10-294	325	DIBBS
5342-00-321-9551	2008-08-224	400	DIBBS
5342-00-321-9551	2008-06-176	400	DIBBS
5342-00-321-9551	2008-06-162	119	DIBBS

Cross Reference | NSN 5342-00-321-9551

Part Number	Cage Code	Manufacturer
2320-250	15284	EATON CORPORATION DBA FLUID CONVEYANCE
2320-250	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
52242AE250	94581	V I J CORPORATION DBA NUCO
AS1895/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS1895/1E250	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ST7M276-250	76301	BOEING COMPANY, THE DBA BOEING
VR1026-250	14242	VOSS INDUSTRIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-00-321-9551

Compare

Related Products | NSN 5342-00-321-9551

5342-00-322-0731, 5342-00-322-1253, 5342-00-322-2313, 5342-00-322-3472, 5342-00-322-8741

Technical Data | NSN 5342-00-321-9551

Characteristic	Specifications
CROSS-SECTIONAL SHAPE STYLE	10 GROOVED RETAINER

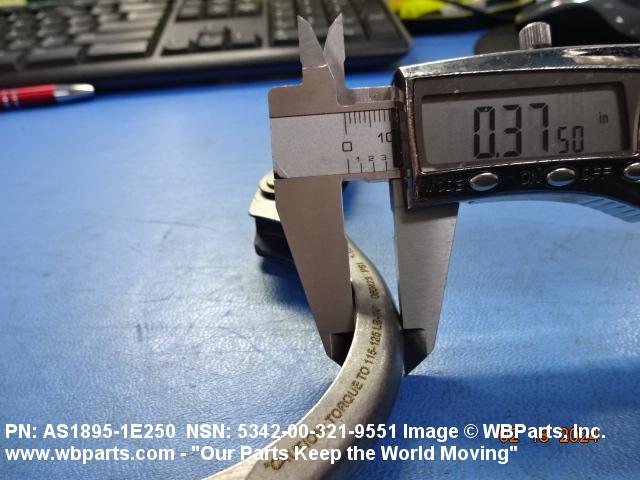

RETAINER THICKNESS	0.105 INCHES NOMINAL

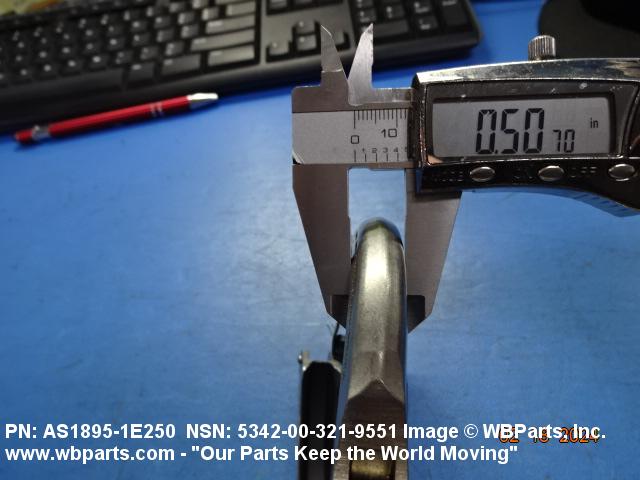

RETAINER WIDTH	0.535 INCHES NOMINAL
HEIGHT	0.275 INCHES NOMINAL
INCLUDED ANGLE IN DEG	38.0
MATERIAL AND LOCATION	NICKEL ALLOY, AMS 5596 LATCH IRON ALLOY, AMS 5732, COMP 660 BOLT IRON ALLOY, AMS 5732, COMP 660 NUT IRON ALLOY, AMS 5732, COMP 660 TRUNNION
SURFACE TREATMENT AND LOCATION	SILVER PLATED NUT PASSIVATED, QQ-P-35 BOLT PASSIVATED, QQ-P-35 QUICK RELEASE CATCH PASSIVATED, QQ-P-35 TRUNNION PASSIVATED, QQ-P-35 BAND
SHAPE	ROUND

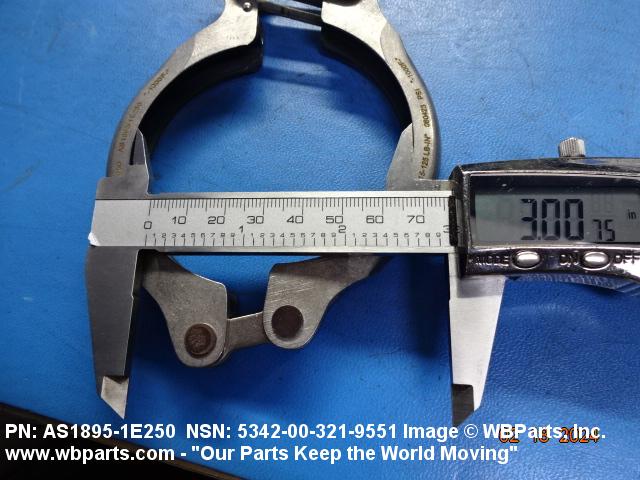

INSIDE DIAMETER	3.000 INCHES NOMINAL
