NSN 5342-00-201-9965 17J03, 4024T95P01, 4024T95P03
Product Details | GROOVED CLAMP COUPLING
5342-00-201-9965 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 17J03, 4024T95P01, 4024T95P03, 4464AA, 5342-00-201-9965, 00-201-9965, 5342002019965, 002019965
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1973 | 00-201-9965 | 20319 ( COUPLING, CLAMP, GROOVED ) |

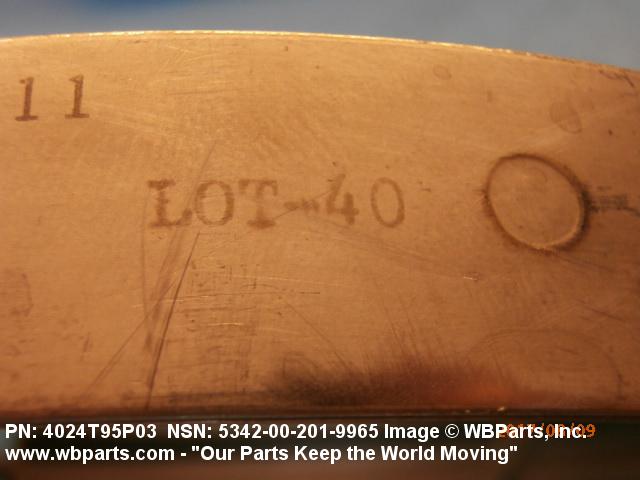

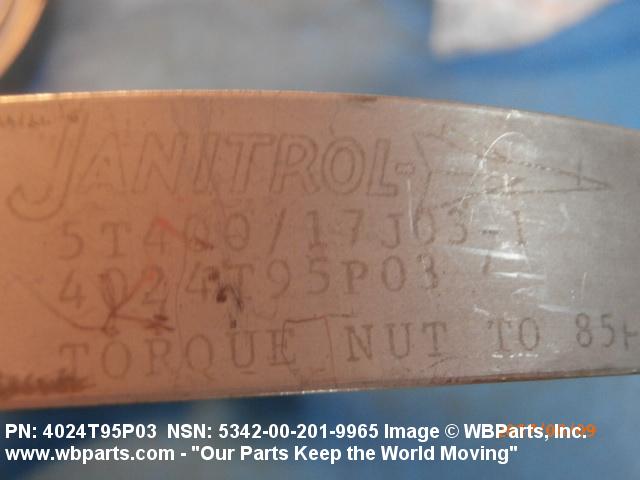

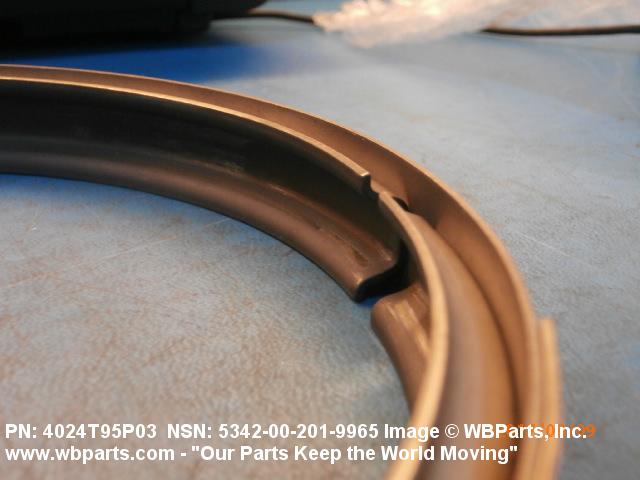

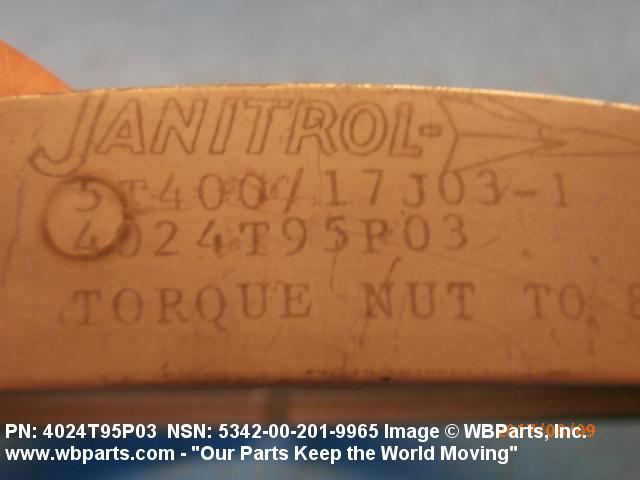

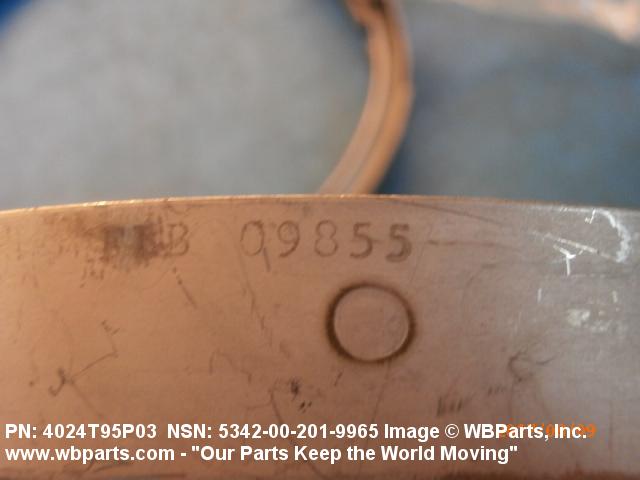

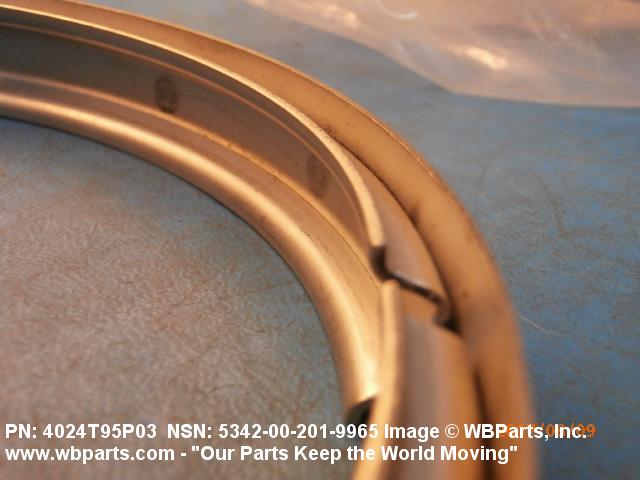

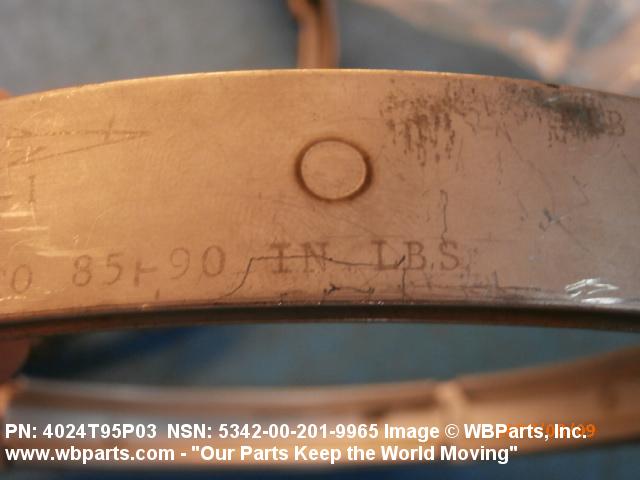

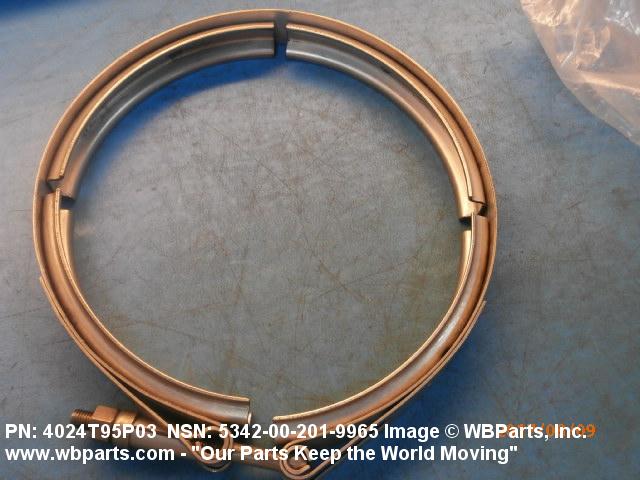

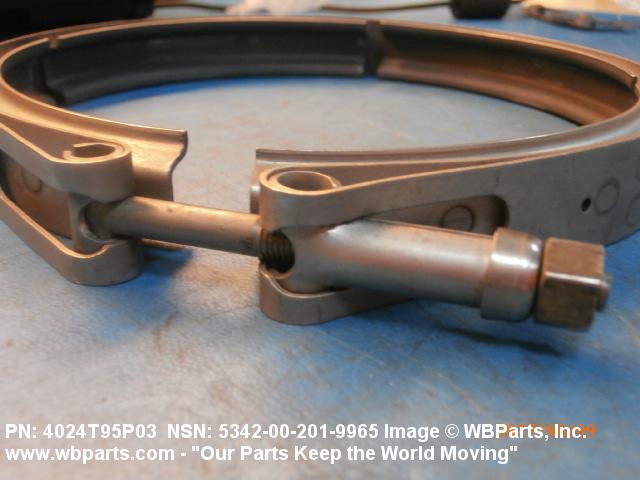

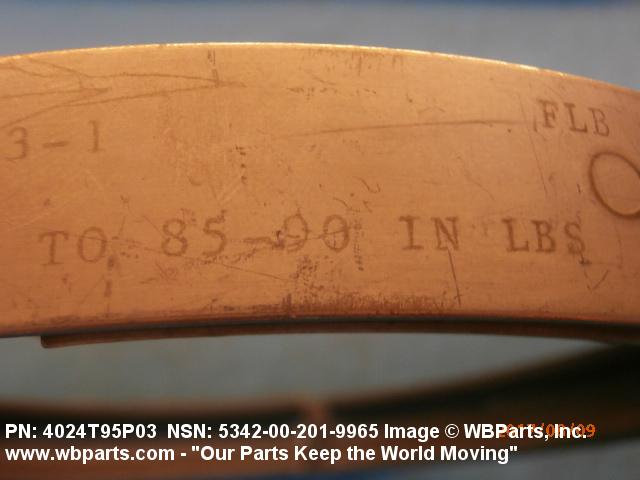

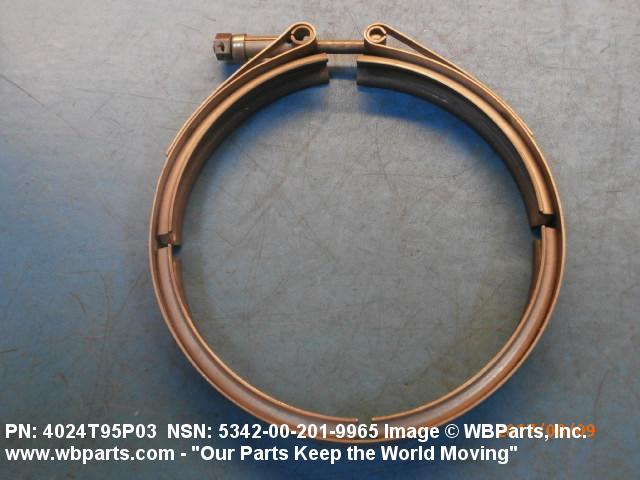

Drawings & Photos | NSN 5342-00-201-9965
Demand History | NSN 5342-00-201-9965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-201-9965 | 2017-08-213 | 2 | United States |
| 5342-00-201-9965 | 2017-04-101 | 47 | DIBBS |
| 5342-00-201-9965 | 2016-05-136 | 62 | DIBBS |
| 5342-00-201-9965 | 2015-02-39 | 48 | DIBBS |
| 5342-00-201-9965 | 2014-10-293 | 38 | DIBBS |
| 5342-00-201-9965 | 2013-04-97 | 31 | DIBBS |
| 5342-00-201-9965 | 2012-11-333 | 37 | DIBBS |
| 5342-00-201-9965 | 2012-09-256 | 28 | DIBBS |
| 5342-00-201-9965 | 2011-10-293 | 30 | DIBBS |
| 5342-00-201-9965 | 2009-03-63 | 22 | DIBBS |
| 5342-00-201-9965 | 2008-10-297 | 15 | DIBBS |
| 5342-00-201-9965 | 2008-07-204 | 12 | DIBBS |
| 5342-00-201-9965 | 2008-05-123 | 20 | DIBBS |
Cross Reference | NSN 5342-00-201-9965
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-201-9965
Related Products | NSN 5342-00-201-9965
Technical Data | NSN 5342-00-201-9965

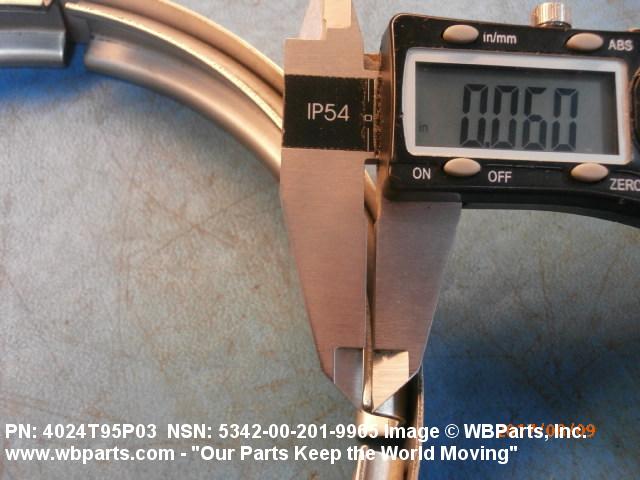

| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER THICKNESS | 0.058 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |

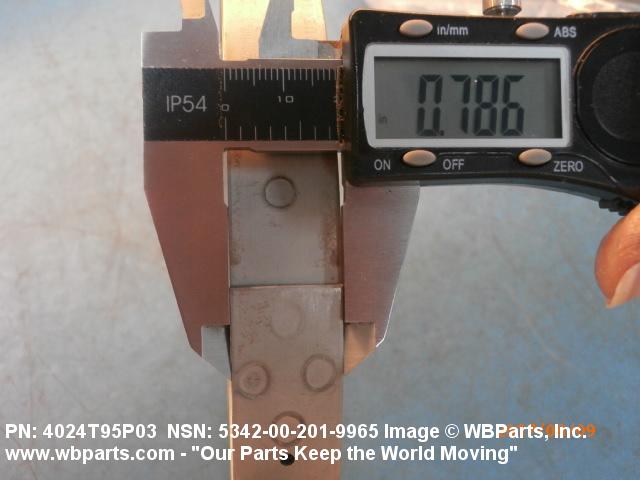

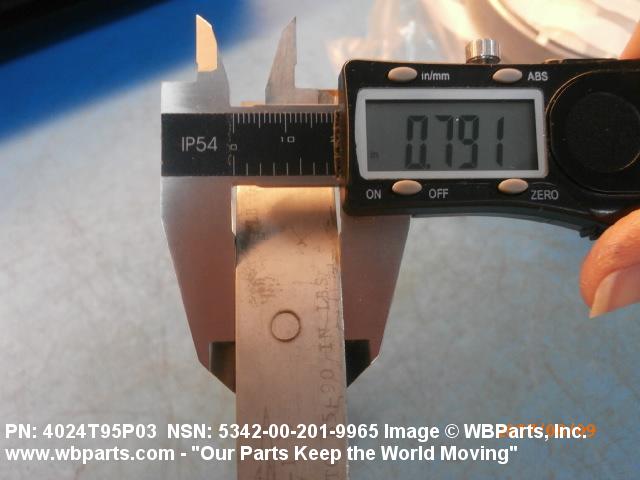

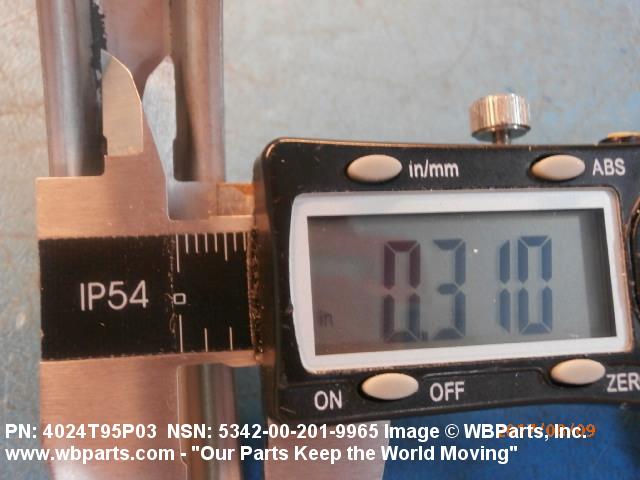

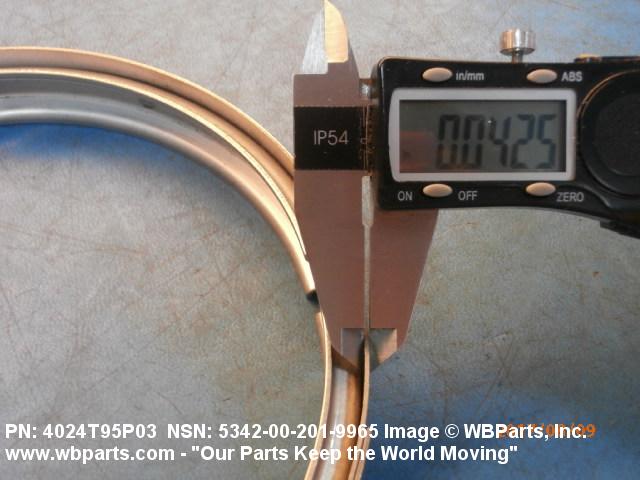

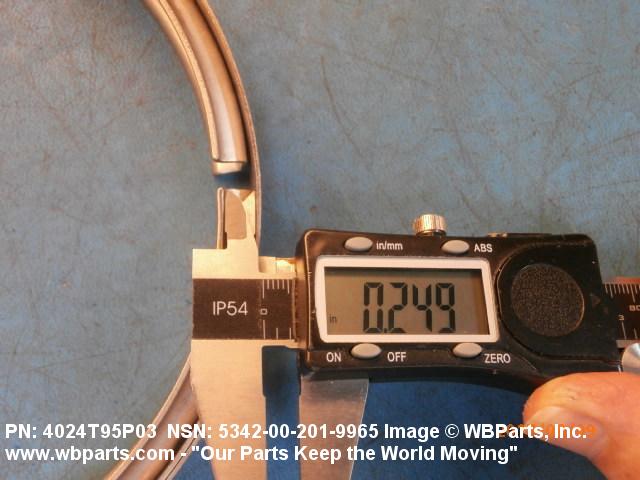

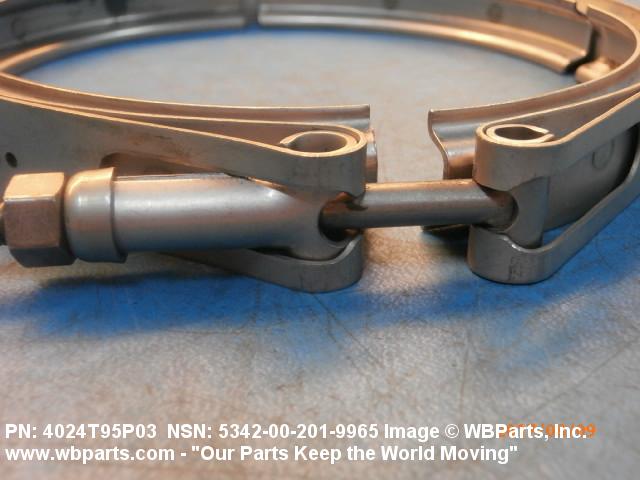

| RETAINER WIDTH | 0.740 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| ROOT WIDTH | 0.310 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |
| BAND THICKNESS | 0.036 INCHES MINIMUM AND 0.044 INCHES MAXIMUM |
| BAND WIDTH | 0.780 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| HEIGHT | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| INCLUDED ANGLE IN DEG | 42.0 |
| MATERIAL AND LOCATION | IRON ALLOY, AMS 5737, COMP 660 BOLT |
| SHAPE | ROUND |
| LATCH STYLE | 31 SINGLE |
| NUT TYPE | PLAIN HEXAGON |
| DRILLED LOCKWIRE HOLE | INCLUDED |
| SEGMENT QUANTITY | 4 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 275.0 DEG FAHRENHEIT |
| MAXIMUM LOAD RATING | NOT RATED |
