NSN 5342-00-092-6372 MS2711615B, MS27116-15B, AS5355/3-15B

Product Details | GROOVED CLAMP COUPLING

5342-00-092-6372 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: MS2711615B, MS27116-15B, AS5355/3-15B, AS5355315B, SAE AS5355, SAEAS5355, 8131A6M388A, 8131A6M-388A, 5342-00-092-6372, 00-092-6372, 5340000926372 , 5342000926372, 000926372

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 DEC 1972	00-092-6372	20319 ( COUPLING, CLAMP, GROOVED )

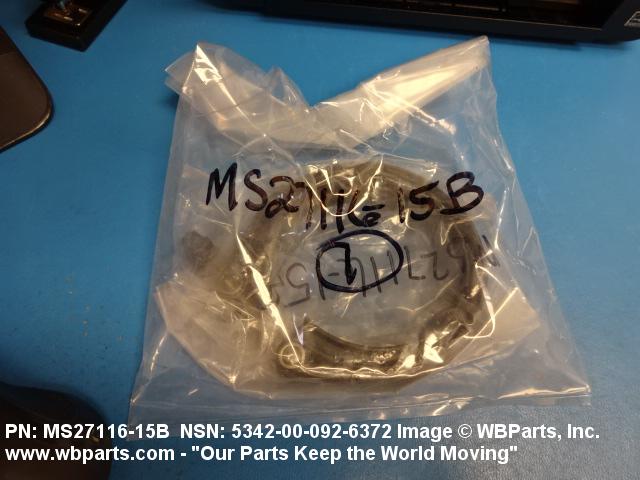

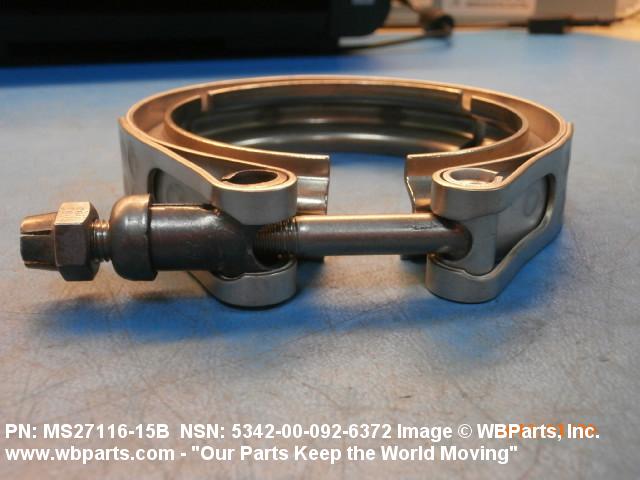

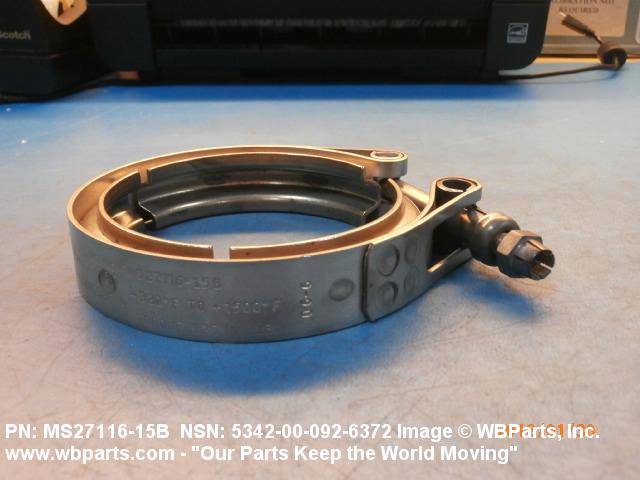

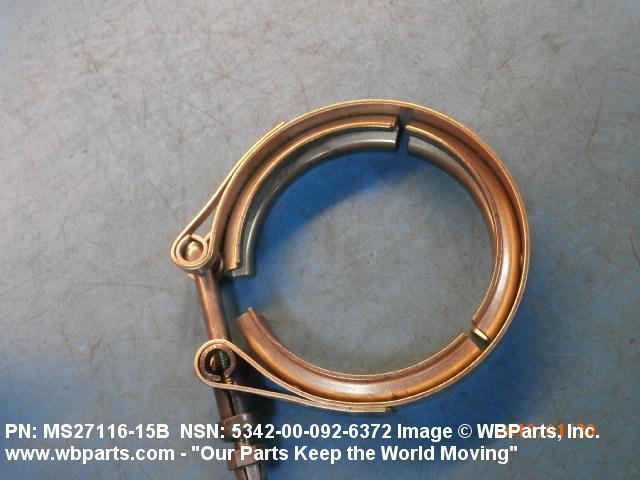

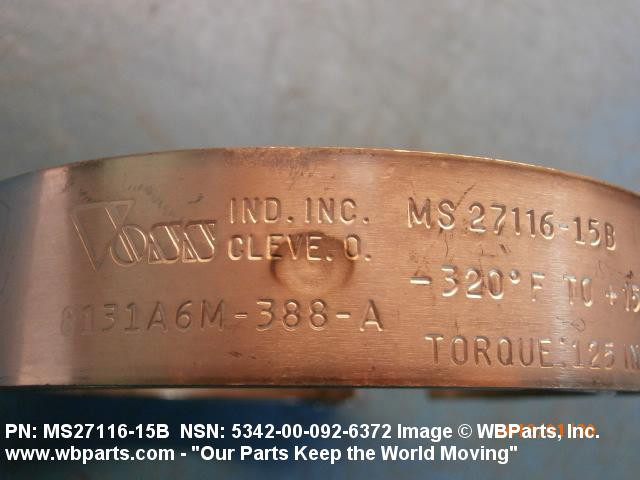

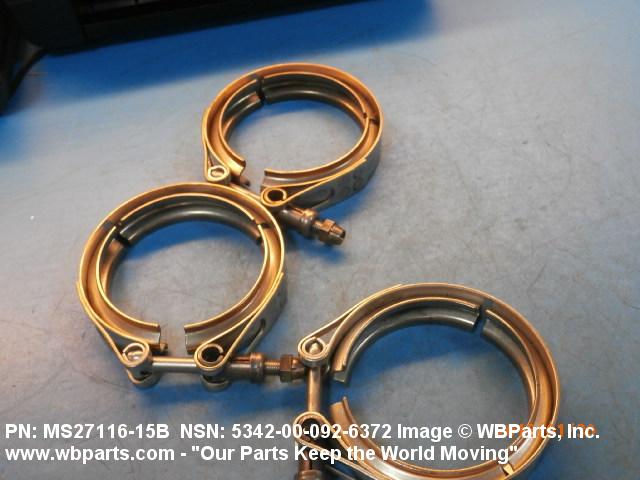

Drawings & Photos | NSN 5342-00-092-6372

Part Number	Request Date	QTY	Origin
8131A6M388A	2024-12-336	1	US
5342-00-092-6372	2024-09-264	8	UK
5342-00-092-6372	2024-09-261	28	US
5342-00-092-6372	2024-08-234	2000	DIBBS
5342-00-092-6372	2024-03-71	899	DIBBS
5342-00-092-6372	2024-03-63	899	DIBBS
5342-00-092-6372	2024-01-02	2359	DIBBS
5342-00-092-6372	2023-12-359	2359	DIBBS
5342-00-092-6372	2023-08-225	40	us
5342-00-092-6372	2023-07-191	60	us
AS5355315B	2023-05-145	1	United States
5342-00-092-6372	2023-03-63	0	US
5342-00-092-6372	2023-03-62	4111	DIBBS
5342-00-092-6372	2023-03-60	4111	DIBBS
5342-00-092-6372	2022-12-356	1771	DIBBS
5342-00-092-6372	2022-12-348	1771	DIBBS
5342-00-092-6372	2022-05-150	3239	DIBBS
5342-00-092-6372	2022-04-119	50	United States
5342-00-092-6372	2022-02-48	653	DIBBS
5342-00-092-6372	2021-10-290	1197	DIBBS
5342-00-092-6372	2021-07-196	2407	DIBBS
5342-00-092-6372	2020-10-300	4	US
5342-00-092-6372	2020-10-293	1	United States
5342-00-092-6372	2020-08-240	10	United States
5342-00-092-6372	2020-08-226	33	DIBBS
5342-00-092-6372	2020-08-217	2330	DIBBS
5342-00-092-6372	2020-03-79	52	DIBBS
5342-00-092-6372	2020-03-64	620	DIBBS
AS5355315B	2018-10-285	4	United States
AS5355315B	2018-08-240	1	United States
5342-00-092-6372	2017-11-332	1	DIBBS-RFPs
5342-00-092-6372	2016-12-349	3	US
5342-00-092-6372	2016-10-283	3	us
MS2711615B	2016-09-260	3	us
5342-00-092-6372	2016-02-40	653	DIBBS
5342-00-092-6372	2016-01-08	100	United States
5342-00-092-6372	2015-11-310	1	DIBBS-RFPs
5342-00-092-6372	2015-08-219	100	United States
5342-00-092-6372	2015-07-195	678	DIBBS
5342-00-092-6372	2014-10-288	10	United States
5342-00-092-6372	2014-02-51	1094	DIBBS
5342-00-092-6372	2014-01-28	768	DIBBS
5342-00-092-6372	2013-11-331	1	DIBBS-RFPs
5342-00-092-6372	2013-11-308	816	DIBBS
5342-00-092-6372	2013-08-230	727	DIBBS
AS5355315B	2013-08-213	32	United States
AS5355315B	2013-08-213	50	United States
5342-00-092-6372	2013-05-150	2	US
5342-00-092-6372	2012-10-299	1070	DIBBS
5342-00-092-6372	2012-08-221	825	DIBBS
5342-00-092-6372	2009-07-210	477	DIBBS
MS2711615B	2009-03-83	2	US
MS2711615B	2007-08-233	100	US

Cross Reference | NSN 5342-00-092-6372

Part Number	Cage Code	Manufacturer
5340000926372	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8131A6M-388A	14242	VOSS INDUSTRIES, INC.
AS5355/3-15B	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AS5355/3-15B	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27116-15B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SAE AS5355	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-00-092-6372

Compare

Related Products | NSN 5342-00-092-6372

5342-00-092-6433, 5342-00-092-6441, 5342-00-092-6933, 5342-00-092-7108, 5342-00-092-7827

Technical Data | NSN 5342-00-092-6372

Characteristic	Specifications
CROSS-SECTIONAL SHAPE STYLE	1 GROOVED RETAINER

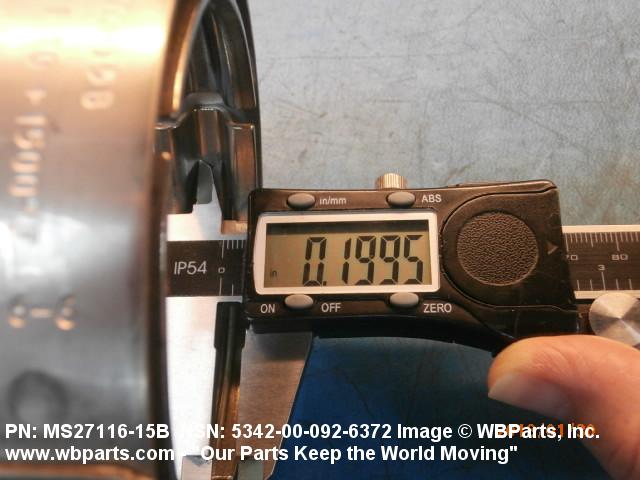

ROOT WIDTH	0.197 INCHES MINIMUM AND 0.217 INCHES MAXIMUM
BAND THICKNESS	ANY ACCEPTABLE

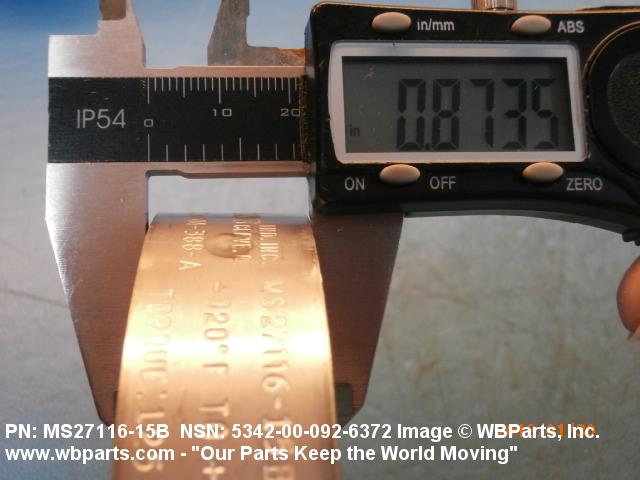

BAND WIDTH	0.950 INCHES NOMINAL
HEIGHT	0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM
INCLUDED ANGLE IN DEG	40.0
MATERIAL AND LOCATION	STEEL, CORROSION RESISTING OVERALL
SURFACE TREATMENT AND LOCATION	PASSIVATED OVERALL
SHAPE	ROUND

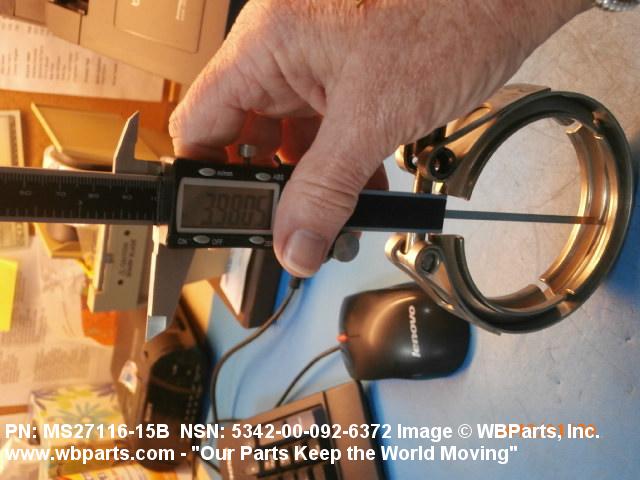

INSIDE DIAMETER	3.820 INCHES MINIMUM AND 3.910 INCHES MAXIMUM
LATCH STYLE	31 SINGLE

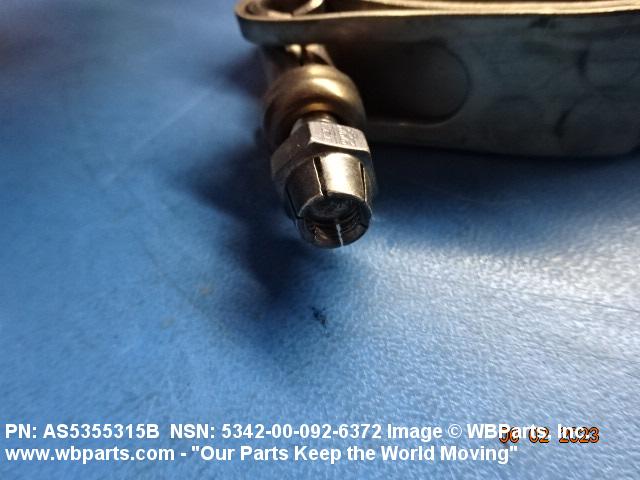

NUT TYPE	SELF-LOCKING HEXAGON
SEGMENT QUANTITY	ANY ACCEPTABLE
SEALING INNER LINER	NOT INCLUDED

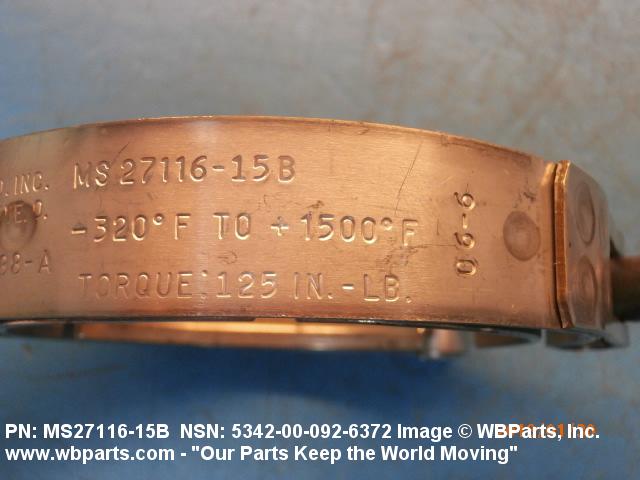

TEMP RATING	-320.0 DEG FAHRENHEIT AND 1500.0 DEG FAHRENHEIT
MAXIMUM LOAD RATING	17600.0 POUNDS

Restrictions/Controls & Freight Information | NSN 5342-00-092-6372

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5342-00-092-6372

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
