Product Details | LOOP CLAMP

5340-01-567-9492 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: AS21919, AS21919WCH09, 5340-01-567-9492, 01-567-9492, 5340015679492, 015679492

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 14 OCT 2008 01-567-9492

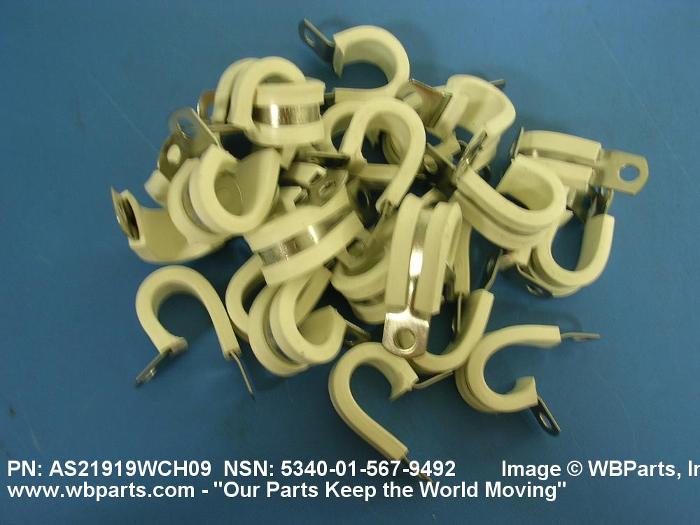

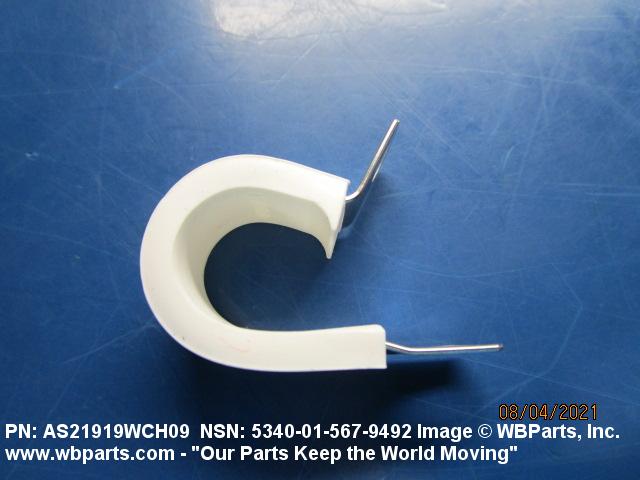

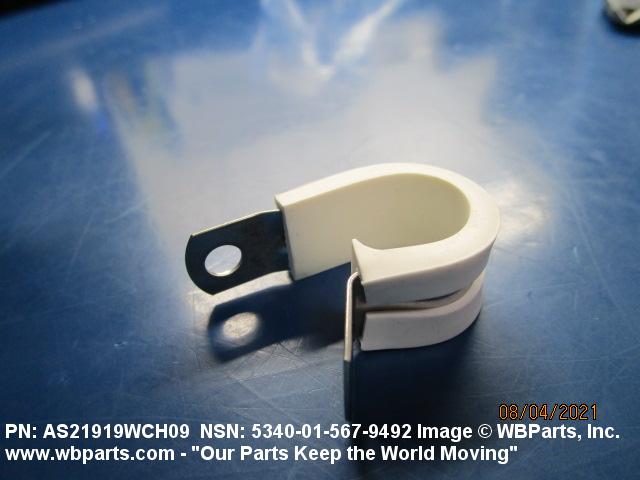

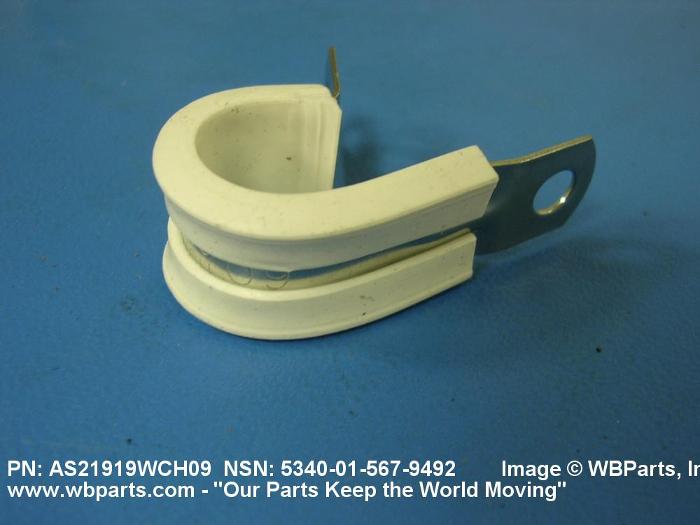

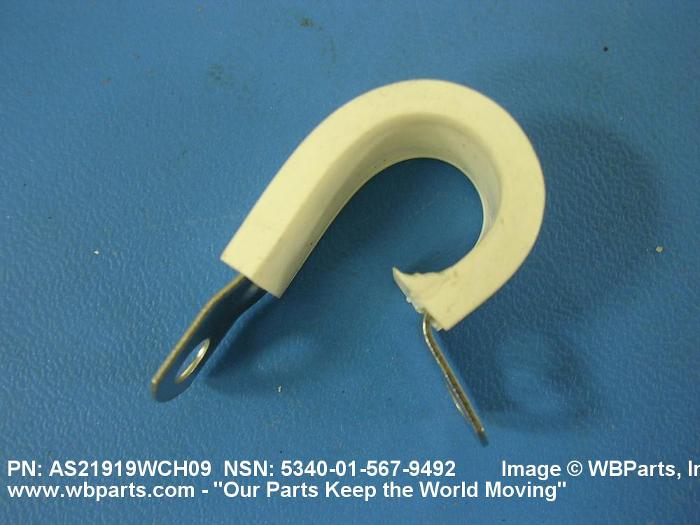

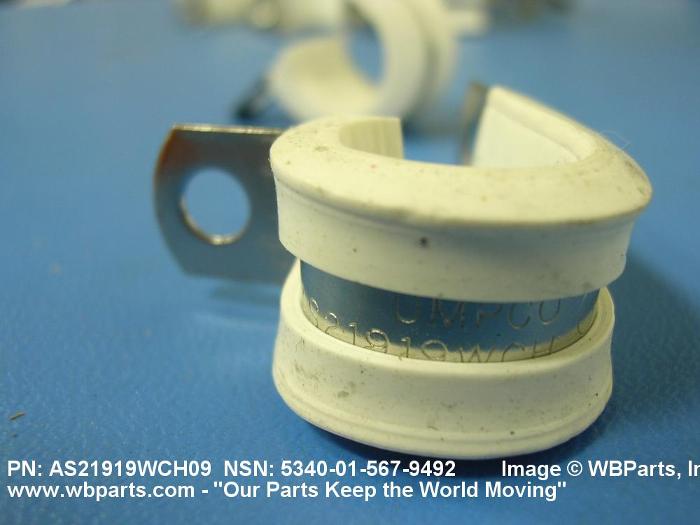

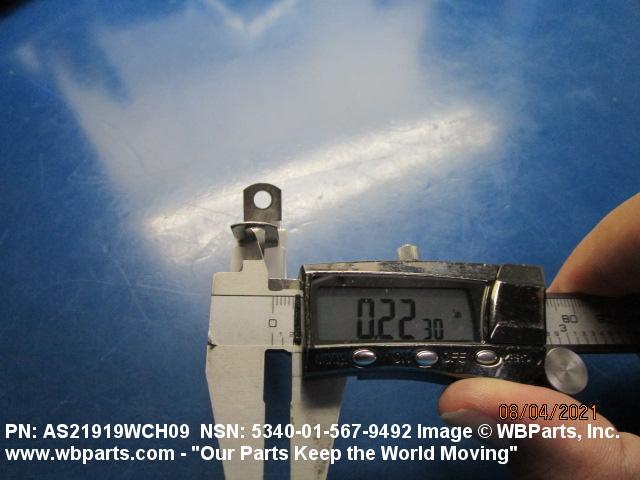

Drawings & Photos | NSN 5340-01-567-9492


Demand History | NSN 5340-01-567-9492

Part Number Request Date QTY Origin
AS21919WCH09 2024-06-162 100 us
AS21919WCH09 2021-08-222 8 United States
5340-01-567-9492 2021-07-210 25 United States
5340-01-567-9492 2021-06-158 30 US
AS21919WCH09 2019-04-98 10 TR
AS21919 2017-11-312 50 Korea
5340-01-567-9492 2017-05-124 1 US
AS21919WCH09 2014-11-324 100 Turkey
5340-01-567-9492 2014-03-70 5 DIBBS
5340-01-567-9492 2014-02-55 5 DIBBS
5340-01-567-9492 2014-02-55 161 DIBBS
AS21919WCH09 2008-09-246 225 US
AS21919WCH09 2008-06-161 15 United States
AS21919WCH09 2006-05-129 100 us

Cross Reference | NSN 5340-01-567-9492

Part Number Cage Code Manufacturer
AS21919 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21919WCH09 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-567-9492

Technical Data | NSN 5340-01-567-9492

Characteristic Specifications
SURFACE TREATMENT PASSIVATE BAND
MATERIAL THICKNESS 0.032 INCHES NOMINAL
MATERIAL RUBBER SILICONE CLASS Q CUSHION
TONGUE HOLE TYPE ROUND, UNTHREADED
CUSHIONING ENVIRONMENTAL PROTECTION CORROSION RESISTANT AND WEATHER RESISTANT AND OIL RESISTANT
PART NAME ASSIGNED BY CONTROLLING AGENCY CLAMP.LOOP
OVERALL WIDTH 0.375 INCHES NOMINAL
STYLE DESIGNATOR OFFSET MOUNT
MATERIAL DOCUMENT AND CLASSIFICATION AMS3303 ASSN STD SINGLE MATERIAL RESPONSE CUSHION

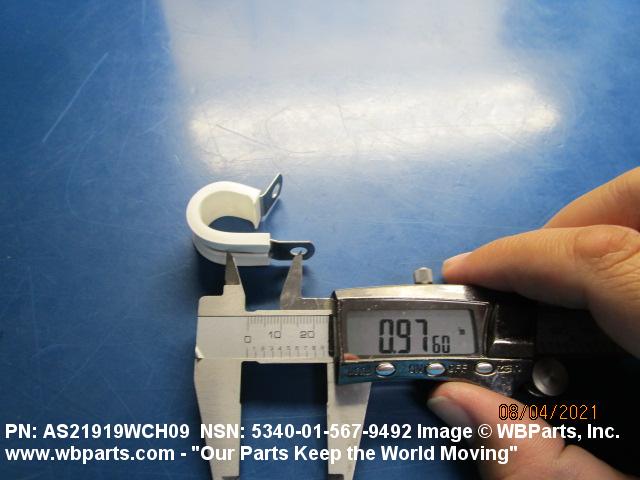

DISTANCE FROM LOOP CENTER TO TONGUE END 0.971 INCHES NOMINAL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BAND

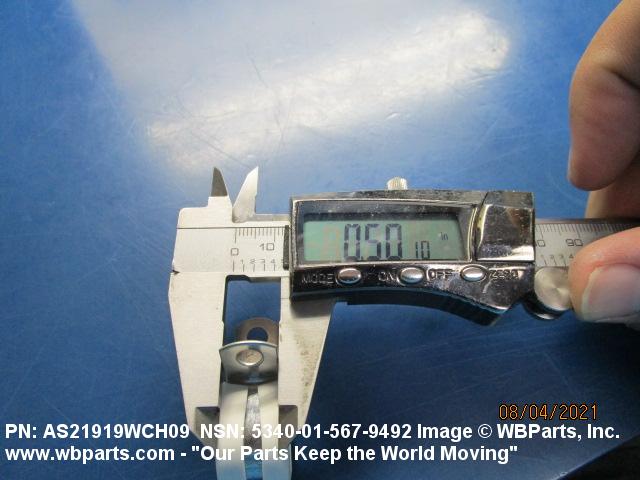

LOOP INSIDE DIAMETER 0.548 INCHES MINIMUM AND 0.578 INCHES MAXIMUM
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-6721 MIL SPEC SINGLE MATERIAL RESPONSE BAND
SPECIFICATION/STANDARD DATA 81343-AS21919WCH9 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION
DIAMETER 0.563 INCHES NOMINAL

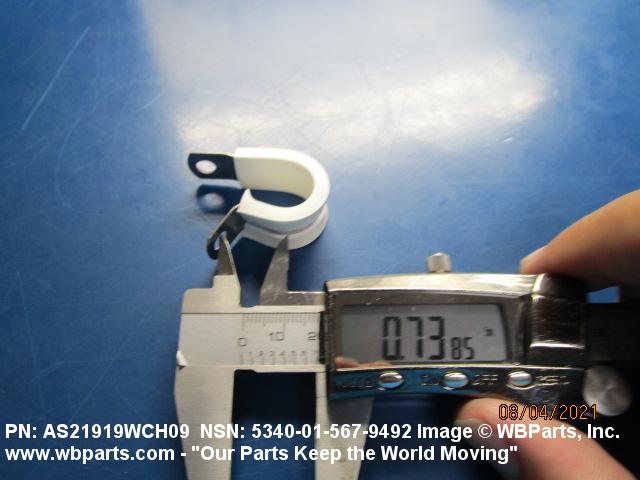

CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE 0.734 INCHES MINIMUM AND 0.764 INCHES MAXIMUM
MATERIAL STEEL COMP 321 BAND
TEST DATA DOCUMENT AS21919WCH9 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).

Restrictions/Controls & Freight Information | NSN 5340-01-567-9492

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code EI
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-01-567-9492

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
