NSN 5340-01-560-7197 SWHS4NO, S-WHS-4-NO, Q7139231
Product Details | CASTER FRAME
5340-01-560-7197 A metallic or nonmetallic item of various shapes designed for use as part of a CASTER, RIGID and/or CASTER, SWIVEL.
Part Alternates: SWHS4NO, S-WHS-4-NO, Q7139231, 5340-01-560-7197, 01-560-7197, 5340015607197, 015607197
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 2008 | 01-560-7197 | 42735 ( FRAME, CASTER ) |

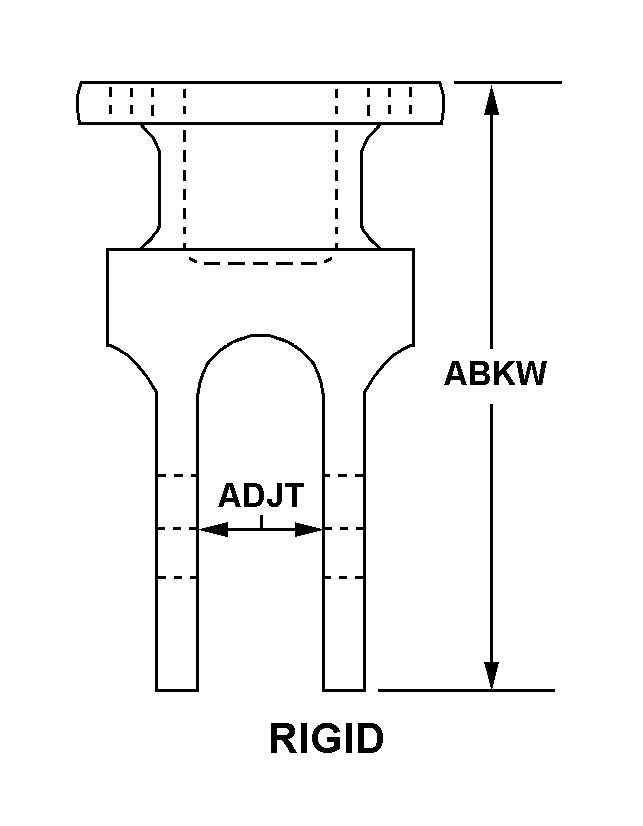

Drawings & Photos | NSN 5340-01-560-7197
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-560-7197
Related Products | NSN 5340-01-560-7197
Technical Data | NSN 5340-01-560-7197
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | AABSTEEL,CORROSION RESISTANT |
| FRAME STYLE | 1 RIGID |
| OVERALL HEIGHT | 4.625 INCHES NOMINAL |
| INSIDE WIDTH | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | MOUNTING PLATE OVERALL LENGTH IS 5.000 IN (NOM); MOUNTING PLATE OVERALL WIDTH IS 4.000 IN (NOM); 4 SLOTS IN EACH CORNER OF MOUNTING PLATE FOR 0.375 IN BOLTS; MOUNTING PLATE THICKNESS OVERALL IS 0.250 IN (NOM) |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | STAINLESS STEEL SET (RIG,SWIVEL) |
| III END ITEM IDENTIFICATION | 8196973(53711) MAINTENANCE AND VHTE INSTALLATION |
Restrictions/Controls & Freight Information | NSN 5340-01-560-7197
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-560-7197
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
