NSN 5340-01-555-3461 5051SE, 505-1SE, 01-555-3461
Product Details | GENERAL PURPOSE RESILIENT MOUNT
5340-01-555-3461 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for an item to be isolated. Excludes MOUNT, RESILIENT, WEAPON SYSTEM; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dashpots, grommets and shock pads.
Part Alternates: 5051SE, 505-1SE, 5340-01-555-3461, 01-555-3461, 5340015553461, 015553461
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 SEP 2007 | 01-555-3461 | 53590 ( MOUNT, RESILIENT, UTILITY ) |
Drawings & Photos | NSN 5340-01-555-3461
Cross Reference | NSN 5340-01-555-3461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 505-1SE | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-555-3461
Technical Data | NSN 5340-01-555-3461
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND PLASTIC SILICONE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |

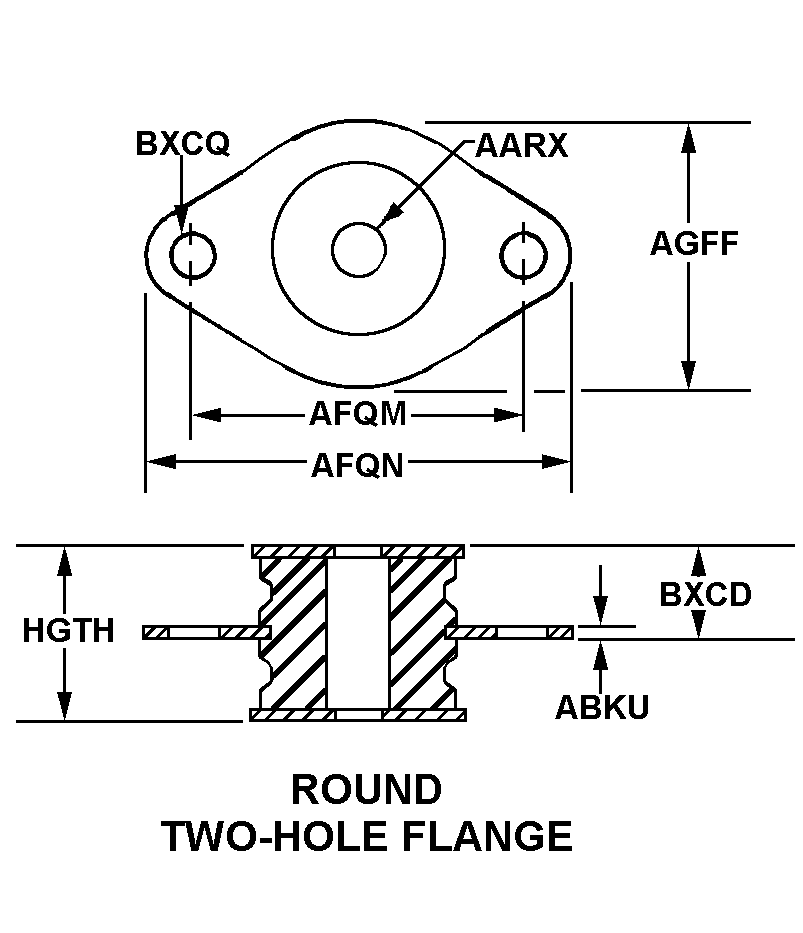

| STYLE DESIGNATOR | 51 ROUND TWO-HOLE FLANGE |
| HEIGHT | 1.220 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |
| STATIC LOAD RATING | 12.500 POUNDS MINIMUM AND 38.000 POUNDS MAXIMUM |
| LENGTH | 3.750 INCHES NOMINAL |
| WIDTH | 1.970 INCHES MINIMUM AND 2.030 INCHES MAXIMUM |
| SPECIAL FEATURES | MATERIAL: SINTERED METAL AND COLD-ROLLED STEEL. WEIGHT: 0.25 LBS. BUMBER IS SILICONE. ELECTROLESS NICKEL. COLOR CODE IS RED AND WHITE. NATURAL FREQUENCY IS 8-18 HERTZ. TRANSMISSIBILITY AT RESONANCE: 8:1. RRP 117 QTY, P/N 77A106650G001. |
| END ITEM IDENTIFICATION | RADAR SET |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BONDED TUBE MOUNT |
Restrictions/Controls & Freight Information | NSN 5340-01-555-3461
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
