NSN 5340-01-533-2614 A3192711, A3192711105, A3192711-105
Product Details | EXTENSION DRAWER SLIDE
5340-01-533-2614 An item designed to be installed in a cabinet or rack to provide support and a sliding or rolling surface for a drawer, or the like. A portion of the slide extends with the drawer to provide support when the drawer is in the open position.
Part Alternates: A3192711, A3192711105, A3192711-105, 110C22B, 110C-22-B, 110Z2322B, 110Z23-22-B , 5340-01-533-2614, 01-533-2614, 5340015332614, 015332614
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 2005 | 01-533-2614 | 28191 ( SLIDE, DRAWER, EXTENSION ) |
Drawings & Photos | NSN 5340-01-533-2614
Demand History | NSN 5340-01-533-2614
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-533-2614 | 2013-09-255 | 2 | DIBBS |
Cross Reference | NSN 5340-01-533-2614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110C-22-B | 05236 | JONATHAN ENGINEERED SOLUTIONS CORP. DBA JONATHAN ENGINEERED SOLUTIONS |
| 110Z23-22-B | 05236 | JONATHAN ENGINEERED SOLUTIONS CORP. DBA JONATHAN ENGINEERED SOLUTIONS |
| A3192711 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| A3192711-105 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-533-2614
Related Products | NSN 5340-01-533-2614
Technical Data | NSN 5340-01-533-2614
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

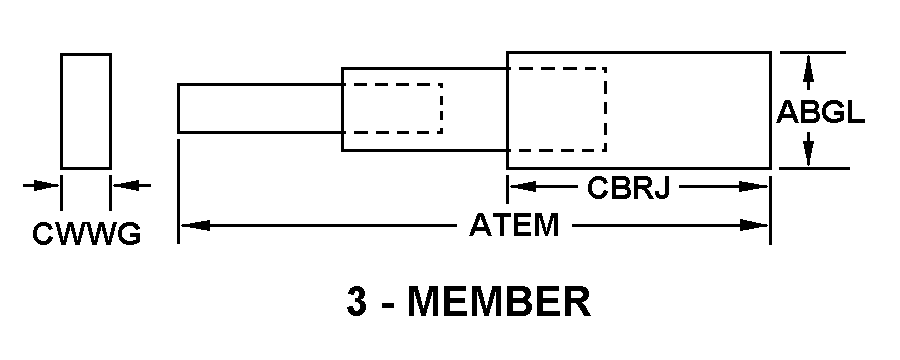

| STYLE DESIGNATOR | L5 3-MEMBER |
| WIDTH | 3.230 INCHES MINIMUM AND 3.270 INCHES MAXIMUM |
| EXTENDED LENGTH | 46.880 INCHES MINIMUM AND 47.120 INCHES MAXIMUM |
| CLOSED LENGTH | 21.970 INCHES MINIMUM AND 22.030 INCHES MAXIMUM |
| HEIGHT | 1.000 INCHES NOMINAL |
| MOUNTING METHOD | SCREW |
| SIDE FOR WHICH DESIGNED | LEFT HAND OR RIGHT HAND |
| SPECIAL FEATURES | OVERALL SIZE IS 22.00 INCHES CLOSED AND 47.00 INCHES EXTENDED. TRAVEL LENGTH IS 25.00 INCHES. LOAD MAXIMUM IS 100 LBS. PER PAIR. |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SLIDE,CHASSIS |
Restrictions/Controls & Freight Information | NSN 5340-01-533-2614
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096775 | SLIDES DRAWER/SHELF/TABLE STEEL |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-533-2614
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
