NSN 5340-01-530-1665 12648121, 1264812-1, 01-530-1665
Product Details | ACCESS DOOR HINGE
5340-01-530-1665 A one piece rigid item designed to rotate an access door into an open or closed position. It is drilled at one end to accommodate a shaft which serves as a pivot or axis. The other end has a curved base conforming to the contour of the access door. The base has mounting holes or other mounting facilities. Excludes LEAF, BUTT HINGE.
Part Alternates: 12648121, 1264812-1, 5340-01-530-1665, 01-530-1665, 5340015301665, 015301665
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 MAY 2005 | 01-530-1665 | 60594 ( HINGE, ACCESS DOOR ) |
Drawings & Photos | NSN 5340-01-530-1665
Cross Reference | NSN 5340-01-530-1665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1264812-1 | 04DG4 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS(MARION, VA) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-530-1665
Related Products | NSN 5340-01-530-1665
Technical Data | NSN 5340-01-530-1665
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY BODY AND STEEL PIN |

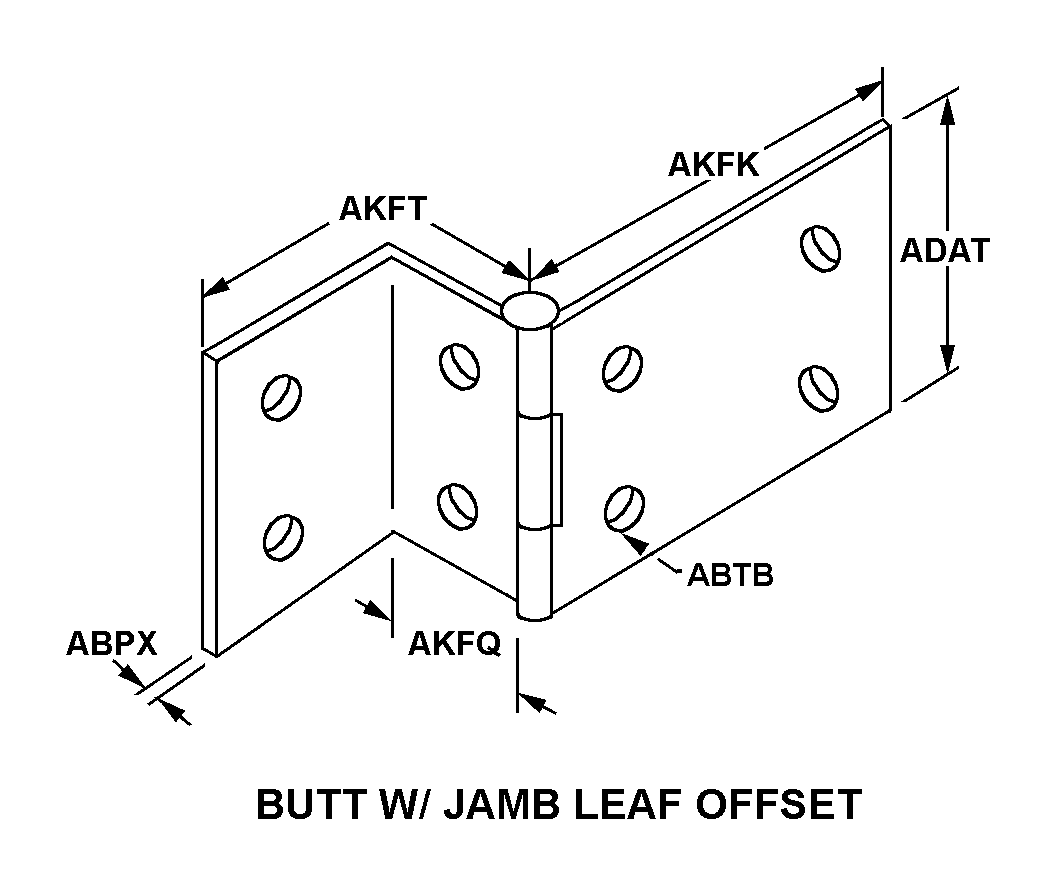

| STYLE DESIGNATOR | 29 BUTT W/JAMB LEAF OFFSET |
| MATERIAL THICKNESS | 0.093 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.195 INCHES NOMINAL |
| BODY WIDTH | 4.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 2.750 INCHES NOMINAL |
| JAMB LEAF OFFSET DISTANCE | 0.820 INCHES NOMINAL |
| DEVELOPED DISTANCE FROM PIN CENTER TO OFFSET JAMB LEAF EDGE | 1.250 INCHES NOMINAL |
| PIN TIP STYLE | 4 OVAL HEAD |
| MOUNTING HOLE QUANTITY | 7 |
| III END ITEM IDENTIFICATION | 8S-842/G |
Restrictions/Controls & Freight Information | NSN 5340-01-530-1665
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095290 | HINGES/BUTTS NOI METAL O/T I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
