NSN 5340-01-526-8916 E31330, E3-13-30, 01-526-8916
Product Details | MORTISE LATCH
5340-01-526-8916 A latch designed to be fitted into the edge of a door, drawer, or the like. The latch does not include knob(s), thumb piece(s), rose(s), strike(s), door pull(s), release bar(s), and the like.
Part Alternates: E31330, E3-13-30, 5340-01-526-8916, 01-526-8916, 5340015268916, 015268916
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 2005 | 01-526-8916 | 20257 ( LATCH, MORTISE ) |
Drawings & Photos | NSN 5340-01-526-8916
Cross Reference | NSN 5340-01-526-8916
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E3-13-30 | 94222 | SOUTHCO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-526-8916
Technical Data | NSN 5340-01-526-8916
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING HOUSING STEEL CORROSION RESISTING SPRING |
| SURFACE TREATMENT | PASSIVATE HOUSING |

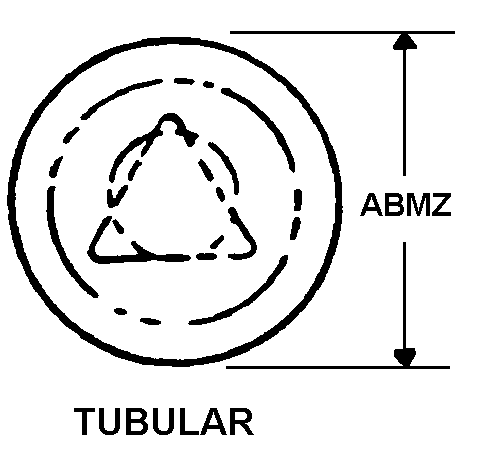

| STYLE DESIGNATOR | P1 TUBULAR |
| DIAMETER | 43.9 MILLIMETERS MINIMUM AND 59.6 MILLIMETERS MAXIMUM |
| ACTION TYPE | SPRING |
| OPERATING MECHANISM LOCATION | ONE SIDE |
| FEATURES PROVIDED | PAWL ADJUSTABILITY |
| SPECIAL FEATURES | NEOPRENE FLANGE GASKET |
Restrictions/Controls & Freight Information | NSN 5340-01-526-8916
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
