NSN 5340-01-524-8134 AMP040020020, AMP-04-00-20020, 01-524-8134
Product Details | DUST AND MOISTURE SEAL BOOT
5340-01-524-8134 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: AMP040020020, AMP-04-00-20020, 5340-01-524-8134, 01-524-8134, 5340015248134, 015248134
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-524-8134 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5340-01-524-8134
Demand History | NSN 5340-01-524-8134
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-524-8134 | 2013-01-24 | 4 | US |
Cross Reference | NSN 5340-01-524-8134
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13023633 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-524-8134
Technical Data | NSN 5340-01-524-8134
| Characteristic | Specifications |
|---|---|

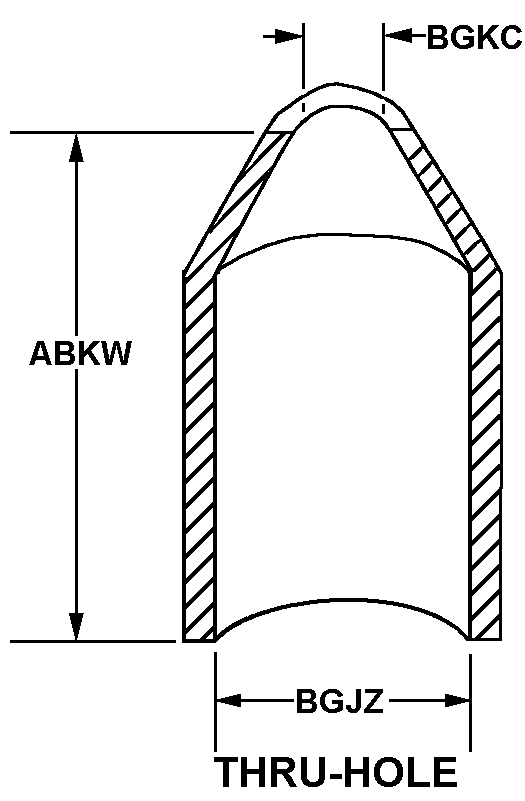

| STYLE DESIGNATOR | A52 THRU-HOLE |
| OVERALL HEIGHT | 48.2 MILLIMETERS MINIMUM AND 690.0 MILLIMETERS MAXIMUM |
| BASE INSIDE DIAMETER | 161.0 MILLIMETERS MINIMUM AND 162.5 MILLIMETERS MAXIMUM |
| OPENING INSIDE DIAMETER | 138.0 MILLIMETERS MINIMUM AND 139.5 MILLIMETERS MAXIMUM |
| MATERIAL | RUBBER BODY |
| III SUPPLEMENTARY FEATURES | ITEM IS BLACK; CORRUGATED ELASTOMERIC GAITER OF MOULDED CONSTRUCTION; USED TO PREVENT INGRESS OF ENVIRONMENTAL DEBRIS, CONTAMINANTS AND ATMOSPHERIC CORROSION OF SPRING STACK; OPER. TEMP -46 DEC C TO +70 DEG C |
| III END ITEM IDENTIFICATION | LW155 HOWITZER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GAITER |
Restrictions/Controls & Freight Information | NSN 5340-01-524-8134
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
