NSN 5340-01-521-3793 B573000465, B573-0004-65, DF3205-255 ASSY 94
Product Details | CLAMP BOLT ASSEMBLY
5340-01-521-3793 A threaded item having an eye on one end designed to accommodate a hinge pin, or a pin inserted at right angles to the shank. It must have an adjusting nut assembled on the threads. The end of the threads may be headed, or a cap nut or similar device attached to prevent disassembly of the adjusting nut. It may also have a washer, collar or retainer assembled between the nut and hinge mounted end. Includes items having a bracket or lug mounting. It is used to rigidly clamp items to a structure, instrument, or the like.
Part Alternates: B573000465, B573-0004-65, DF3205-255 ASSY 94, DF3205255ASSY94, 671-6725661 ASSY 94, 6716725661ASSY94, 671741008365, 671-7410083-65, 5340-01-521-3793, 01-521-3793, 5340015213793, 015213793
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUN 2004 | 01-521-3793 | 20271 ( BOLT ASSEMBLY, CLAMP ) |
Drawings & Photos | NSN 5340-01-521-3793
Demand History | NSN 5340-01-521-3793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-521-3793 | 2014-08-215 | 26 | DIBBS |
| 5340-01-521-3793 | 2012-08-237 | 2 | DIBBS |
| 5340-01-521-3793 | 2011-11-330 | 15 | DIBBS |
| 5340-01-521-3793 | 2011-11-325 | 14 | DIBBS |
| 5340-01-521-3793 | 2011-11-325 | 20 | DIBBS |
| 5340-01-521-3793 | 2008-03-81 | 30 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-521-3793
Technical Data | NSN 5340-01-521-3793
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY BOLT STEEL CORROSION RESISTING NUT COPPER ALLOY PIN STEEL CORROSION RESISTING WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-750 COND A FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-B-637 ALY 464 FED SPEC SINGLE MATERIAL RESPONSE BOLT QQ-B-637 ALY 464 FED SPEC SINGLE MATERIAL RESPONSE NUT |

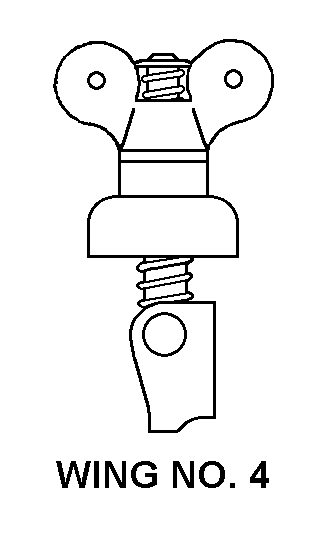

| STYLE DESIGNATOR | A4 WING NO. 4 |
| MOUNTING METHOD | SCREW |
| MOUNTING FACILITY QUANTITY | 2 |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.380 INCHES NOMINAL |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL DIAMETER | 0.310 INCHES NOMINAL |
| SPECIAL FEATURES | 2.0 INCH DIAMETER SPRING CLAMP ASSEMBLY WITH A 0.312 INCH DIAMETER X 3.250 INCH LONG HINGE PIN |
| III END ITEM IDENTIFICATION | MISCELLANEOUS PARTS; W/S: SEAWOLF CLASS SUBMARINE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CLAMP ASSY, TOOL |
