NSN 5340-01-521-2797 9242131, 92-42-131, 01-521-2797
Product Details | DOOR HANDLE
5340-01-521-2797 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 9242131, 92-42-131, 5340-01-521-2797, 01-521-2797, 5340015212797, 015212797
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JUN 2004 | 01-521-2797 | 18073 ( HANDLE, DOOR ) |

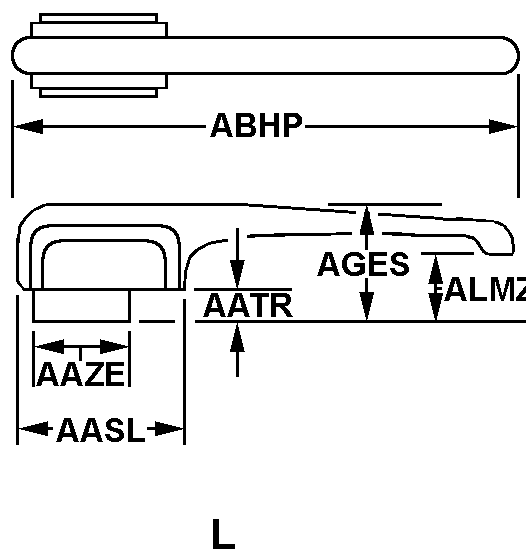

Drawings & Photos | NSN 5340-01-521-2797
Cross Reference | NSN 5340-01-521-2797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92-42-131 | 94222 | SOUTHCO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-521-2797
Technical Data | NSN 5340-01-521-2797
| Characteristic | Specifications |
|---|---|
| MATERIAL | ZINC ESCUTCHEON PLATE ZINC HANDLE STEEL AND ZINC LOCKWASHER STEEL AND ZINC NUT STEEL AND ZINC PIN STEEL AND ZINC PLATE STEEL AND ZINC SHAFT |
| SURFACE TREATMENT | CHROMATE LOCKWASHER CHROMATE NUT CHROMATE PLATE CHROMATE SHAFT |
| STYLE DESIGNATOR | C10 L |
| OVERALL LENGTH | 57.5 MILLIMETERS NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |
| SPECIAL FEATURES | GRIP RANGE 16 MM MIN 44.5 MM MAX; MATERIAL AND FINISH HANDLE AND ESCUTCHEON DIE CAST ZINC, BRIGHT CHROME PLATED; SHAFT, NUTS, MOUNTING SCREWS, RETAINER PLATE AND PAWL LOW CARBON STEEL, ZINC PLATE, CHROMATE PLUS SEALER; LOCKWASHERS SPRING STEEL, ZINC PLATE, CHROMATE PLUS SEALER; GASKET SBR RUBBER WITH FIBER, NATURAL; SPRING WASHER 300 SERIES STAINLESS STEEL, PASSIVATED; O-RING BUNA-N RUBBER, NATURAL; PIN 1008 STEEL, ZINC PLATED PLUS YELLOW CHROMATE DIP; LOCKSLIDE DIE CAST ZINC WITH CHEMICAL PROTECTIVE FILM; LOCKPLUG DIE CAST ZINC, BRIGHT STAINLESS STEEL SCALP OR BLACK POWDER COATED ON HEAD; KEYS BRASS, NICKEL PLATED |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | L HANDLE STYLE WITH LOCK PAWL/CAM ACTION LATCH |
Restrictions/Controls & Freight Information | NSN 5340-01-521-2797
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
