Product Details | BAIL HANDLE

5340-01-519-8727 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.

Part Alternates: HH8000SSPL203, HH-8000-SS-PL-203, 5340-01-519-8727, 01-519-8727, 5340015198727, 015198727

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 05 MAY 2004 01-519-8727

Drawings & Photos | NSN 5340-01-519-8727


Demand History | NSN 5340-01-519-8727

Part Number Request Date QTY Origin
HH8000SSPL203 2015-07-203 82 US

Cross Reference | NSN 5340-01-519-8727

Part Number Cage Code Manufacturer
HH-8000-SS-PL-203 5W748 CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-519-8727

Technical Data | NSN 5340-01-519-8727

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING OVERALL

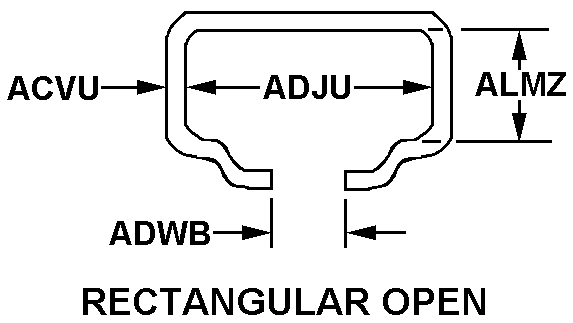

STYLE DESIGNATOR A4 RECTANGULAR OPEN
WIDTH 4.2187 INCHES NOMINAL
STOCK DIAMETER 0.312 INCHES NOMINAL
INSIDE LENGTH 3.940 INCHES NOMINAL
MOUNTING METHOD MOUNTING PLATE
MOUNTING PLATE STYLE R2 FLAT
HOLE DIAMETER 0.203 INCHES NOMINAL
PLATE WIDTH 1.9375 INCHES NOMINAL
PLATE LENGTH 4.250 INCHES NOMINAL
SPECIAL FEATURES SERIES 8000 STRAIGHT HEAVY DUTY HANDLE, GRIP IS THICKER THAN REST OF HANDLE (.75").
CRITICALITY CODE JUSTIFICATION ADEC AND ABGL
III END ITEM IDENTIFICATION VEHICLE VACUUM SERVICE UNIT, SMSE

Restrictions/Controls & Freight Information | NSN 5340-01-519-8727

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:YThe item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095142 HARDWARE HANDLES,IRON/STEEL
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 576 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-01-519-8727

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
