NSN 5340-01-519-8478 370QD16, 370QD-16, 01-519-8478
Product Details | EXTENSION DRAWER SLIDE
5340-01-519-8478 An item designed to be installed in a cabinet or rack to provide support and a sliding or rolling surface for a drawer, or the like. A portion of the slide extends with the drawer to provide support when the drawer is in the open position.
Part Alternates: 370QD16, 370QD-16, 5340-01-519-8478, 01-519-8478, 5340015198478, 015198478
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAY 2004 | 01-519-8478 | 28191 ( SLIDE, DRAWER, EXTENSION ) |
Drawings & Photos | NSN 5340-01-519-8478
Demand History | NSN 5340-01-519-8478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 370QD-16 | 2024-02-39 | 77 | DIBBS |
| 370QD-16 | 2022-03-87 | 54 | DIBBS |
| 370QD-16 | 2022-03-76 | 54 | DIBBS |
| 370QD-16 | 2022-03-76 | 54 | DIBBS |
| 370QD-16 | 2022-01-06 | 8 | DIBBS |
| 370QD-16 | 2021-11-308 | 8 | DIBBS |
| 370QD-16 | 2020-10-295 | 21 | DIBBS |
| 370QD-16 | 2020-04-99 | 40 | DIBBS |
| 370QD-16 | 2019-12-335 | 6 | DIBBS |
| 370QD-16 | 2019-09-265 | 6 | DIBBS |
| 5340-01-519-8478 | 2018-08-225 | 25 | DIBBS |
| 5340-01-519-8478 | 2018-03-64 | 7 | DIBBS |
| 5340-01-519-8478 | 2018-01-31 | 8 | DIBBS |
| 5340-01-519-8478 | 2017-07-190 | 10 | DIBBS |
| 5340-01-519-8478 | 2014-08-215 | 10 | DIBBS |
| 5340-01-519-8478 | 2013-06-181 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-519-8478
Related Products | NSN 5340-01-519-8478
Technical Data | NSN 5340-01-519-8478
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SLIDE |

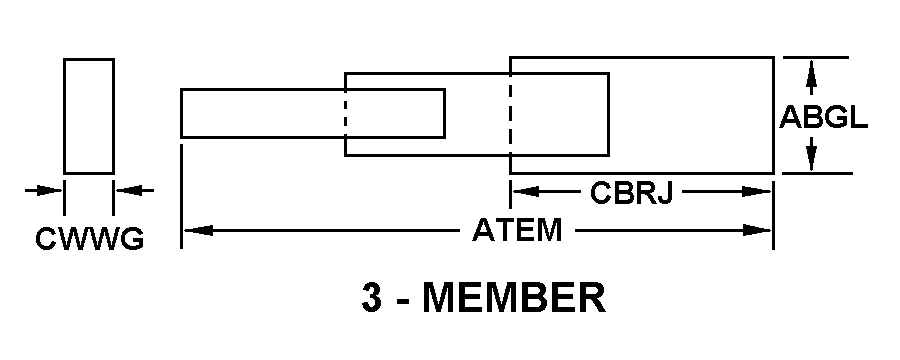

| STYLE DESIGNATOR | L9 3-MEMBER |
| WIDTH | 2.000 INCHES MAXIMUM |
| EXTENDED LENGTH | 33.000 INCHES MAXIMUM |
| CLOSED LENGTH | 16.000 INCHES MAXIMUM |
| HEIGHT | 0.500 INCHES MAXIMUM |
| MOUNTING METHOD | SCREW |
| SIDE FOR WHICH DESIGNED | LEFT HAND OR RIGHT HAND |
| SPECIAL FEATURES | SLIDE ID PROVIDED WITH LOCK OPEN FEATURE AND QUICK DISCONNECT; LOAD RATING: 160LBS; SLIDE, RETRACTABLE (REQUESTED NAME) |
| III END ITEM IDENTIFICATION | OL-649(V)2/UYQ-86, DATA PROCESSING |
Restrictions/Controls & Freight Information | NSN 5340-01-519-8478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-519-8478
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
