NSN 5340-01-514-0118 16696-5.000A-5, 166965000A5, 01-514-0118
Product Details | LUGGAGE HANDLE
5340-01-514-0118 An item of various shapes, usually U-shaped. It may be flexible. It is designed to be mounted to a piece of luggage to provide facilities for lifting, carrying and the like.
Part Alternates: 16696-5.000A-5, 166965000A5, 5340-01-514-0118, 01-514-0118, 5340015140118, 015140118
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 2003 | 01-514-0118 | 04462 ( HANDLE, LUGGAGE ) |

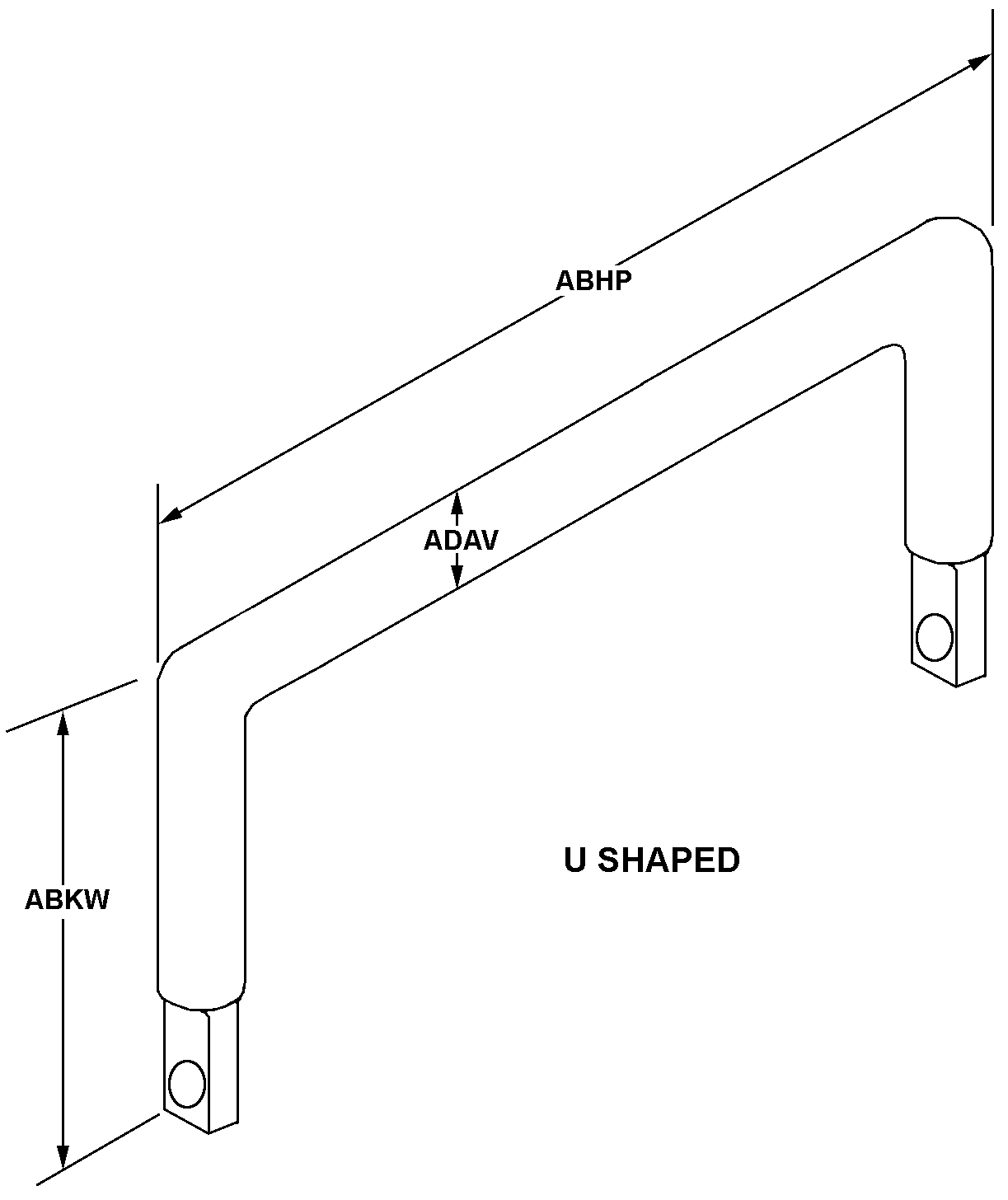

Drawings & Photos | NSN 5340-01-514-0118
Demand History | NSN 5340-01-514-0118
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16696-5.000A-5 | 2020-12-348 | 13 | DIBBS |
Cross Reference | NSN 5340-01-514-0118
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16696-5.000A-5 | 51506 | ACCURATE SCREWMACHINE CORPORATION DBA A S M |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-514-0118
Related Products | NSN 5340-01-514-0118
Technical Data | NSN 5340-01-514-0118
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM HANDLE |
| STYLE DESIGNATOR | G5 U |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| GRIPPING SURFACE CONDITION | SMOOTH |
| SPECIAL FEATURES | FROM CENTER TO CENTER OF THIS HANDLE IS 5.000 INCHES |
| III END ITEM IDENTIFICATION | ITA 4 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HANDLE FOLDING |
Restrictions/Controls & Freight Information | NSN 5340-01-514-0118
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-514-0118
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
