Product Details | ACCESS COVER

5340-01-509-1472 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial

Part Alternates: 6395194-01, 5340-01-509-1472, 01-509-1472, 5340015091472, 639519401, 015091472

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 13 JUN 2003 01-509-1472

Drawings & Photos | NSN 5340-01-509-1472


Cross Reference | NSN 5340-01-509-1472

Part Number Cage Code Manufacturer
6395194-01 31442 NORTHROP GRUMMAN SYSTEMS CORPORATION
6395194-01 53711 NAVAL SEA SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-509-1472

Technical Data | NSN 5340-01-509-1472

Characteristic Specifications

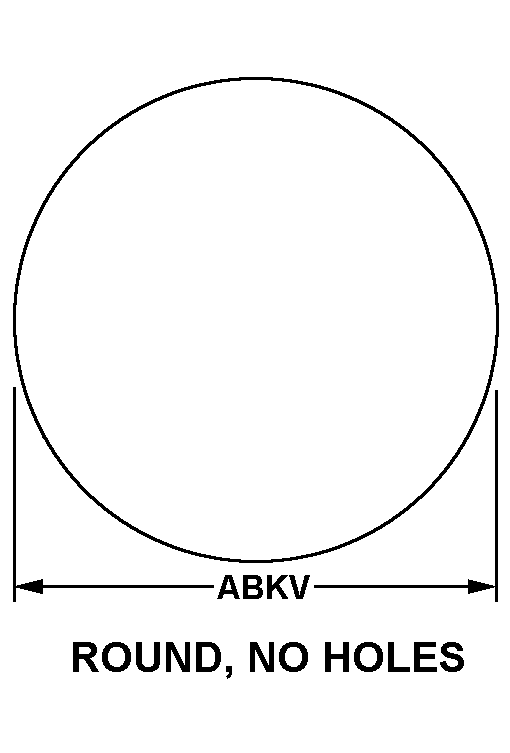

PERIPHERAL SHAPE STYLE 77 ROUND, NO HOLES
OUTSIDE DIAMETER 2.850 INCHES NOMINAL

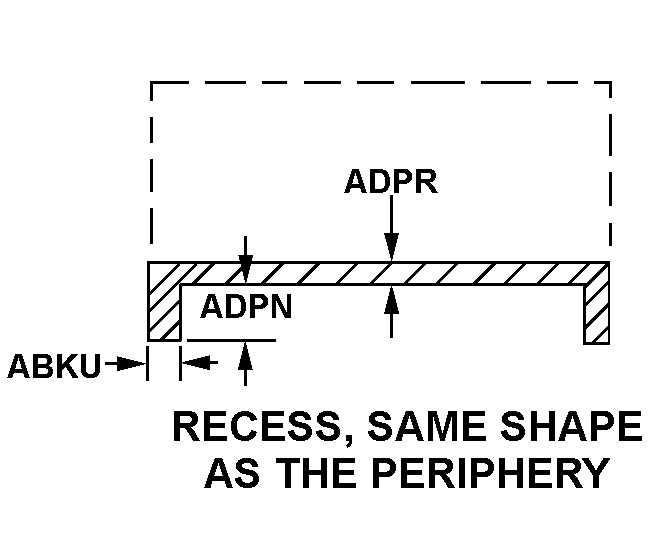

CROSS-SECTIONAL SHAPE STYLE 9 RECESS, SAME SHAPE AS THE PERIPHERY
FLANGE THICKNESS 0.100 INCHES NOMINAL
FIRST RECESS INSIDE HEIGHT 3.150 INCHES NOMINAL
BODY THICKNESS 0.100 INCHES NOMINAL
MATERIAL ALUMINUM ALLOY 6061 AND RUBBER SYNTHETIC
MATERIAL DOCUMENT AND CLASSIFICATION ASTM B21, T651 ASSN STD 1ST MATERIAL RESPONSE AND ASTM D2000 2BC 415 A14 B14 C12 EO14 F17 ASSN STD 2ND MATERIAL RESPONSE
SURFACE TREATMENT ANODIZE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625, TYPE II, CLASS 2, BLACK MIL SPEC SINGLE TREATMENT RESPONSE
SECURING DEVICE TYPE SPECIAL
MOUNTING OPENING SHAPE STYLE 1 UNTHREADED HOLE
HOLE DIAMETER 0.248 INCHES MINIMUM AND 0.255 INCHES MAXIMUM
SPECIAL FEATURES HAS 2 HOLES CENTERED 1.175 FROM BOTTOM/OPEN EDGE, EQUALLY SPACED AROUND CIRCUMFERENCE; HAS NEOPRENE ANTIVIBRATION PADS: ONE 1.00X1.00X0.75 CENTERED ON UNDERSIDE OF TOP AND TWO 2.00X1.00X0.125 CENTERED LENGTHWISE ABOVE HOLES WITH BOTTOM EDGES 1.50 FROM BOTTOM EDGE OF COVER
END ITEM IDENTIFICATION DRIVE, ASSEMBLY,S
