NSN 5340-01-506-8587 6512E17FN90, R812, 01-506-8587
Product Details | PIPE HANGER
5340-01-506-8587 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Part Alternates: 6512E17FN90, R812, 5340-01-506-8587, 01-506-8587, 5340015068587, 015068587
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 APR 2003 | 01-506-8587 | 42764 ( HANGER, PIPE ) |
Drawings & Photos | NSN 5340-01-506-8587
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-506-8587
Technical Data | NSN 5340-01-506-8587
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

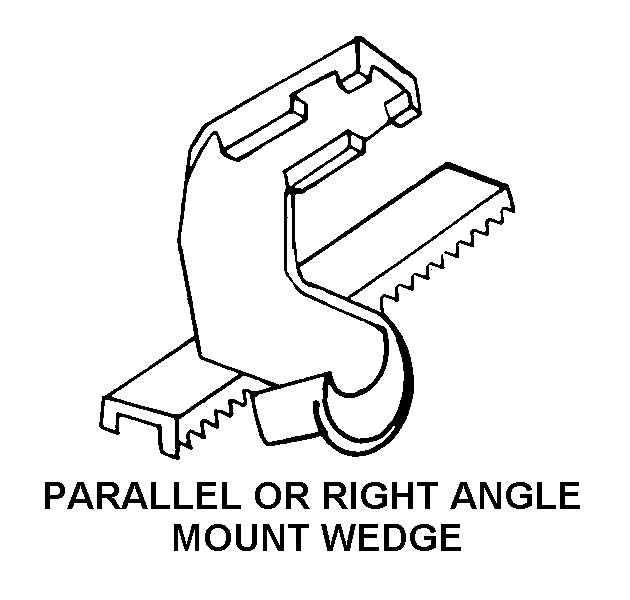

| STYLE DESIGNATOR | 3G PARALLEL OR RIGHT ANGLE MOUNT WEDGE |
| SUPPORTING STRUCTURAL MEMBER FLANGE THICKNESS RANGE | 0.500 TO 0.505 INCHES |
| SUPPORTED ITEM AND QUANTITY | 6 CONDUIT OR 6 PIPE OR 6 TUBE |
| PIPE ACCOMMODATION DIAMETER | 1.000 INCHES NOMINAL |
| TUBE ACCOMMODATION OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | HANGER, BULKHEAD ASSEMBLY; L SHAPE, 1 1/2"W X 8"L (VERTICAL), WITH 13/16" INDENTION; 1 3/16"W X 11/16"L SEPERATION HOLES; 1 1/2"W X 1 21/32"L (HORIZONTAL), WITH 1 17/64" INDENTION; 13/32" MOUNTING HOLES |
| III END ITEM IDENTIFICATION | HARDWARE; W/S NUCLEAR REACTOR BOUNDRY AREA |
Restrictions/Controls & Freight Information | NSN 5340-01-506-8587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-506-8587
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
