NSN 5340-01-506-4215 93016K4108, 01-506-4215, 015064215
Product Details | ACCESS COVER
5340-01-506-4215 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 93016K4108, 5340-01-506-4215, 01-506-4215, 5340015064215, 015064215
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAR 2003 | 01-506-4215 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-01-506-4215
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-506-4215
Technical Data | NSN 5340-01-506-4215
| Characteristic | Specifications |
|---|---|

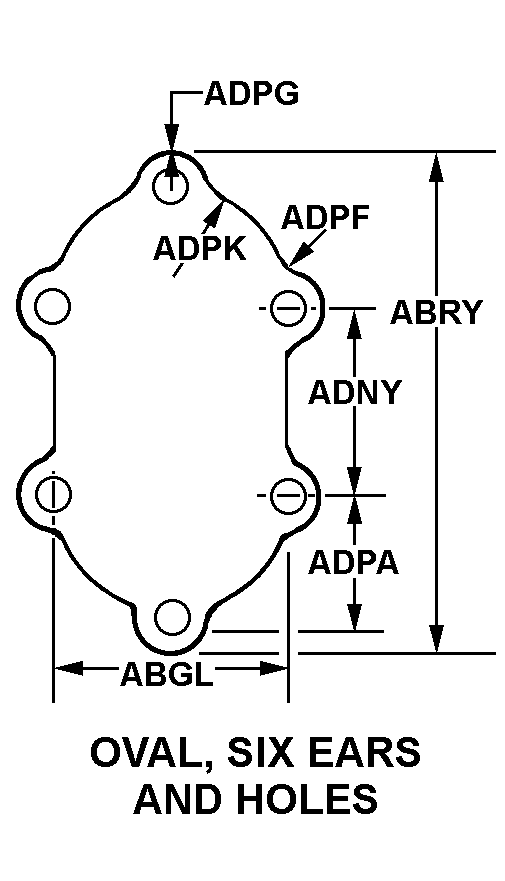

| PERIPHERAL SHAPE STYLE | 73 OVAL, SIX EARS AND HOLES |
| INVERTED RADIUS | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| EAR RADIUS | 0.590 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| CORNER HOLE CENTERLINE RADIUS | 1.850 INCHES MINIMUM AND 1.910 INCHES MAXIMUM |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 2.320 INCHES MINIMUM AND 2.440 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | 5 OBLONG RECESS |
| FLANGE THICKNESS | 0.590 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| BODY THICKNESS | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.530 INCHES MINIMUM AND 0.590 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | NEXT ASSY 93016C4100; END ITEM IS FUEL PUMP, 600 GPM (FU604G) 4930-01-392-7579 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COVER PLATE |
| (NON-CORE DATA) SUPPLEMENTARY FEATURES | MATERIAL IS ALUMINUM ALLOY,ASTM B26, ALLOY SG70A, CONDITION T6, SAE 323 |
| MANUFACTURERS CODE | 25567 |
| DESIGN CONTROL REFERENCE | 93016K4108 |
