NSN 5340-01-505-8764 16677A00, 16677A-00, 01-505-8764
Product Details | BOW HANDLE
5340-01-505-8764 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: 16677A00, 16677A-00, 5340-01-505-8764, 01-505-8764, 5340015058764, 015058764
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 2003 | 01-505-8764 | 20350 ( HANDLE, BOW ) |
Drawings & Photos | NSN 5340-01-505-8764
Cross Reference | NSN 5340-01-505-8764
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16677A-00 | S0123 | ELBIT SYSTEMS LTD. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-505-8764
Related Products | NSN 5340-01-505-8764
Technical Data | NSN 5340-01-505-8764
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE 1,CLASS 1 OR 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |

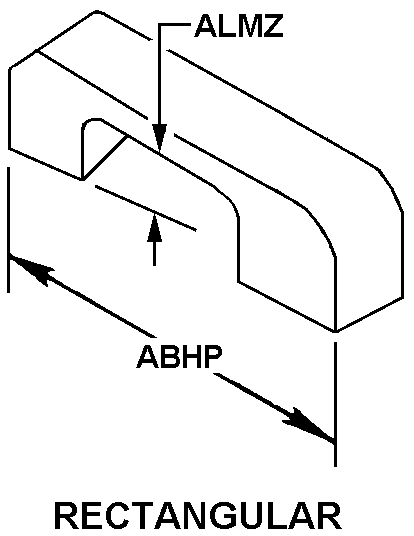

| STYLE DESIGNATOR | B3 RECTANGULAR |
| OVERALL LENGTH | 98.500 MILLIMETERS NOMINAL |
| HANDLE CLEARANCE | 22.200 MILLIMETERS NOMINAL |
| MOUNTING FACILITY QUANTITY | 2 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 90.000 MILLIMETERS NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| III END ITEM IDENTIFICATION | JHMCS F-15LR |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HANDLE |
Restrictions/Controls & Freight Information | NSN 5340-01-505-8764
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
