NSN 5340-01-502-4553 MS917617, MS9176-17, 01-502-4553
Product Details | EXPANSION PLUG
5340-01-502-4553 A relatively thin metallic item, having a concave or cupped contour, designed to effect its own seal by compression against the circumference of a hole. It is used as a blowout plug in boilers, engines, and the like to relieve the pressure created by the expansion of fluids caused by heat or freezing.
Part Alternates: MS917617, MS9176-17, 5340-01-502-4553, 01-502-4553, 5340015024553, 015024553
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 NOV 2002 | 01-502-4553 | 03797 ( PLUG, EXPANSION ) |

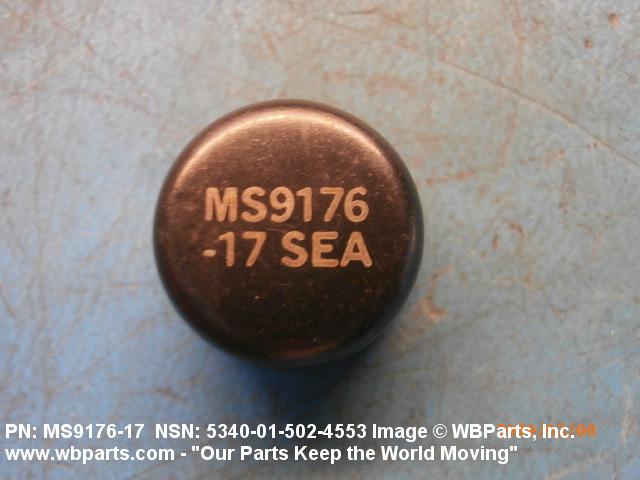

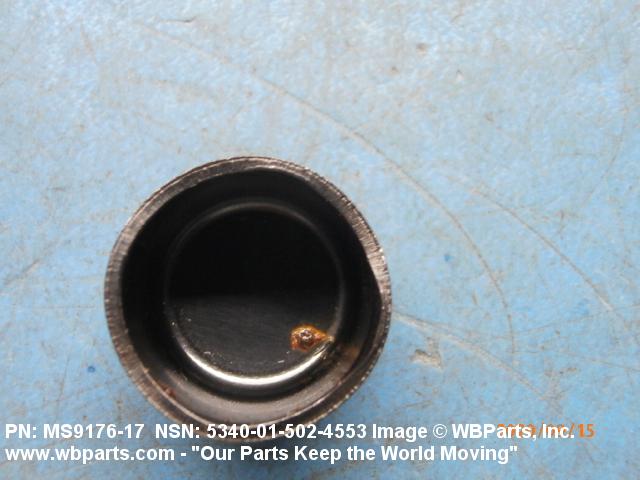

Drawings & Photos | NSN 5340-01-502-4553
Demand History | NSN 5340-01-502-4553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS917617 | 2023-11-305 | 100 | United States |
| MS917617 | 2023-02-54 | 50 | United States |
| MS917617 | 2021-01-27 | 7 | United States |
| MS917617 | 2020-08-240 | 20 | United States |
| MS917617 | 2020-08-240 | 100 | United States |
| 5340-01-502-4553 | 2019-03-63 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-502-4553
Technical Data | NSN 5340-01-502-4553
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5040 |
| SURFACE TREATMENT | OXIDE |
| STYLE DESIGNATOR | B3 CUP |

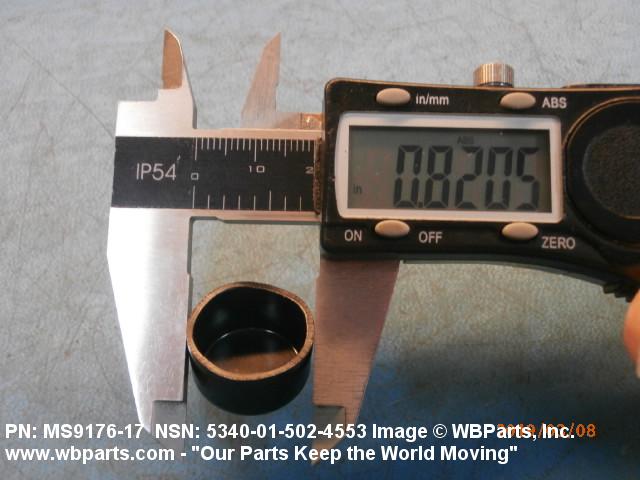

| OUTSIDE DIAMETER | 0.818 INCHES MINIMUM AND 0.821 INCHES MAXIMUM |

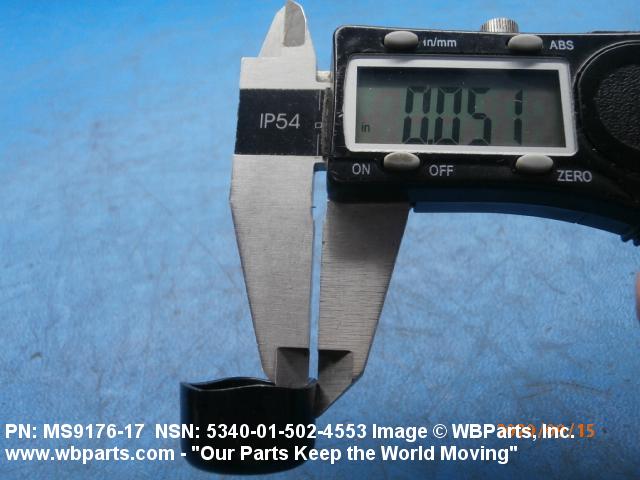

| MATERIAL THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| HEIGHT | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| SPECIAL FEATURES | SURFACE ROUGHNESS AS 291 UNLESS OTHERWISE SPECIFIED SURFACES TO BE 125 MICROINCHES; BREAK SHARP EDGES 0.003-0.015 |
| III UNPACKAGED UNIT WEIGHT | 2.250 POUNDS |
| III END ITEM IDENTIFICATION | AE1107, T406-AD-400, AE2100A, C AND AE2100D2,D3, J ENGINES |
| III SUPPLEMENTARY FEATURES | CONTROLLING AGENCY NOMENCLATURE PLUG, EXPANSION-TAPERED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9176-17 |
Restrictions/Controls & Freight Information | NSN 5340-01-502-4553
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
