NSN 5340-01-497-1627 1406A72, 01-497-1627, 014971627
Product Details | MORTISE LATCH SET
5340-01-497-1627 A latch set in which the latch is designed to be fitted into the edge of a door, drawer, and the like.
Part Alternates: 1406A72, 5340-01-497-1627, 01-497-1627, 5340014971627, 014971627
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 2002 | 01-497-1627 | 06620 ( LATCH SET, MORTISE ) |
Drawings & Photos | NSN 5340-01-497-1627
Demand History | NSN 5340-01-497-1627
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1406A72 | 2020-06-155 | 10 | DIBBS |
| 1406A72 | 2020-05-140 | 1 | DIBBS |
| 1406A72 | 2020-04-103 | 1 | DIBBS |
| 1406A72 | 2019-12-342 | 1 | DIBBS |
| 1406A72 | 2019-11-316 | 1 | DIBBS |
| 1406A72 | 2019-09-260 | 1 | DIBBS |
| 5340-01-497-1627 | 2018-11-333 | 2 | DIBBS |
Cross Reference | NSN 5340-01-497-1627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1406A72 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-497-1627
Related Products | NSN 5340-01-497-1627
Technical Data | NSN 5340-01-497-1627
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING LATCH BAR OVERALL |

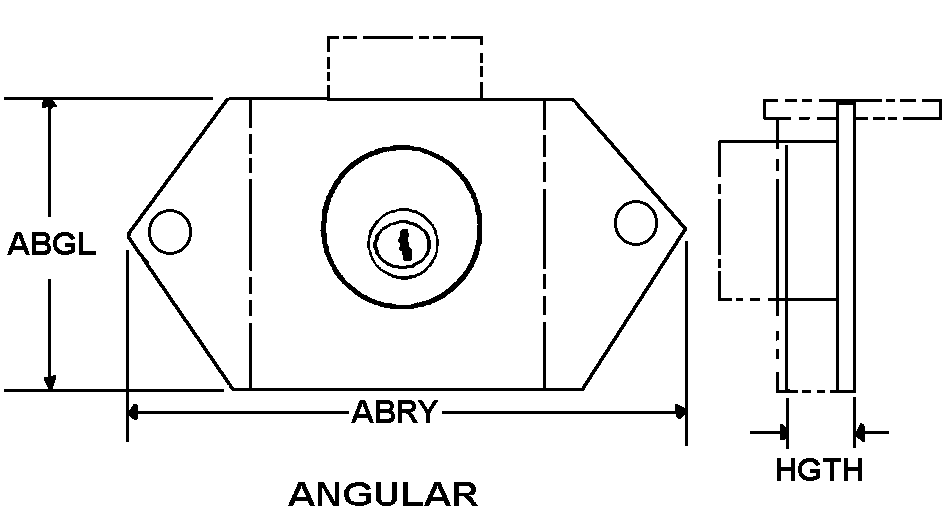

| STYLE DESIGNATOR | P6 ANGULAR |
| WIDTH | 2.750 INCHES NOMINAL |
| LENGTH | 4.9375 INCHES NOMINAL |
| HEIGHT | 0.7656 INCHES NOMINAL |
| THICKNESS | 0.7656 INCHES NOMINAL OVERALL |
| ACTION TYPE | GRAVITY |
| OPERATION METHOD | HANDLE LATCH BAR |
| SPECIAL FEATURES | LIFT HANDLE AND TURN 180 DEGREES TO OPEN AND CLOSE LATCH; SCREWS NOT INCLUDED |
| III END ITEM IDENTIFICATION | 7MR1B |
Restrictions/Controls & Freight Information | NSN 5340-01-497-1627
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-497-1627
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
